To ensure correct function and safety, please read all instructions before using the product and keep all instructions for future reference.
TECHNICAL DATA
Order Code
FAN7030
Supply
220-240V~50Hz
Duct Size
100mm
Power
30W
Max. Fan Pressure
93 Pa
Fan Performance
49 l/s, 175m
Specifi c Fan Power
0.61 W/l/s
Sound Level
38 dB(A)
Note: Airfl ow data is in accordance with internationally recognised testing standards. Airfl ow may vary according to style of fascia used.
DIMENSIONS
Order Code
FAN7030
FAN7031
FAN7032
FAN7033
FAN7034
CONTOUR

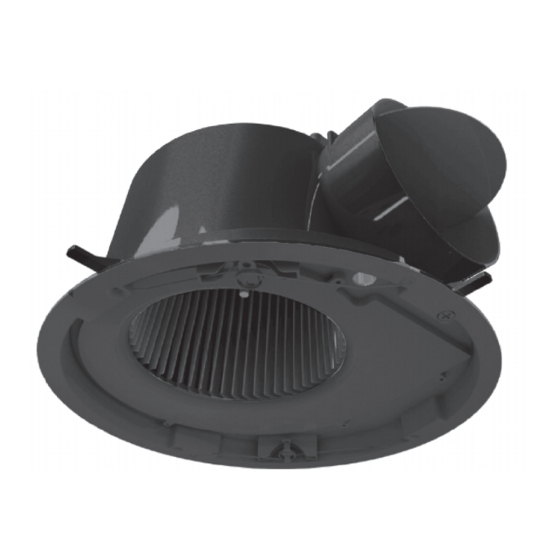

Thank you for purchasing this quality exhaust fan.
When using electrical appliances, basic safety precautions should always
be followed to reduce the risk of fi re, electrical shock and personal injury.
FAN7031
220-240V~50Hz
150mm
45W
147 Pa
3
/hr
77 l/s, 276m
0.58 W/l/s
40 dB(A)
Description
Toilet Fan
Bathroom Fan
Kitchen & Laundry Fan
High Steam Area Fan
Description
Toilet Fan
Bathroom Fan
Kitchen & Laundry Fan
High Steam Area Fan (with round fascia)
High Steam Area Fan (with square fascia)
FAN7032
220-240V~50Hz
150mm
50W
210 Pa
3
3
/hr
105 l/s, 378m
/hr
0.48 W/l/s
42 dB(A)
A
B cut out Ø
272mm
Ø240mm
326mm
Ø300mm
328mm
Ø300mm
328mm
Ø300mm
Fans, Fascia and
Duct Connection
Order Code
FAN7030
FAN7031
FAN7032
FAN7033
FAN7034
FAN7033
FAN7034
220-240V~50Hz
220-240V~50Hz
150mm
150mm
106W
106W
220 Pa
220 Pa
3
153 l/s, 550m
/hr
153 l/s, 550m
0.69 W/l/s
0.69 W/l/s
42 dB(A)
42 dB(A)
C
D
170mm
Ø100mm
197mm
Ø150mm
197mm
Ø150mm
195mm
Ø150mm
Confi gurable
Solution
3
/hr
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Manrose Contour Series
Summary of Contents for Manrose Contour Series
- Page 1 Confi gurable CONTOUR Fans, Fascia and Duct Connection Solution Description Order Code Toilet Fan FAN7030 Bathroom Fan FAN7031 Kitchen & Laundry Fan FAN7032 FAN7033 High Steam Area Fan (with round fascia) High Steam Area Fan (with square fascia) FAN7034 Thank you for purchasing this quality exhaust fan. To ensure correct function and safety, please read all instructions before using the product and keep all instructions for future reference.
- Page 2 Confi gurable CONTOUR Fascia and Duct Connection Solution FAN INSTALLATION AND ELECTRICAL CONNECTION MUST BE CARRIED OUT BY A REGISTERED ELECTRICIAN IMPORTANT This fan unit must be installed by a registered electrician and its installation and connection to the power supply must comply with all current Australian and New Zealand electrical and building regulations including AS/NZS3000:2017, or latest edition thereof.
-
Page 3: Installation
Confi gurable CONTOUR Fascia and Duct Connection Solution INSTALLATION Note: A means for disconnection must be incorporated in the fi xed wiring in accordance with the wiring rules. Check the fan is free to rotate. Cut the hole for the fan using the template provided, making sure the area behind the intended position is free from impediments. Product is supplied with lead and plug Plug into a socket outlet and secure fan body using the three (or four) swing fi... - Page 4 Confi gurable CONTOUR Fascia and Duct Connection Solution WHEN INSTALLING WITH AN LED FASCIA Remove the double-sided tape and attach the LED driver to the fan body. (See diag. 1) Plug the Fan and LED driver into a socket outlet. Knock out the stamped tab in the motor body and feed the LED output connector through. (See diag.
-
Page 5: Maintenance Cautions
Distributed by Simx Limited PO Box 14347, Panmure, Auckland 1741, New Zealand w www.manrose.co.nz w www.manrose.com.au PUB1512 1906... - Page 6 Simx Warranty Information In this warranty: We means Simx; You means the consumer of the Goods Supplier means the authorised distributor or retailer that sold you the Goods in New Zealand or Australia; Goods means the Simx product accompanied by this warranty and purchased in New Zealand or Australia.
