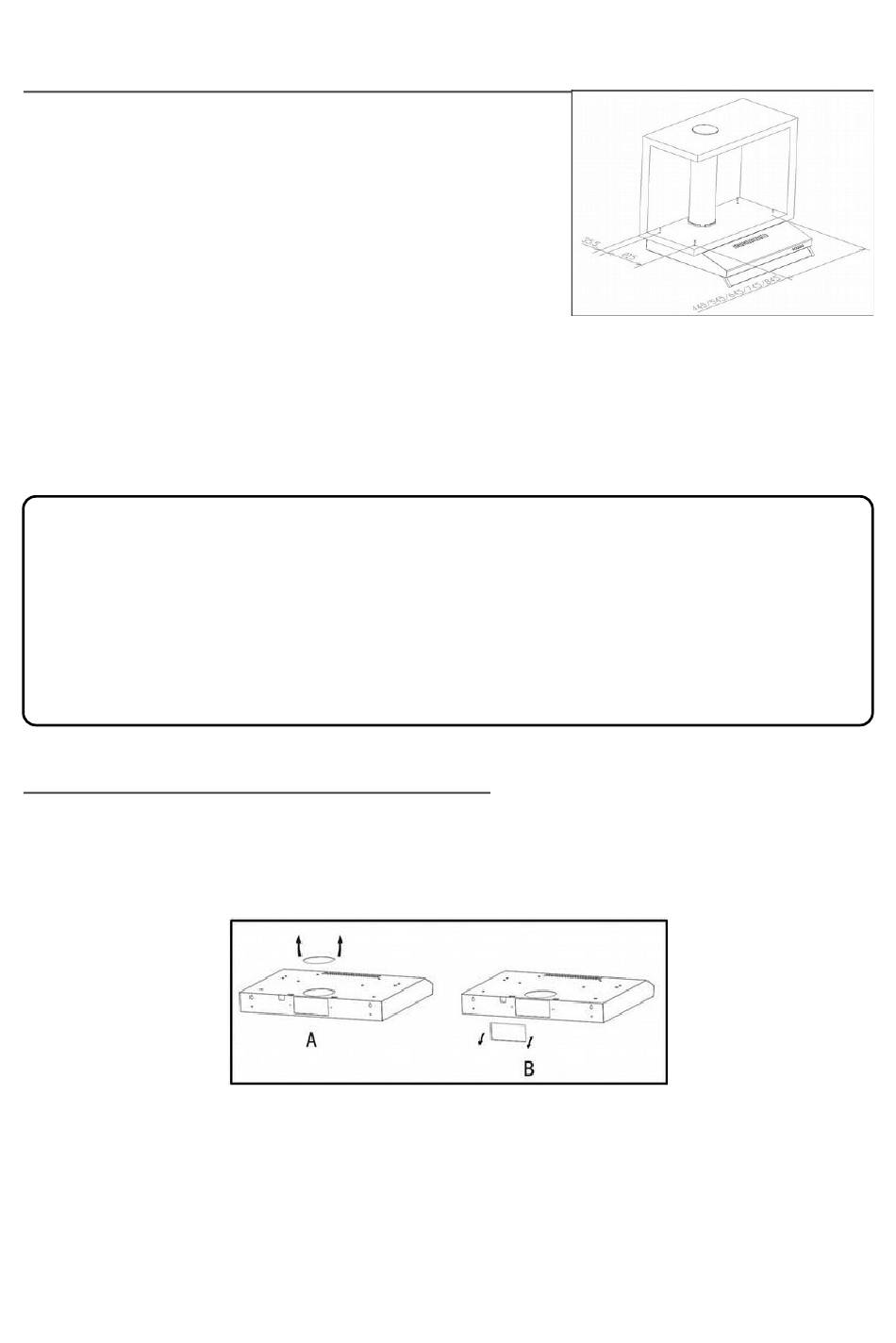

Installing on the bottom of the kitchen set cabinet
1. Place the sucker cap on the bottom of the
kitchen set cabinet in accordance with the
planned position precisely.
2. Make signs at the bottom of the kitchen set
cabinet for flexible pipe holes and then make
the holes if the cooker hood will use the
ducting/ exhaust system.
3. Drill 4 holes with diameter of 6 mm at the appropriate position. Attach the
spigot/ flange and then attach the cooker hood and fasten with 4 screws at the
position that has been prepared.
4. Attach the controller board on the bottom of the cooker hood to prevent the
gap between the cooker hood and the kitchen set.
NOTE
•
Pipe extension is an additional accessory, not included in the
unit.
•
Remove the protective layer before mounting.
•
There are 2 methods of ventilation, that is: 'horizontal ventilation'
and 'vertical ventilation'.
Please note when doing installation
Open the cover of the outlet at its top to apply vertical ventilation system. See Fig.
A. Meanwhile, applying the horizontal ventilation system can be done by removing
the cover on the outgoing airways on the back of the unit. See Pic.B.
Rectangular outlet for horizontal ventilation is not included.
