Oricom CU875 User Manual

1.0 Getting started

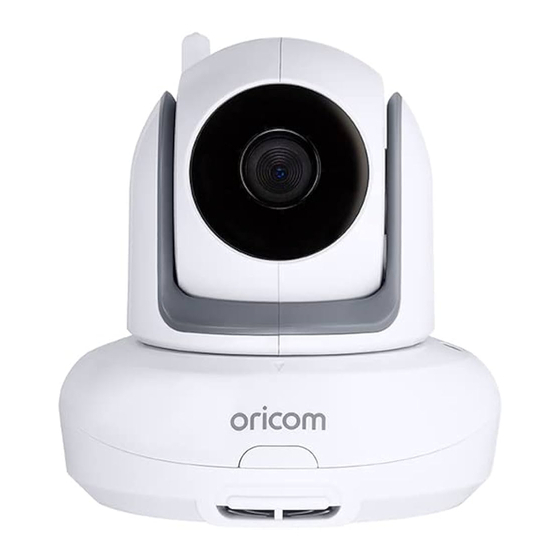

The CU875 baby unit (camera) suits SC875 5" Touchscreen Video Baby Monitor. Up to 4 baby units (cameras) can be registered to
one parent unit.

2.0 Registering the Baby Unit (Camera)

FOR ALL OTHER INSTRUCTIONS, PLEASE REFER TO YOUR SC875 USER GUIDE.

1.1 Power supply

a) Connect the small plug of the power adaptor to the baby unit and
the other end to the electrical mains power outlet.
b) To switch on the baby unit, slide the power switch to the ON
position. The power LED will light up.
c) To switch off the baby unit, slide the power switch to the OFF
position.
Use only the AC adaptor supplied with the product as other
power adaptors could damage the product. This product is
designed for indoor use only.

1.2 Connecting and aligning the baby unit

Position the baby unit with a minimum distance of 1m to other electronic
devices, otherwise there is a risk of mutual disturbance. Point the upper
section of the baby unit towards the baby or object you want to monitor.
Check that the baby or object is suitably displayed on the parent unit
screen. Ensure the antenna is extended vertically for optimum range.

Pairing

This button on the base of the camera is used
to put the camera into pair mode. You can
select the camera number when pairing. Up to
4 Cameras may be paired.
1. Power on parent unit and camera unit.
The power LED for the parent unit should be ON.
Touch the live view screen on the parent unit, this will
2.
activate the settings, volume, pan tilt and lullabies icons.
3. Press the [ ] button on the monitor.
4. Select [ ] icon.
5. The display will show the camera slots, this includes
paired cameras and unused slots. You can remove
paired cameras or add a camera to an unused slot.
When you select the slot, you will be prompted to press
the pair button on the camera, you have a 30 second
countdown to do this.
NOTE:
Pairing a camera in a paired slot will overwrite the old camera
registration.
CU875
User Guide
Ref: 130220
