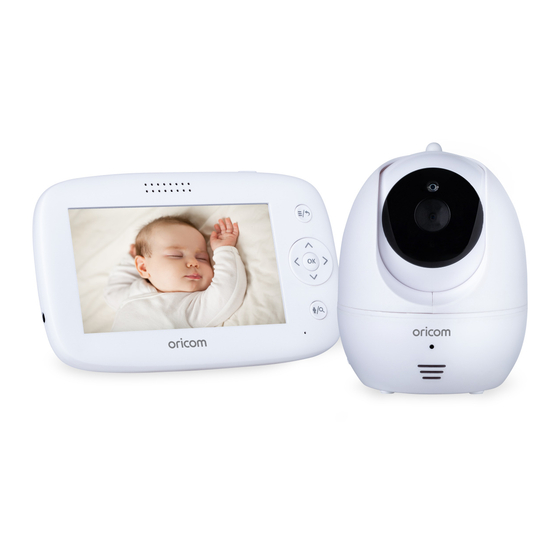

- Page 1 Video Baby Monitor Secure745 User Guide KEEP THIS USER GUIDE FOR FUTURE REFERENCE Always retain your proof of purchase in case of warranty service. AUSTRALIA: www.oricom.com.au OR020268 - SC745 User Guide_01-22-21.indd 1 2021/1/22 9:36:08...
- Page 2 SETTINGS DEFAULT SETTINGS CUSTOMER SUPPORT TROUBLESHOOTING EXPRESS WARRANTY Need Help? If you need assistance setting up or using your Oricom product now or in the future, call Oricom Support. Australia 02 4574 8888 www.oricom.com.au Mon-Fri 8am – 6pm AEST New Zealand 0800 67 42 66 www.oricom.co.nz...
- Page 3 • It is very important that you read the User Guide carefully as it contains detailed information you will need to get the most from your Oricom baby monitor. If you have any issues setting up or using your Oricom baby monitor, please call our Customer Support team.
- Page 4 SAFETY INFORMATION • Never cover the parent or baby units with clothes, towels, blankets or any other item. Never use or place your parent or baby unit in or near moisture or water (e.g. near bath or pool). Immersing in water could cause electric shock and even death.
- Page 5 • If you believe the battery is damaged, remove product from the charger and stop using the product. Contact Oricom for assistance. Never use a damaged battery. OR020268 - SC745 User Guide_01-22-21.indd 3 2021/1/22 9:36:08...
- Page 6 SAFETY INFORMATION Disposal Always dispose of your products at the end of their life in accordance with your local waste disposal requirements. Packaging materials including cardboard and paper packaging, should be recycled in accordance with your local council waste regulations. OR020268 - SC745 User Guide_01-22-21.indd 4 2021/1/22 9:36:09...
- Page 7 OVERVIEW OF FUNCTIONAL COMPONENT POSITIONS Parent Unit 1 MENU AND BACK 2 UP / DOWN 3 OK 4 LEFT/RIGHT BUTTONS 5 TALK AND ZOOM 6 CHARGING PORT VOLUME + / - Camera Unit 1 POWER PORT 2 ON/OFF BUTTON 3 PAIR BUTTON OR020268 - SC745 User Guide_01-22-21.indd 5 2021/1/22 9:36:09...
- Page 8 1 Baby unit (camera) 1 Parent unit 1 Li-ion Polymer rechargeable battery pack for the parent unit 2 AC Adaptors 1 User guide If any items are missing, contact Oricom customer support. OR020268 - SC745 User Guide_01-22-21.indd 6 2021/1/22 9:36:09...
- Page 9 SETTING UP YOUR VIDEO BABY MONITOR 1. Setting up your Video Baby Monitor 1.1. Connecting the power adaptor to the baby unit • Connect the small plug of the power adaptor to the rear of the Baby Unit. The other end will plug into the power socket.
- Page 10 SETTING UP YOUR VIDEO BABY MONITOR 1.2 Aligning the baby unit To get the best performance, place your baby unit between one and two metres away from your baby. Point the baby unit towards the baby or object you want to monitor. Check that the baby or object is suitably displayed on the parent unit screen.
- Page 11 SETTING UP YOUR VIDEO BABY MONITOR Desk stand In-use time and battery charging Depending on the usage, the parent unit will work for up to 8 hours on a fully charged battery with power save turned ON. When the battery charge becomes low on the parent unit, the battery icon will turn red.
- Page 12 When the in-use time becomes noticeably shorter than normal, it is time to purchase a new battery pack. How to purchase spare parts You can purchase battery packs and extra camera units from www.oricom.com.au OR020268 - SC745 User Guide_01-22-21.indd 10 2021/1/22 9:36:11...
- Page 13 BASIC OPERATION OF THE KEYS 2. Basic operation of the keys PARENT UNIT Press and hold to switch the ON/OFF button Parent Unit ON/OFF. Press to turn on the video screen On side of parent unit used to + - buttons increase or reduce the audio volume on the parent unit Press to tilt the camera upward...
- Page 14 MENU OPTIONS AND FUNCTIONS 3. MENU options and functions Camera Press MENU button. 1) Select Camera icon. Press “OK’’ button to confirm. 2) Press add camera (SC745 supports up to 4 cameras). Press OK button to confirm. 3) Press the “Pair’’ button on the camera unit to pair within 30 seconds.
- Page 15 MENU OPTIONS AND FUNCTIONS OR020268 - SC745 User Guide_01-22-21.indd 13 2021/1/22 9:36:11...
- Page 16 MENU OPTIONS AND FUNCTIONS View Press MENU button: 1) Select the view icon for multiple camera options. Press “OK’’ button to confirm. 2) Choose camera 1/camera 2/camera 3/camera 4 or choose to scan between the connected cameras. Note: Display will show selected camera. OR020268 - SC745 User Guide_01-22-21.indd 14 2021/1/22 9:36:12...
- Page 17 MENU OPTIONS AND FUNCTIONS Lullabies Press MENU button: 1) Select the Lullabies icon. Press “OK’’ button to confirm. 2) Choose the lullaby to play from lullabies list. It will automatically cycle once you choose a lullaby. Note: If you select ALL, it will automatically repeat all of the lullabies.
- Page 18 MENU OPTIONS AND FUNCTIONS OR020268 - SC745 User Guide_01-22-21.indd 16 2021/1/22 9:36:12...
- Page 19 MENU OPTIONS AND FUNCTIONS Feeding Timer Press MENU button 1) Select Feeding Timer icon. Press “OK’’ button to confirm. 2) Choose your preferred feeding reminder time, once selected a countdown will appear when monitor is in viewing mode. When the predefined time has elapsed, monitor will alarm for 5 seconds.
- Page 20 MENU OPTIONS AND FUNCTIONS With this feature turned on, you will hear an alarm noise when the baby unit detects sound or noise. OR020268 - SC745 User Guide_01-22-21.indd 18 2021/1/22 9:36:13...
- Page 21 SETTINGS Note: The VOX function is not recommended when in Camera Scan mode. While playing a lullaby, VOX may be triggered by the audio level. 4. Settings OR020268 - SC745 User Guide_01-22-21.indd 19 2021/1/22 9:36:14...
- Page 22 SETTINGS 4.1 Language Setting User can select the language to display in the settings menu. OR020268 - SC745 User Guide_01-22-21.indd 20 2021/1/22 9:36:14...
- Page 23 SETTINGS 4.2 Brightness Setting You can select the brightness level in the settings menu. OR020268 - SC745 User Guide_01-22-21.indd 21 2021/1/22 9:36:15...
- Page 24 SETTINGS 4.3 Date & Time Setting You can set the device date and time in the settings menu. OR020268 - SC745 User Guide_01-22-21.indd 22 2021/1/22 9:36:15...
- Page 25 SETTINGS 4.4 High-low Temperature alarm setting You can adjust the highest and lowest temperature limitation setting. When room temperature exceeds the limitation setting, parent unit will alarm automatically. OR020268 - SC745 User Guide_01-22-21.indd 23 2021/1/22 9:36:16...
- Page 26 SETTINGS 4.5 Temperature °C/°F switch You can switch between °C & °F easily by accessing the Temp °C/°F setting. OR020268 - SC745 User Guide_01-22-21.indd 24 2021/1/22 9:36:16...
- Page 27 SETTINGS 4.6 Frequency You can switch between 60Hz & 50Hz in the Frequency setting. OR020268 - SC745 User Guide_01-22-21.indd 25 2021/1/22 9:36:16...
- Page 28 SETTINGS 4.7 Motion Detecting This feature will sound an audible alarm when motion is detected by the baby unit. You have the option to turn on an audible alarm alert by selecting "Alert Audible" or display alert only by selecting "ON". Note: When motion detection is turned on, zoom function is disabled.
- Page 29 DEFAULT SETTINGS 4.8 Default Settings You can restore your monitor to its default factory settings with this option. Please note: you will lose all linked cameras and settings. OR020268 - SC745 User Guide_01-22-21.indd 27 2021/1/22 9:36:17...
- Page 30 SETTINGS 4.9 Power saving By turning this function ON, the monitor will enter into power saving mode automatically within 10 seconds. When power save mode is activated, the display will turn off but audio will still be available. The screen will be in sleep mode and will only wake by briefly pressing the power button.
- Page 31 SETTINGS OR020268 - SC745 User Guide_01-22-21.indd 29 2021/1/22 9:36:18...
- Page 32 CUSTOMER SUPPORT Customer Support Should you experience difficulties operating your SC745, please refer to the troubleshooting guide below. If you still experience difficulties, please contact Oricom Customer Support on (02) 4574 8888 for assistance. Troubleshooting Problems Solutions Equipment does − Check both parent unit and...
- Page 33 TROUBLESHOOTING No Link − Move the parent unit closer to displaying on the baby unit. parent unit Try resetting your monitor to avoid busy channels: 1. Turn both camera and parent units off and remove the battery i n t h e p a r e n t u n i t . L e a v e unplugged for 20 seconds.
- Page 34 − After a period of time, the battery may need to be replaced due to everyday usage. Please visit www.oricom.com.au to purchase replacement batteries. Parent unit Move the parent unit closer beeping to the baby unit until they are within range.
- Page 35 In the event of a minor failure, Oricom reserves the right to choose to repair or replace the product.
- Page 36 (30) days or for the remainder of the Express Warranty Period of the Oricom branded product in which they are installed, whichever is longer. During the Express Warranty Period, Oricom will where possible repair and if not replace the faulty product or part thereof.
- Page 37 EXPRESS WARRANTY EXPRESS WARRANTY Oricom will not be liable under this Express Warranty, and to the extent permitted by law will not be liable for any defect, loss, damage or injury arising out of or in connection with a: 1. Failure by you to adhere to the warnings and follow the instructions set out in this user guide for the proper installation and use of the product;...
- Page 38 EXPRESS WARRANTY EXPRESS WARRANTY How to make a claim under your Express Warranty in Australia Oricom has a simple warranty process for you to follow: • Please call or email our Customer Support Team, 02 4574 8888 or support@oricom.com.au. • A Customer Support Team member will verify after troubleshooting with you if your product qualifies under warranty.
- Page 39 EXPRESS WARRANTY EXPRESS WARRANTY Send the approved returns to: Oricom International Pty Ltd Locked Bag 658 South Windsor NSW 2756 Australia Please note that this Express Warranty excludes expenses incurred by you in returning any faulty product to us. You must arrange and pay any...
- Page 40 Oricom Support - Australia For all product enquiries, troubleshooting or to discuss the range of Oricom products, feel free to contact Oricom or visit our website for answers to frequently asked questions. (02) 4574 8888 Monday - Friday 8am –...
