Summary of Contents for Oricom Secure 700

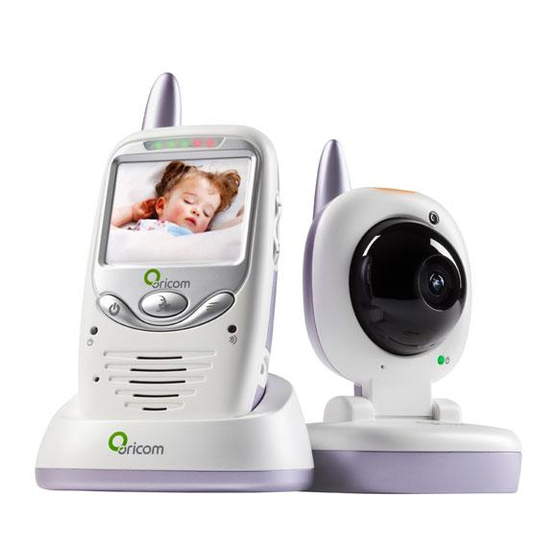

- Page 1 Baby Monitor Secure 700 User Guide...
- Page 2 TABLE OF CONTENTS WARNINGS AND SAFETY INFORMATION GETTING STARTED YOuR BABY MONITOR BASIC OpERATION TROuBLEShOOTING pRODuCT SpECIFICATIONS GuARANTEE...
-
Page 3: Intended Use
SAFETY INFORMATION 1 Safety Information The installation location plays a decisive role in ensuring proper operation. Therefore, maintain a distance of at least one meter from other electronic equipment, such as Please read this operating instruction manual thoroughly. microwave ovens or hi−fi devices, otherwise they could cause mutual interference/faults. -
Page 4: Rechargeable Batteries
SAFETY INFORMATION Rechargeable batteries devices in a separate waste container. The adjacent symbol indicates that the device must not be disposed of in ATTENTION normal domestic waste! Batteries represent a hazard to health and Never throw batteries into a fire. Only use batteries of the the environment! Never open, damage or same type! Pay attention to correct polarity. -
Page 5: Getting To Know Your Sc700
GETTING TO KNOW YOuR SC700 2 Getting to know your SC700 Antenna Sound level LEDs The buttons in this operating manual are subsequently Play / Pause depicted with a uniform contour. Therefore, slight Lullaby selector deviations in the appearance of the symbols on the buttons Talk button compared to those depicted here are possible. - Page 6 GETTING TO KNOW YOuR SC700 Camera unit (baby Unit) Night light Light sensor Power LED Microphone Lens Antenna Loudspeaker Temperature sensor Socket for power adapter plug ON/OFF switch Battery compartment...
-
Page 7: Using Your Sc700
uSING YOuR SC700 3 Installation Operating with batteries (not supplied) Use a small screwdriver to open the baby Insert the batteries, paying attention to Safety information correct polarity. Refer to the diagrams in the battery compartment. Close the battery ATTENTION compartment again. -
Page 8: Pack Contents
pACK CONTENTS Connecting the parent unit The parent unit is powered by a 3.6 V, 930 mAh battery pack. The rechargeable battery pack can be recharged directly in ATTENTION the parent unit when it is inserted in the charging station. The Power LED lights up red when the parent unit is being charged. -
Page 9: Operating The Baby Unit
OpERATING ThE BABY uNIT 4 Operating the baby Unit Connecting and aligning the baby unit ATTENTION Check the baby unit and parent unit are working properly each time before the equipment is put into operation. Position the baby unit with a minimum distance of 1 m to other electronic devices, otherwise there is a risk of mutual disturbance. -
Page 10: Operating The Parent Unit
OpERATING ThE pARENT uNIT 5 Operating the Parent Unit Press this button twice. This icon appears in the display for a few seconds. Use the button to set temperature measurement to Check the baby unit and parent unit are working properly each OFF, °C or °F. -
Page 11: Intercom Function
pACK CONTENTS or a button on the parent unit is pressed. Registration VOX: Voice Operated Transmission = Sound detection The parent unit and baby unit are pre−registered. If necessary, registration can also be completed Selecting a lullaby manually: Press the button on the right hand side of the parent Baby unit/Parent unit unit. -
Page 12: Fault Finding
− Reduce the volume on the parent please refer to the problems and solutions guide below. unit. If you still experience difficulties please contact Oricom Noise − The battery power is too low. Customer Support on 1300 889 785 for assistance. -
Page 13: Technical Specifications
TEChNICAL SpECIFICATIONS 7 Technical Specifications F r e q u e n c y 2.4 GHz range Technical data Permissible am- 0°C to 40°C bient tempera- Feature Value ture Camera (baby Socket: 6 V DC T r a n s m i s s i o n 15 ~ 17 dBm unit) Sensor: 1 night light sensor... -
Page 14: Warranty (Australia)
Warranty (Australia) (a) Warranty Oricom International Pty Ltd (Oricom) warrants that Oricom will not be liable for consequential losses including loss of the product is free from defects in materials and workmanship profits arising from a cause of action in contract, tort or any other for a period of 12 months effective from the date of purchase. - Page 15 Australia Customer Support Oricom International Pty Ltd Email: support@oricom.com.au Locked Bag 658 Web: www.oricom.com.au South Windsor, NSW 2756 Phone: 1300 889 785 Fax: +61 2 4574 8898 New Zealand Customer Support Baby First Limited Email: admin@babyfirst.co.nz Web: www.babyfirst.co.nz Phone: 0800 429329...
