TEMPLE & WEBSTER Bailey 3S Assembly Instructions

logo
Read these instructions and follow steps carefully to ensure you assemble
the product correctly and avoid damages. Check that all parts and
hardware have been provided before assembling the product. Place all
contents on a clean, soft-flat surface to avoid scratching the product.
Caution:
Once all ports haven been assembled, fully tighten all hard ware.
To prevent damage to threads, do not use a power tool and do not overtighten bolts. Use
two people to lift and turn the product when assembling.
Do not attempt with only one person and do not roll onto legs.
Keep all hardware and small parts away from children.
STEP 1:
A
STEP 3:
I
K
J

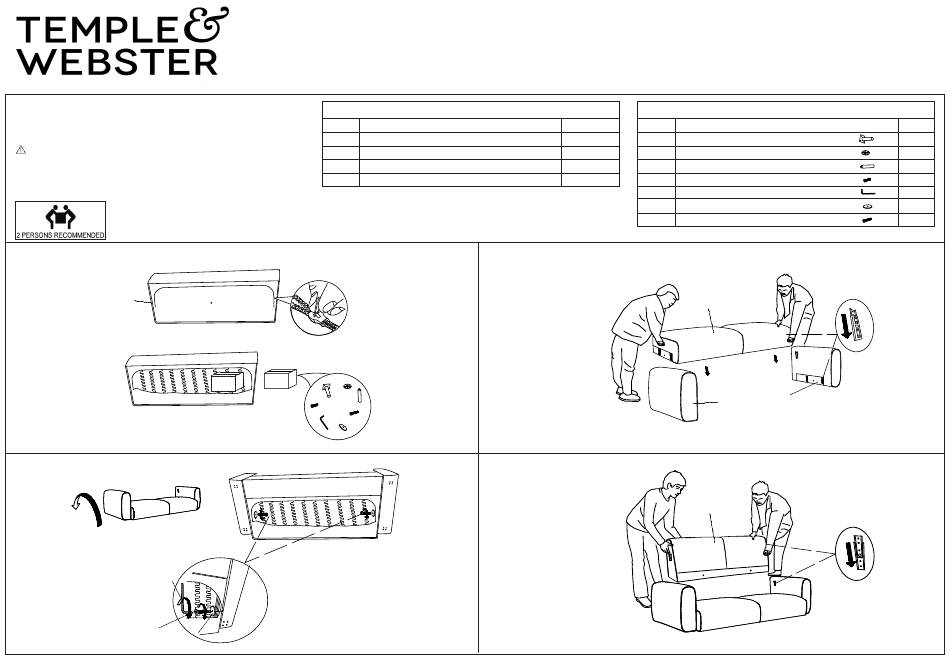

ASSEMBLY INSTRUCTIONS
PART LIST
ITEM DESCRIPTION
A SOFA SEAT
SOFA BACK
B
LEFT ARMREST
C
RIGHT ARMREST
D
STEP 2:
STEP 4:

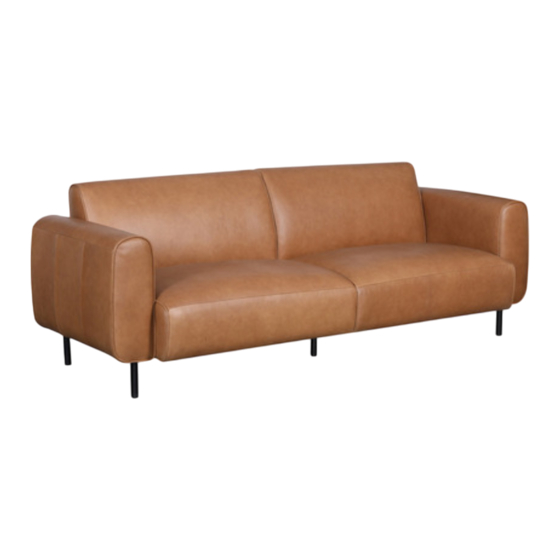

Bailey 3S
HARDWARE LIST
QTY ITEM DESCRIPTION
1PC E MAIN LEGS
1PC F PLASTIC WASHER
1PC
G
SUPPORT LEG(S)
1PC H
SCREW M6*30MM
I
ALLEN KEY
J FLAT PLASTIC WASHER M8*30*2
K
SCREW M8*60MM
A
C
B
QTY
4PCS
1PC
1PC
16PCS
1PC
5PCS
5PCS
D
