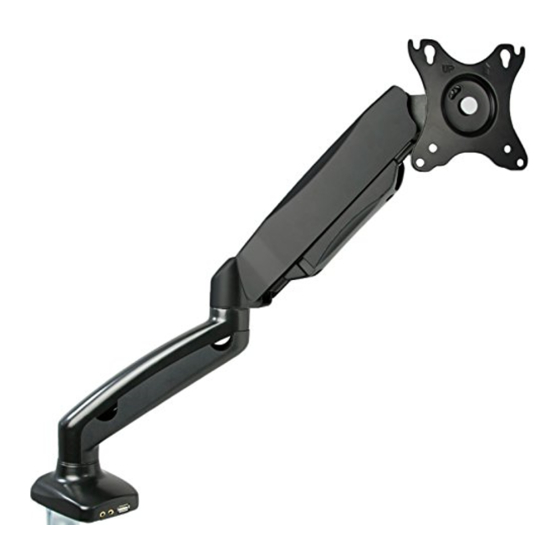

Pneumatic Arm Single Monitor Desk Mount with USB
Instruction Manual
SKU: STAND-V001OU
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v001ou
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo STAND-V001OU
Summary of Contents for Vivo STAND-V001OU
- Page 1 Pneumatic Arm Single Monitor Desk Mount with USB Instruction Manual SKU: STAND-V001OU Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v001ou GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 ASSEMBLY STEPS STEP 1 Remove gas spring arm (A) from packaging. While holding arm closed, cut the shipping tie and gently release arm. STEP 2 OPTION A: Clamp Installation OPTION A: Clamp Installation Mount bracket (B) to bottom of gas spring arm (A) using M6x12 bolts (D). Tighten using 4mm Mount bracket (B) to bottom of gas spring arm (A) using M6x12 bolts (D).
- Page 4 STEP 2 (Continued) OPTION B: Grommet Base Installation For grommet hole mounting, place carriage bolt (G) through the center of grommet base (F). Mount grommet base to bottom of gas spring arm (A) using M6x12 bolts (D). Tighten using 4mm Allen wrench (J).
- Page 5 STEP 4 Adjust tension in gas spring arm (A) using 5mm Allen wrench (K). Turning clockwise decreases strength, and counter-clockwise increases.
- Page 6 STEP 5 Remove bottom plastic covers from gas spring arm (A) using Phillips screwdriver end of 5mm Allen wrench (K). Run cables from monitor through bottom of gas spring arm (A), then reattach plastic covers.
- Page 7 STEP 6 Adjust monitor tilt support using 5mm Allen wrench (K) as shown. Adjust monitor position as desired. Connect USB and audio cables to ports on computer.
- Page 8 - 92% within < 3hr www.vivo-us.com AVG. RESOLUTION TIME : < 15 M (within office hrs) Chat live with an agent! 309-278-5303 AVG. RESOLUTION TIME : 5M 4S (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
