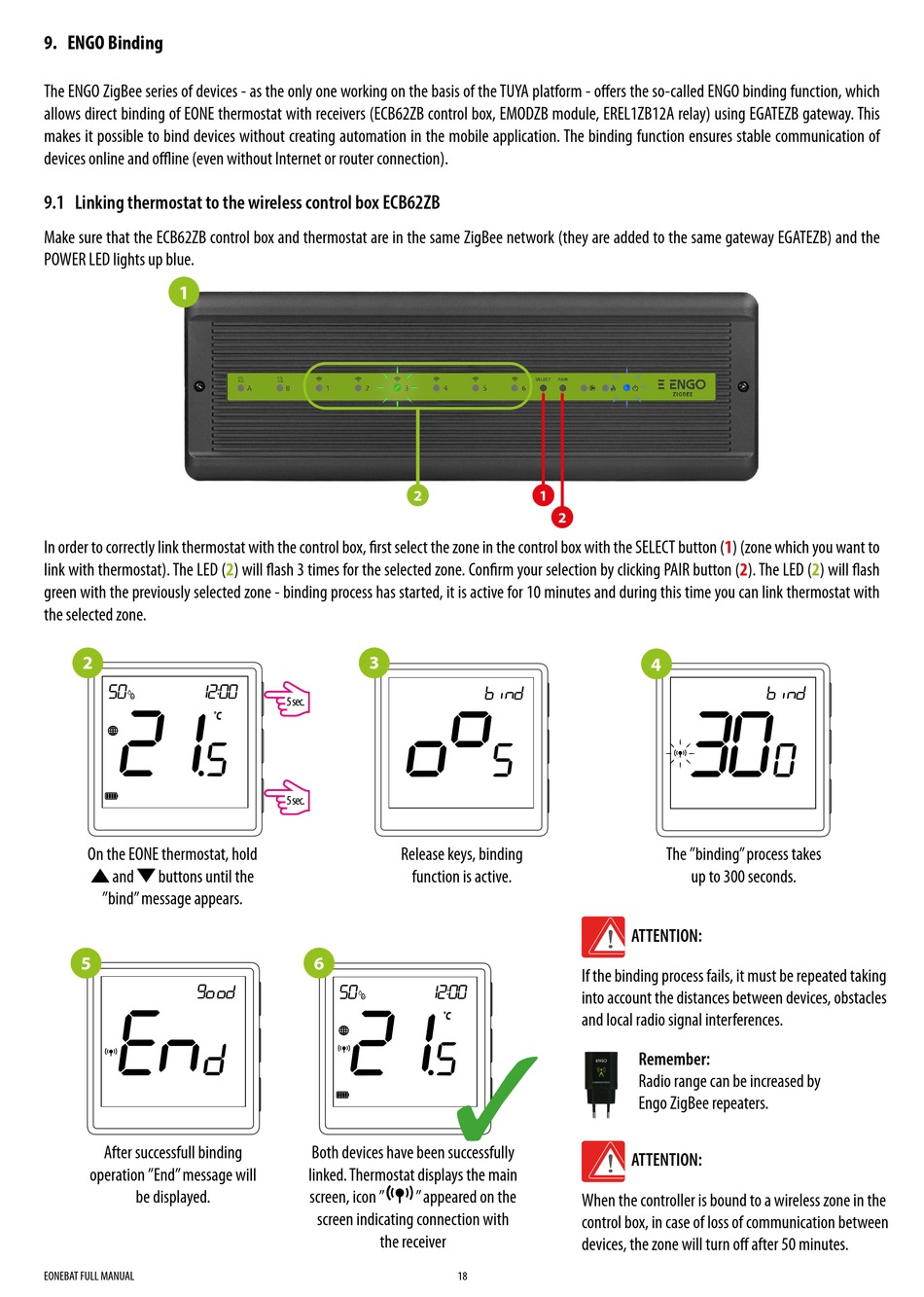

9. ENGO Binding

The ENGO ZigBee series of devices - as the only one working on the basis of the TUYA platform - offers the so-called ENGO binding function, which
allows direct binding of EONE thermostat with receivers (ECB62ZB control box, EMODZB module, EREL1ZB12A relay) using EGATEZB gateway. This
makes it possible to bind devices without creating automation in the mobile application. The binding function ensures stable communication of
devices online and offline (even without Internet or router connection).

9.1 Linking thermostat to the wireless control box ECB62ZB

Make sure that the ECB62ZB control box and thermostat are in the same ZigBee network (they are added to the same gateway EGATEZB) and the
POWER LED lights up blue.
1
In order to correctly link thermostat with the control box, first select the zone in the control box with the SELECT button (1) (zone which you want to
link with thermostat). The LED (2) will flash 3 times for the selected zone. Confirm your selection by clicking PAIR button (2). The LED (2) will flash
green with the previously selected zone - binding process has started, it is active for 10 minutes and during this time you can link thermostat with
the selected zone.
2
On the EONE thermostat, hold
and buttons until the
"bind" message appears.
5
After successfull binding
operation "End" message will
be displayed.
EONEBAT FULL MANUAL
2
3
5 sec.
5 sec.
Release keys, binding
function is active.
6
3
Both devices have been successfully
linked. Thermostat displays the main
screen, icon " " appeared on the
screen indicating connection with
the receiver
1
2
If the binding process fails, it must be repeated taking
into account the distances between devices, obstacles
and local radio signal interferences.
When the controller is bound to a wireless zone in the
control box, in case of loss of communication between
devices, the zone will turn off after 50 minutes.
18
4
The "binding" process takes
up to 300 seconds.
ATTENTION:
Remember:
Radio range can be increased by
Engo ZigBee repeaters.
ATTENTION:
