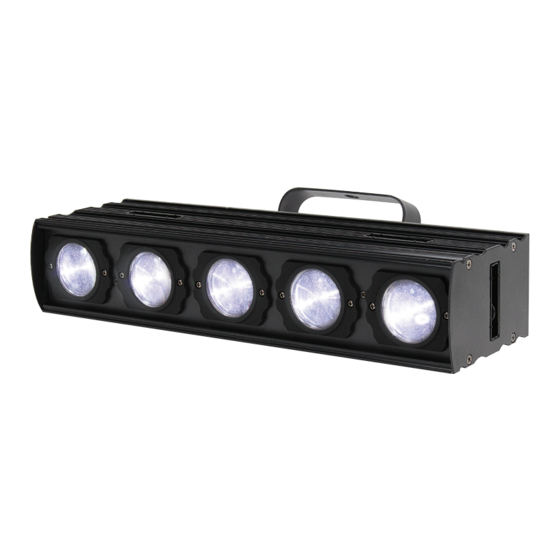

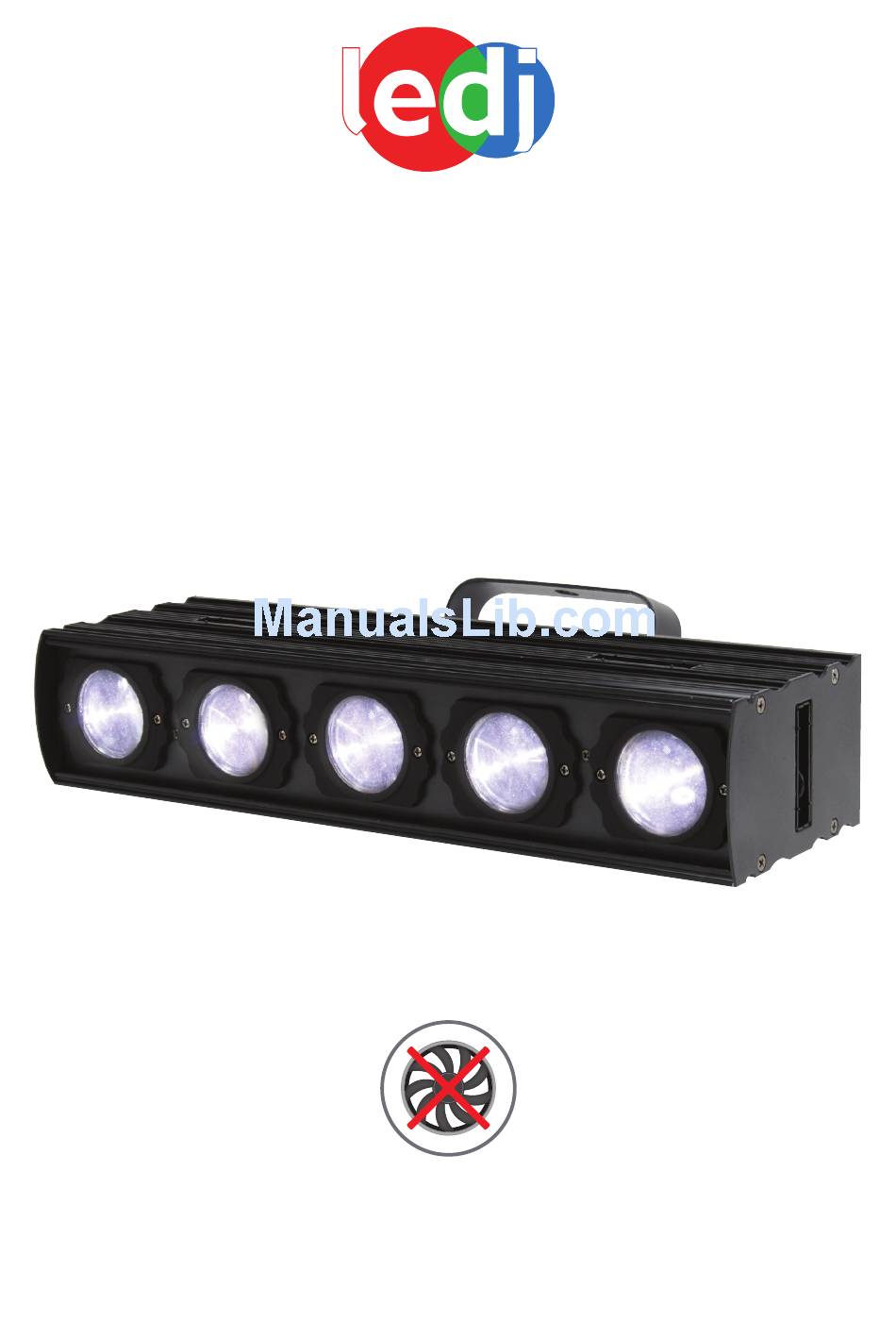

- Page 1 Razor Beam 5 x 9W CW Beam Bar User Manual Convection cooled, no fan! Order code: LEDJ264...
-
Page 2: Safety Advice
• Only use the equipment indoors. • If your product fails to function correctly, stop use • Do not expose to flammable sources, liquids or gases. immediately. Pack the unit securely (preferably in the original packing material), and return it to your Pro Light • Always disconnect the power from the mains when dealer for service. equipment is not in use or before cleaning! Only handle the power-cable by the plug. Never pull out the plug by • Only use fuses of same type and rating. pulling the power-cable. • Repairs, servicing and power connection must only be • Make sure that the available voltage is between carried out by a qualified technician. THIS UNIT CONTAINS 100~240V, 50/60Hz. NO USER SERVICEABLE PARTS. • Make sure that the power cable is never crimped or • WARRANTY: One year from date of purchase. damaged. Check the equipment and the power cable periodically. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Razor Beam User Manual... - Page 3 • Beam angle: 3° • 6.2kHz refresh rate • Individually controllable LEDs • DMX channels: 3, 5 or 9 selectable • Sound active, auto and master slave modes plus built in programs • 0-100% dimming and variable strobe • 4 push button menu with LED display • PowerCON in/out sockets • 3-Pin XLR in/out socket • Convection cooled • Quarter turn quick lock alignment system 3° - Lux 44700 16500 7560 3900 2540 Specifications Razor Beam Power consumption Power supply 100~240V, 50/60Hz 3° Dimensions 80 x 400 x 225mm Weight 3.25kg Order code LEDJ264 400mm 225mm www.prolight.co.uk Razor Beam User Manual...
-
Page 4: Technical Specifications
LOCK DMX OUT RAZOR BEAM www.prolight.co.uk DMX IN MODE SETUP DOWN 01 - Bracket 05 - Function buttons 09 - PowerCON out socket In the box: 1 x fixture, 02 - Bracket tightening knobs 06 - DMX input socket 10 - Rigging lock 1 x power cable & 03 - Earth point 07 - DMX output socket 11 - Safety bond point 1 x user manual 04 - LED display 08 - PowerCON in socket 12 - Fuse 1A 250V (2A 125V) www.prolight.co.uk Razor Beam User Manual... - Page 5 Multiple fixture array The LEDJ Razor Beam Bar features quarter turn locks on all sides for linking and aligning multiple fix- tures into linear strips or vertical arrays. The quarter turn system requires a standard 5.0mm hex key (not supplied). Note: When rigging multiple Razor Beam Bars each bar should be fixed to the trussing with a seperate truss clamp and safety bond. Care should be taken to ensure the quarter turn locks are fully located and secure. www.prolight.co.uk Razor Beam User Manual...
-
Page 6: Operating Instructions
80-89 Program 7 90-99 Program 8 100-109 Program 9 110-119 Program 10 120-139 Blackout 140-255 Sound active (adjustable sensitivity) 0-255 Speed control active when CH1 value is 20-119 0-19 No function 20-255 LED strobe active when CH1 value is 20-119 Does not control sound active mode 5 channel mode: Channel Value Function 000-255 LED 1 (0-100%) 000-255 LED 2 (0-100%) 000-255 LED 3 (0-100%) 000-255 LED 4 (0-100%) 000-255 LED 5 (0-100%) www.prolight.co.uk Razor Beam User Manual... - Page 7 000-255 LED 5 (0-100%) No function 10-19 Auto run 20-29 Program 1 30-39 Program 2 40-49 Program 3 50-59 Program 4 60-69 Program 5 70-79 Program 6 80-89 Program 7 90-99 Program 8 100-109 Program 9 110-119 Program 10 120-139 No function 140-255 Sound active 0-255 Speed control active when CH7 value is 20-119 0-19 No function 20-255 LED strobe active when CH7 value is 20-119 Does not control sound active www.prolight.co.uk Razor Beam User Manual...
-
Page 8: Master/Slave Mode
(off) to full brightness . To strobe the LEDs press the “SETUP” but- ton, the display will read F5.00. Use the “UP” and “DOWN” buttons to adjust the units strobe settings. F5.00 is full (on), F5.01 to F5.99 will adjust the speed of the strobe (F5.99 being the fastest). Sound active mode: Sund To access the sound active mode press “MODE” until the display shows . Press the “SETUP” Su. _ _ button for the unit to display . Use the “UP” and “DOWN” buttons to select the sensitivity (01 being the least sensitive and 31 being the most sensitive). Master/slave mode: Slav To access the master/slave mode press “MODE” until the display shows . This ensures the unit is in slave mode. In this mode all the internal programmig is disabled which allows for the unit to follow the standard DMX-512 protocol. It may be controlled by abother identical light fixture or by a standard DMX controller. Use the “UP” and “DOWN” buttons to select the sensitivity (01 being the least sensitive and 31 being the most sensitive). Restore factory settings: To perform a factory reset make sure the unit is powered off. Simultaneously press the “MODE” and rset, “SETUP”. Whilst holding these buttons power the unit on. The unit display will flash this will restore the unit to its factory settings. To exit out of any of the above options, press the “MODE” button. Please ensure that all slave units are set to the same DMX channel mode as the master unit. www.prolight.co.uk Razor Beam User Manual... -
Page 9: Product Information
Operating instructions Product information: InFo Press the “MODE” button until the display shows . Now press the “SETUP” button and then use the “UP” and “DOWN” buttons to view the following options: When the display shows , press the “SETUP” button to view the product version. To exit out of any of the above options, press the “MODE” button. www.prolight.co.uk Razor Beam User Manual... -
Page 10: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Note: DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Razor Beam User Manual... -
Page 11: Line Termination
5-pin XLR (socket) 3-pin XLR (socket) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Razor Beam User Manual... -
Page 12: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Razor Beam User Manual... - Page 13 Razor Beam User Manual...
- Page 14 Razor Beam User Manual...
