Installation Manual

ICE/BEVERAGE DISPENSER
ED 300 BN and ED 300 BC (Quick Trip)
Publication Date: November, 1998
Publication Number: 620913202
Revision Date: October 12, 2011
Revision: C
Visit the IMI Cornelius web site at www.cornelius.com for all your Literature needs.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ED 300 BN and is the answer not in the manual?

Questions and answers

Related Manuals for Cornelius ED 300 BN

Summary of Contents for Cornelius ED 300 BN

  • Page 1: Installation Manual

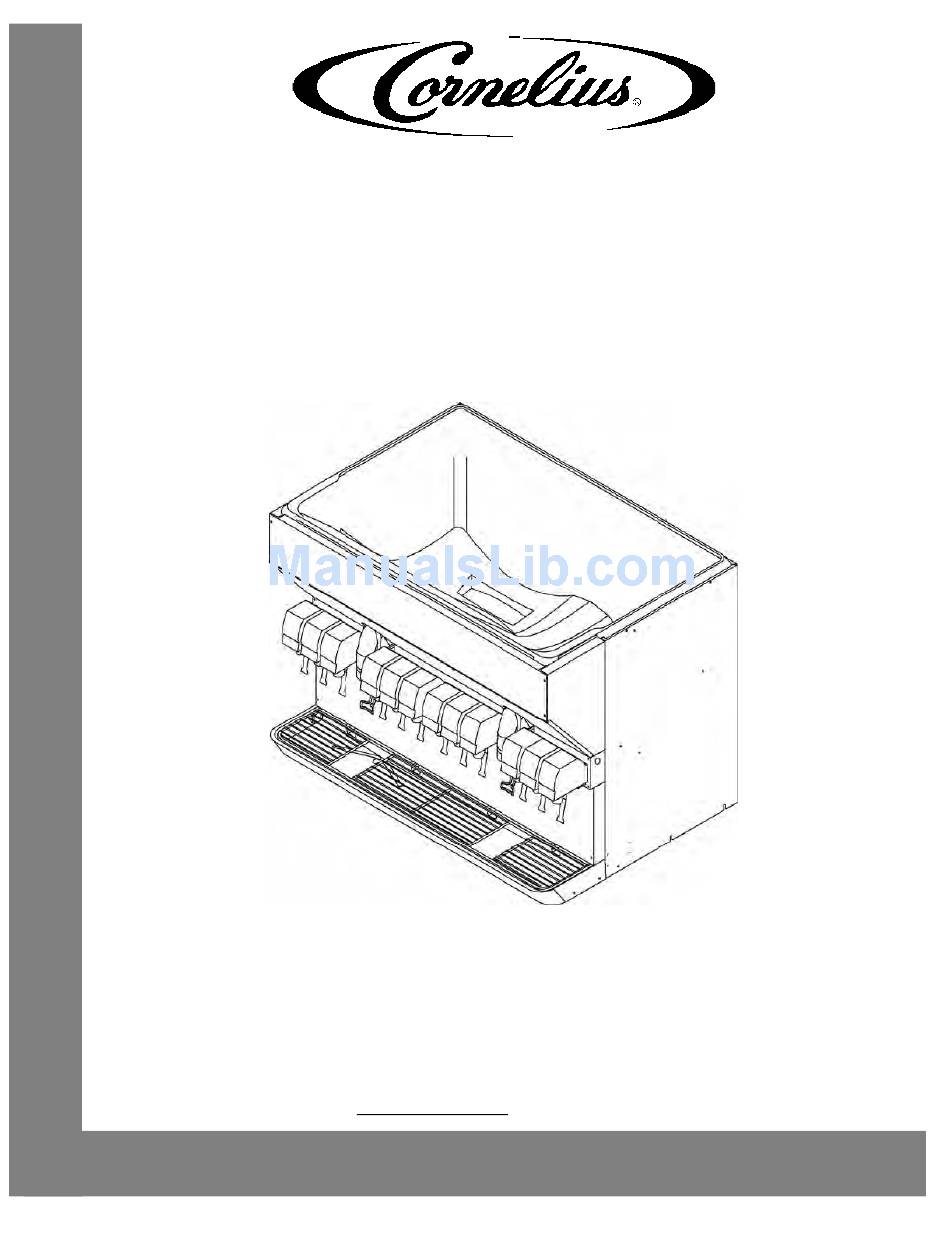

    Installation Manual ICE/BEVERAGE DISPENSER ED 300 BN and ED 300 BC (Quick Trip) Publication Date: November, 1998 Publication Number: 620913202 Revision Date: October 12, 2011 Revision: C Visit the IMI Cornelius web site at www.cornelius.com for all your Literature needs.

  • Page 2: Contact Information

    Commercial Warranty. Cornelius will not be responsible for any repair, replacement or other service required by or loss or damage resulting from any of the following occurrences, including but not limited to, (1) other than normal and proper use and normal...

  • Page 3: Table Of Contents

    Safety Instructions..............2 Read and Follow ALL Safety Instructions .

  • Page 4: Safety Instructions

    Only trained and certified electrical, plumbing and refrigeration technicians should service this unit. ALL WIRING AND PLUMBING MUST CONFORM TO NATIONAL AND LOCAL CODES. FAILURE TO COMPLY COULD RESULT IN SERIOUS INJURY, DEATH OR EQUIPMENT DAMAGE. Publication Number: 620913202 AFETY NSTRUCTIONS Recognize Safety Alerts - 2 - © 1998-2011, IMI Cornelius Inc.

  • Page 5: Safety Precautions

    NOTE: Many units incorporate the use of additional equipment such as icemakers. When any addition equip- ment is used you must check with the equipment manufacturer to determine the additional weight the counter will need to support to ensure a safe installation. © 1998-2011, IMI Cornelius Inc. Ice/Beverage Dispenser Installation Manual ARNING...

  • Page 6: Description

    220-240 /1/50/60 Hz 4.0 Amps Total Unit Draw 44–3/8 in. Wide X 31–1/2 in. Deep X 37 in. High Z Model: 44–3/8 in. Wide X 23 1/16 in. Deep X 37 in. High - 4 - © 1998-2011, IMI Cornelius Inc.

  • Page 7: Installation Instructions

    12. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly quali- fied persons in order to avoid a hazard. © 1998-2011, IMI Cornelius Inc. Ice/Beverage Dispenser Installation Manual “tee” into the drip tray drain line..
  • Page 8 Ice/Beverage Dispenser Installation Manual Installation Dimensions Figure 1. Publication Number: 620913202 - 6 - © 1998-2011, IMI Cornelius Inc.
  • Page 9 Ice/Beverage Dispenser Installation Manual Installation Rear View, BN Model Figure 2. © 1998-2011, IMI Cornelius Inc. - 7 - Publication Number: 620913202...

  • Page 10: Adjust Water-To-Syrup Ratio

    6. Test the valve and adjust until a consistent ratio is delivered three consecutive times. 7. Repeat procedure for other valves. Publication Number: 620913202 ATER YRUP ATIO Separator Water-To-Syrup Ratio Cup Figure 3. - 8 - © 1998-2011, IMI Cornelius Inc.

  • Page 11: Maintenance

    This plate may be adjusted as shown to reduce or increase the dispensing rate of ice, especially desirable when using glasses or other containers with small openings. Adjustment can be made by sliding up or down with nuts loosened, to obtain the desired amount of restriction. © 1998-2011, IMI Cornelius Inc. Ice/Beverage Dispenser Installation Manual MAINTENANCE Figure 4.
  • Page 12 Ice/Beverage Dispenser Installation Manual Figure 5. Mounting Template Publication Number: 620913202 - 10 - © 1998-2011, IMI Cornelius Inc.
  • Page 13 Ice/Beverage Dispenser Installation Manual Figure 6. Mounting Template (-BC Models) © 1998-2011, IMI Cornelius Inc. - 11 - Publication Number: 620913202...
  • Page 14 Ice/Beverage Dispenser Installation Manual Drip Tray Drain Assembly Figure 7. Publication Number: 620913202 - 12 - © 1998-2011, IMI Cornelius Inc.
  • Page 15 Ice/Beverage Dispenser Installation Manual Figure 8. Beverage System Schematic © 1998-2011, IMI Cornelius Inc. - 13 - Publication Number: 620913202...
  • Page 16 Ice/Beverage Dispenser Installation Manual Figure 9. Flow Diagram (BC Models with 12 Beverage Faucets) Publication Number: 620913202 - 14 - © 1998-2011, IMI Cornelius Inc.

  • Page 17: Troubleshooting

    ICE DOES NOT DISPENSE FROM ONE GATE ASSEMBLY Contact your local syrup or beverage equipment distributor for additional information and troubleshooting of beverage system. © 1998-2011, IMI Cornelius Inc. Ice/Beverage Dispenser Installation Manual system, stop dispensing, shut Probable Cause A. Short circuit in wiring.
  • Page 18 Ice/Beverage Dispenser Installation Manual Figure 10. Wiring Diagram Publication Number: 620913202 - 16 - © 1998-2011, IMI Cornelius Inc.
  • Page 19 Ice/Beverage Dispenser Installation Manual Figure 11. Ladder Schematic © 1998-2011, IMI Cornelius Inc. - 17 - Publication Number: 620913202...
  • Page 20 Ice/Beverage Dispenser Installation Manual Publication Number: 620913202 - 18 - © 1998-2011, IMI Cornelius Inc.
