  • Page 2 E15336 Second Edition March 2019 Copyright Notice This document is copyrighted, 2019. All rights are reserved. The original manufacturer reserves the right to make improvements to the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of the original manufacturer.

  • Page 3: Table Of Contents

    Contents Chapter 1: Product overview Package contents ................. 1-1 Features ..................1-1 1.3 Specifications ................1-2 Chapter 2: Motherboard information Before you proceed ..............2-1 Motherboard layout ..............2-2 Screw size ..................2-4 2.3.1 Component side .............. 2-4 2.3.2 Solder side ..............2-5 Central Processing Unit (CPU) ...........
  • Page 4 Contents Boot menu .................. 3-11 3.6.1 Boot Configuration ............3-11 3.6.2 Boot Option Priorities ............ 3-12 Save & Exit menu ............... 3-12 Appendix Notices .......................A-1...

  • Page 5: Chapter 1: Product Overview

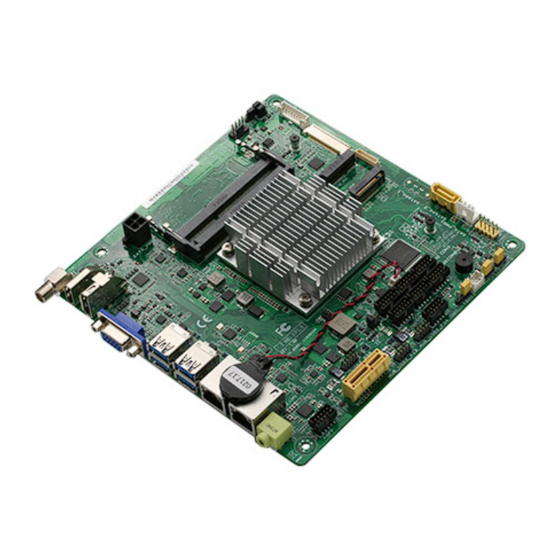

    Chapter 1 Product overview Package contents Check your industrial motherboard package for the following items. 1 x Industrial Motherboard 1 x SATA cable 1 x SATA power cable 1 x I/O shield 1 x Support DVD NOTE: If any of the above items are damaged or missing, contact your distributor or sales representative immediately.

  • Page 6: Specifications

    C~60 temperature Operating humidity 0%~90% relative humidity, non-condensing Certificate CE & FCC Class A Form factor Mini-ITX form factor: 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm) Weight 1.1 lb (0.5 Kg) (continued on the next page) EMB-APL3...
  • Page 7 Storage 2 x SATA 6Gb/s (1 colay with M.2) (default: 1 x SATA + M.2) 1 x SATA power connector (5V / 12V @1A) 4 x USB 3.0 ports (at the back panel) 6 x USB 2.0 ports (at the mid-board) Display I/O 1 x VGA (colay with DP), 1 x HDMI, 1 x LVDS (via PS8625) Audio I/O...
  • Page 8 Others Supported OS Windows 10 64-bit ® Ubuntu16.04.02 / Kernel4.8.0 Accessories 1 x SATA cable 1 x SATA power cable 1 x I/O shield 1 x Support DVD NOTE: Specifications are subject to change without notice. EMB-APL3...

  • Page 9: Chapter 2: Motherboard Information

    Chapter 2 Motherboard information Before you proceed Take note of the following precautions before you install motherboard components or change any motherboard settings. CAUTION! • Unplug the power cord from the wall socket before touching any component. • Before handling components, use a grounded wrist strap or touch a safely grounded object or a metal object, such as the power supply case, to avoid damaging them due to static electricity. • Hold components by the edges to avoid touching the ICs on them. • Whenever you uninstall any component, place it on a grounded antistatic pad or in the bag that came with the component.

  • Page 10: Motherboard Layout

    HDMI EATX_PWR DDR3L SO-DIMM_B1 (64bit, 204-pin module) 1442K 2230 DDR3L SO-DIMM_ A1 (64bit, 204-pin module) VGA1 2230_M2E Intel USB3_01 ® 2242_M2M Apollo Lake USB3_23 LAN1 EMB-APL3 128Mb Super BIOS SPI1 BATTERY1 2242 LAN2 COM2 COM1 COM3 8111H LINE_OUT 3236 USB2_P56...
  • Page 11 Connectors/Jumpers/Slots/LEDs Page DCIN 12V AUX power connector (4-pin DC_PWR2) 2-12 DDR3L SO-DIMM slots Chassis fan connector (4-pin SYS_FAN1) 2-11 LVDS panel voltage selection jumper (3-pin LVDS_PWR) Inverter voltage selection jumper (3-pin BKL_PWR) Inverter backlight control mode selection jumper (3-pin J3) Backlight inverter power connector (8-pin INV1) 2-16 LVDS connector (40-pin LVDS1) 2-14 M.2 E Key and M Key slots 2-15 Integrated Intel Apollo Lake processor N4200/N3350 ® Serial ATA 6.0Gb/s connectors (7-pin SATA6G_1~2) 2-13 SATA power connector (4-pin SATA_PWR1) 2-16 System panel connector (10-1 pin F_PANEL1) 2-12 AT/ATX mode selection (3-pin ATX_AT1) Clear RTC RAM (3-pin CLRTC1) PS/2 keyboard/mouse connector (6-pin KBMS1) 2-16 Chassis intrusion jumper (4-1 pin CHASSIS1) Digital I/O connector (10-pin DIO1) 2-15 USB 2.0 connectors (10-pin HUB_USB2_P12, HUB_USB2_P34, USB2_P56) 2-13 Serial port connectors (10-pin COM1~6) 2-17 Battery connector (2-pin BATTERY1) 2-18 SPI programming connector (8-pin SPI1) 2-14 Front panel audio connector (10-pin AAFP) 2-11 Chapter 2: Motherboard information...

  • Page 12: Screw Size

    Screw size 2.3.1 Component side EMB-APL3...

  • Page 13: Solder Side

    2.3.2 Solder side Chapter 2: Motherboard information...

  • Page 14: Central Processing Unit (Cpu)

    Central Processing Unit (CPU) The motherboard comes with an integrated Intel Apollo Lake processor N4200/ ® N3350. Intel ® Apollo Lake EMB-APL3 EMB-APL3 CPU onboard System memory This motherboard comes with two Double Data Rate 3 Low Voltage (DDR3L) Small Outline Dual Inline Memory Modules (SO-DIMM) sockets. The figure illustrates the location of the DDR3L DIMM sockets: DIMM_B1 DIMM_A1 EMB-APL3 EMB-APL3 204-pin DDR3L SO-DIMM sockets Installing a DIMM To install a DIMM To remove a DIMM...

  • Page 15: Jumpers

    1. Turn OFF the computer and unplug the power cord. 2. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the cap on pins 2-3 for about 5~10 seconds, then move the cap back to pins 1-2. 3. Plug the power cord and turn ON the computer. 4. Hold down the <Del> key during the boot process and enter BIOS setup to reenter data. CAUTION! Except when clearing the RTC RAM, never remove the cap on CLRTC jumper default position. Removing the cap will cause system boot failure! NOTE: If the steps above do not help, remove the onboard battery and move the jumper again to clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the battery. LVDS panel voltage selection jumper (3-pin LVDS_PWR) LVDS_PWR (Default) EMB-APL3 EMB-APL3 LVDS panel voltage selection Pins +3V (Default) Chapter 2: Motherboard information...
  • Page 16 Inverter voltage selection jumper (3-pin BKL_PWR) BKL_PWR +12V (Default) EMB-APL3 EMB-APL3 Inverter voltage selection Pins +12V +5V (Default) Inverter backlight control mode selection jumper (3-pin J3) DC mode PWM mode (Default) EMB-APL3 EMB-APL3 Inverter backlight control mode selection Pins DC mode (Default) PWM mode...
  • Page 17 AT/ATX mode selection jumper (3-pin ATX_AT1) AT_ATX1 EMB-APL3 EMB-APL3 AT/ATX mode selection Pins ATX mode (Default) AT mode Chassis intrusion jumper (4-1 pin CHASSIS1) This connector is for a chassis-mounted intrusion detection sensor or switch. Connect one end of the chassis intrusion sensor or switch cable to this connector. The chassis intrusion sensor or switch sends a high-level signal to this connector when a chassis component is removed or replaced. The signal is then generated as a chassis intrusion event. Move the jumper cap to pins 1-2 when you intend to use the chassis intrusion detection feature. CHASSIS1...

  • Page 18: Connectors

    LAN (RJ-45) ports. These ports allow Gigabit connection to a Local Area Network (LAN) through a network hub. Refer to the table below for the LAN port LED indications. LAN port LED indications Speed Activity Link LED ACT/LINK LED SPEED LED Status Description Status Description No link 10 Mbps connection GREEN Linked ORANGE 100 Mbps connection BLINKING Data activity GREEN 1 Gbps connection LAN port Line Out port (lime). This port connects to a headphone or a speaker. In the 4-channel and 6-channel configurations, the function of this port becomes Front Speaker Out. EMB-APL3 2-10...

  • Page 19: Internal Connectors

    SYS_FAN1 EMB-APL3 PIN1 EMB-APL3 Fan connector CAUTION: DO NOT forget to connect the fan cable to the fan connector. Insufficient air flow inside the system may damage the motherboard components. This is not a jumper! DO NOT place a jumper cap on the fan connector. Front panel audio connector (10-pin AAFP) This connector is for a chassis-mounted front panel audio I/O module that supports HD Audio audio standard. Connect one end of the front panel audio I/O module cable to this connector. AAFP PIN 1 EMB-APL3 EMB-APL3 Front panel audio connector IMPORTANT: We recommend that you connect a high-definition front panel audio module to this connector to avail of the motherboard’s high-definition audio capability. Chapter 2: Motherboard information 2-11...
  • Page 20 DCIN 12V AUX power connector (4-pin EATX_PWR) This port connects to a DCIN AUX supply plug. The power supply plug is designed to fit this connector in only one orientation. Find the proper orientation and push down firmly until the connector completely fits. EATX_PWR PIN 1 EMB-APL3 EMB-APL3 DCIN AUX power connector System panel connector (10-1 pin F_PANEL1) This connector supports several chassis-mounted functions. F_PANEL1 (NC) RSTCON#_PANEL PWRBTN# PWR_LED- HDD_LED- PWR_LED+ HDD_LED+ EMB-APL3 PIN 1 EMB-APL3 System panel connector •...
  • Page 21 Serial ATA 6.0Gb/s connector (7-pin SATA6G_1~2) These connectors connect to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0 Gb/s signal cables. EMB-APL3 EMB-APL3 SATA 6.0Gb/s connectors USB 2.0 connectors (10-pin USB2_56, HUB_USB2_P12, HUB_USB2_ P34) These connectors are for USB 2.0 ports. Connect the USB module cable to any of these connectors, then install the module to a slot opening at the back of the system chassis. These USB connectors comply with USB 2.0 specification that supports up to 480 Mbps connection speed. USB2_P56 HUB_USB2_P12 HUB_USB2_P34 PIN 1 PIN 1 PIN 1 EMB-APL3 EMB-APL3 USB2.0 connectors CAUTION! Never connect a 1394 cable to the USB connectors. Doing so will damage the motherboard! NOTE: The USB module cable is purchased separately.
  • Page 22 LVDS1_D1+ LVDS1_D2- LVDS1_D2+ LVDS1_D3- LVDS1_D3+ LVDS0_D0- LVDS0_D0+ LVDS0_D1- LVDS0_D1+ LVDS0_D2- LVDS0_D2+ EMB-APL3 LVDS0_D3- LVDS0_D3+ PIN 1 EMB-APL3 LVDS connector SPI programming connector (8-pin SPI1) Use this connector to flash BIOS SPI ROM. SPI1 PIN 1 +1.8V_SPI SPI_CS0#_F SPI_CLK_F EMB-APL3 SPI_SO_F SPI_SI_F EMB-APL3 SPI programming connector EMB-APL3 2-14...
  • Page 23 EMB-APL3 M.2 sockets The M.2 (NGFF) module is purchased separately. 10. Digital I/O connector (10-pin DIO1) This connector includes 8 I/O lines (In/Out programmable). All of the Digital I/O lines are programmable and each I/O pin can be individually programmed to support various devices. DIO1 EMB-APL3 PIN 1 EMB-APL3 Digital I/O connector NOTE: To configure the I/O pins in BIOS, go to the Advanced tab > Digital IO Port Configuration > DIO Port 1~8. See section 3.3.8 Digital IO Port Configuration for details. Chapter 2: Motherboard information 2-15...
  • Page 24 11. PS/2 keyboard/mouse connector (6-pin KBMS1) This connector is for an IBM PS/2-compatible keyboard and mouse. KBMS1 PIN 1 EMB-APL3 EMB-APL3 PS/2 keyboard/mouse connector 12. SATA power connector (4-pin SATA_PWR1) This connector is for the SATA power cable. The power cable plug is designed to fit this connector in only one orientation. Find the proper orientation and push down firmly until the connector completely fit. SATA_PWR1 +12V EMB-APL3 EMB-APL3 SATA power connector 13. Backlight inverter power connector (8-pin INV1) Connect the backlight inverter power cable to this connector. INV1...
  • Page 25 COM1 COM2 COM3 PIN 1 PIN 1 PIN 1 COM4 COM5 COM6 PIN 1 PIN 1 PIN 1 EMB-APL3 EMB-APL3 Serial port connectors NOTES: • The COM module is purchased separately. • COM1 also supports RS-232 / RS-422 / RS-485. See the table below and section 3.3.6 SIO Configuration for details. Signal Signal DCD (422TXD-/485DATA-) RXD (422RXD+) TXD (422TXD+/485DATA+) DTR (422RXD-) RI/+12V/+5V N.C.
  • Page 26 15. Battery connector (2-pin BATTERY1) This connector is for the lithium CMOS battery. BATTERY1 PIN 1 EMB-APL3 EMB-APL3 Battery connector EMB-APL3 2-18...

  • Page 27: Chapter 3: Bios Setup

    Chapter 3 BIOS setup BIOS setup Use the BIOS Setup to update the BIOS or configure settings. The BIOS screens include navigation keys and help to guide you in using the BIOS Setup program. Entering BIOS Setup at startup To enter BIOS Setup at startup: Press <Delete>...

  • Page 28: Main Menu

    3.3.1 Trusted Computing Security Device Support [Enable] Allows you to enable or disable BIOS support for security devices. Configuration options: [Disable] [Enable] SHA-1 PCR Bank [Enabled] Allows you to enable or disable SHA-1 PCR Bank. Configuration options: [Enabled] [Disabled] EMB-APL3...

  • Page 29: Cpu Configuration

    SHA256 PCR Bank [Enabled] Allows you to enable or disable SHA256 PCR Bank. Configuration options: [Enabled] [Disabled] Pending operation [None] Allows you to schedule an operation for security devices. Reboot your system for the changes to take effect. Configuration options: [None] [TPM Clear] Platform Hierarchy [Enabled] Allows you to enable or disable Platform Hierarchy.

  • Page 30: Sata Drives

    The USB devices can be used only for the BIOS setup program. [Auto] Allows the system to detect the presence of USB devices at startup. If detected, the USB controller legacy mode is enabled. If no USB device is detected, the legacy USB support is disabled. EMB-APL3...

  • Page 31: Hardware Monitor

    3.3.5 Hardware Monitor Smart Fan Configuration CPU Smart Fan Control [Disabled] Allows you to enable or disable CPU Smart Fan Control. Configuration options: [Enabled] [Disabled] The following sub-items appear only when you set CPU Smart Fan Control to [Enabled]. Fan Control Mode [Manual Mode] Configuration options: [Manual Mode] [Thermal Cruise Mode] [Speed Cruise Mode] [Smart Fan IV Mode] The following item appears only when you set Fan Control Mode to [Manual...
  • Page 32 Allows you to select the temperature source. Configuration options: [SYSTIN] [CPUTIN] [AUXTIN0] [AUXTIN1] [AUXTIN2] [AUXTIN3] [SMBUSMASTER 0] [SMBUSMASTER 1] [SMBUSMASTER 2] [SMBUSMASTER 3] [SMBUSMASTER 4] [SMBUSMASTER 5] [SMBUSMASTER 6] [SMBUSMASTER 7] [PECI Agent 0] [PECI Agent 1] [PCH_CHIP_CPU_ MAX_TEMP] [PCH_CHIP_TEMP] [PCH_CPU_TEMP] [PCH_MCH_TEMP] [PCH_DIM0_TEMP] [PCH_DIM1_TEMP] [PCH_DIM2_TEMP] [PCH_DIM3_ TEMP] [BYTE_TEMP] EMB-APL3...

  • Page 33: Sio Configuration

    Close-Loop Fan Mode [Disabled] Allows you to enable or disable Smart Fan IV Close-Loop Fan Mode. Configuration options: [Enabled] [Disabled] Temperature 1~4 [xx] Input temperature setting. The values range from 0~255. Fan PWM 1~4 [xx] Input the amount of Fan PWM 4 for Smart Fan IV Mode. The values range from 0~255.
  • Page 34 Use This Device [Enabled] Allows you to enable or disable the serial port (COM). Configuration options: [Enabled] [Disabled] Possible [Use Automatic Settings] Allows you to select the Serial Port base address. Configuration options: [Use Automatic Settings] [IO=2C0h; IRQ=11;] [IO=2D0h; IRQ=11;] EMB-APL3...

  • Page 35: Power Management

    3.3.7 Power Management Power Mode [ATX Type] This item selects Power Supply Mode. Configuration options: [ATX Type] [AT Type] Restore AC Power Loss [Always Off] [Always On] The system goes into on state after an AC power loss. [Always Off] The system goes into off state after an AC power loss.

  • Page 36: Security Menu

    From the Create New Password box, key in a password, then press <Enter>. Confirm the password when prompted. To change an administrator password: Select the Administrator Password item and press <Enter>. From the Enter Current Password box, key in the current password, then press <Enter>. EMB-APL3 3-10...

  • Page 37: User Password

    From the Create New Password box, key in a new password, then press <Enter>. Confirm the password when prompted. To clear the administrator password, follow the same steps as in changing an administrator password, but press <Enter> when prompted to create/confirm the password.

  • Page 38: Boot Option Priorities

    This option allows you to exit the Setup program without saving your changes. When you select this option or if you press <Esc>, a confirmation window appears. Select Yes to discard changes and reboot system. Restore Defaults Save or restore User Defaults to all setup options. EMB-APL3 3-12...

  • Page 39: Appendix

    Check local regulations for disposal of electronic products. DO NOT throw the mercury-containing button cell battery in municipal waste. This symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste. EMB-APL3...
  • Page 40 ○ ○ ○ ○ 外部信號連接頭 × ○ ○ ○ ○ ○ 及線材 中央處理器與內 × ○ ○ ○ ○ ○ 存 本表格依據 SJ/T 11364 的規定編制。 ○： 表示該有害物質在該部件所有均質材料中的含量均在 GB/T 26572 規 定的限量要求以下。 ×： 表示該有害物質至少在該部件的某一均質材料中的含量超出 GB/T 26572 規定的限量要求，然該部件仍符合歐盟指令 2011/65/EU 的 規范。 備註：此產品所標示之環保使用期限，係指在一般正常使用狀況下。 EMB-APL3...
