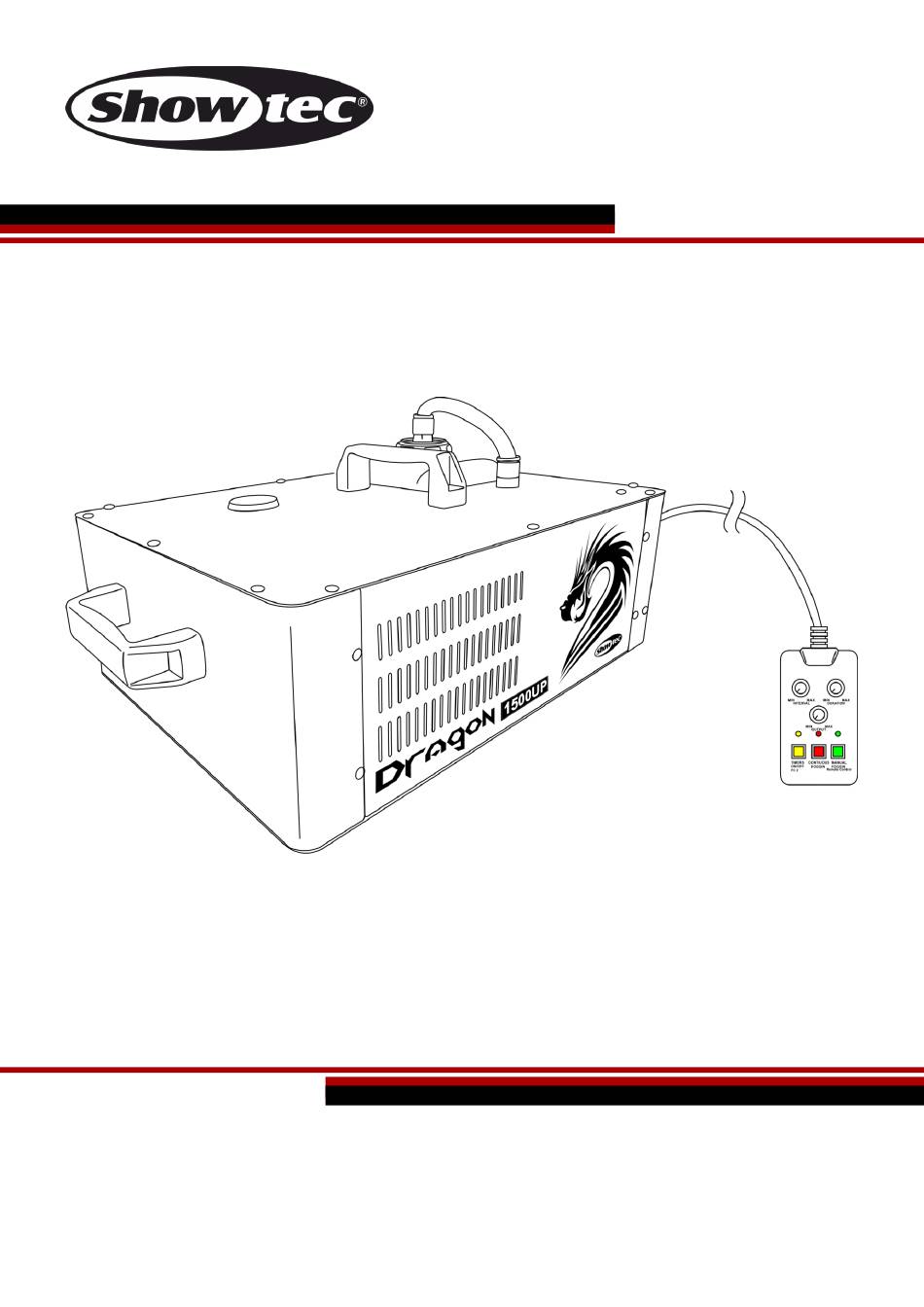

- Page 1 MANUAL ENGLISH Dragon 1500 Upright Ordercode: 61104 Highlit e I nt ernat ional B.V. – Ves t as t raat 2 – 6468 EX – K erkrade – t he Net herlands...
-
Page 2: Table Of Contents
Dragon 1500 Upright Table of contents Warning ................................2 Safety Instructions............................2 Operating Determinations ......................... 4 Rigging ............................... 4 Return Procedure ............................5 Claims................................. 5 Description of the device ..........................6 Frontside ..............................6 Backside ..............................7 Installation ..............................7 Set Up and Operation............................. -
Page 3: Warning
Dragon 1500 Upright Warning Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. - Page 4 If the Dragon fails to work properly, discontinue use immediately. Drain all fog liquid from the tank, pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service. ...
-
Page 5: Operating Determinations
Dragon 1500 Upright The residence time of persons in fog-filled rooms with the visibility lower than 15 m must never exceed 5 minutes. The fog vapour at the point of release is under pressure and is extremely hot. ... -
Page 6: Return Procedure
Dragon 1500 Upright Return Procedure Returned merchandise must be sent prepaid and in the original packi ng, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 7: Description Of The Device
Dragon 1500 Upright Description of the device Features The Dragon 1500 Upright is a powerful fog machine. With the Dragon, you can create a cosy and foggy atmosphere in any venue. Input Voltage: 220-240V AC, 50Hz Power consumption: 1500W ... -
Page 8: Backside
Dragon 1500 Upright Backside Fig. 02 06) 5-pin DIN remote control connector IN 07) LED display + menu buttons 08) 3-pin DMX signal connector IN 09) IEC power connector 220-240V + Fuse F10AL/250V 10) Power switch ON/OFF 11) 3-pin DMX signal connector OUT 12) Fog fluid level indicator Installation Remove all packing materials from the Dragon 1500 Upright. -
Page 9: Set Up And Operation
Dragon 1500 Upright Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. Note: Always monitor fog tank level liquid indicator when making fog! Note: Be careful not to exceed the maximum fluid level. -
Page 10: Multiple Dragons (Dmx Control)
Dragon 1500 Upright Multiple Dragons (DMX Control) 01) Place the effect on the stage floor. Leave at least 1 meter on all sides for air circulation. 02) Plug the end of the electric mains power cord into a proper electric power supply socket. 03) Use a 3-pin XLR cable to connect the Dragons and other devices. -
Page 11: Data Cabling
Dragon 1500 Upright Data Cabling To link fixtures together, you must obtain data cables. You can purchase DAP Audio certified DMX cables directly from a dealer/distributor or construct your own cable. If you choose to create your own cable, please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic interference. -
Page 12: Control Panel
Dragon 1500 Upright The Dragon 1500 Upright can be operated with a controller in control mode or without the controller in stand-alone mode. Control Panel LED display MODE button C) UP button D) DOWN button ENTER button Fig. 05 Control Mode The fixtures are individually addressed on a data-link and connected to the controller. -
Page 13: Menu Overview
Dragon 1500 Upright Menu Overview Main Menu Options DMX address settings (Stand-alone) Fog liquid sensor Heater temperature (Stand-alone) 01) Upon start up, the display will show 02) Wait until the device is ready for operation. It will take approximately 5 minutes. 1. -
Page 14: Heater Temperature
Dragon 1500 Upright Please make sure that you’ve got the correct setting, otherwise the pump will keep run ning, while the tank is empty and the warranty will become void. 04) Press the ENTER button to save changes. 3. Heater temperature With this menu, you can monitor the temperature of the heater. -
Page 15: Maintenance
05) If you are unable to determine the cause of the problem, do not simply continue pushing the remote button, as this may damage the unit. 06) Return the machine to your Showtec dealer. Ordercode: 61104... -
Page 16: Product Specification
Max. ambient temperature t 40°C Max. housing temperature t 80°C Minimum distance: Minimum distance from flammable surfaces: 0,5 m Minimum distance to lighted object: Design and product specifications are subject to change without prior notice. Website: www.Showtec.info Email: service@highlite.nl Ordercode: 61104... -
Page 17: Dimensions
Dragon 1500 Upright Dimensions Ordercode: 61104... -
Page 18: Notes
Dragon 1500 Upright Notes Ordercode: 61104... - Page 19 Dragon 1500 Upright Ordercode: 61104...
- Page 20 ©2015 Showtec...
