- Page 1 MANUAL ENGLISH Dragon 2000 Ordercode: 61103 Highlit e I nt ernat ional B.V. – Ves t as t raat 2 – 6468 EX – K erkrade – t he Net herlands...
-
Page 2: Table Of Contents
Dragon 2000 Table of contents Warning ................................2 Safety Instructions............................2 Operating Determinations ......................... 4 Rigging ............................... 4 Return Procedure ............................5 Claims................................. 5 Description of the device ..........................6 Frontside ..............................6 Backside ..............................7 Installation ..............................7 Set Up and Operation............................. 8 Remote control operation ......................... -
Page 3: Warning
Dragon 2000 Warning Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged fro m shipping or the carton itself shows signs of mishandling. - Page 4 If the Dragon fails to work properly, discontinue use immediately. Drain all fog liquid from the tank, pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service. ...
-
Page 5: Operating Determinations
The fog density must be portioned in a way that the visibility of at least 5 m is preserved - Danger of anxiety state due to missing orientation! The user is responsible for correct positioning and operating of the Dragon 2000. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device. ... -
Page 6: Return Procedure
Dragon 2000 Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 7: Description Of The Device

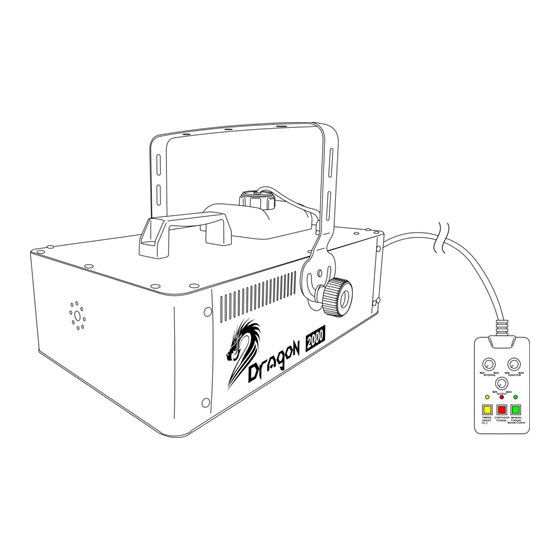

Dragon 2000 Description of the device Features The Dragon 2000 is a powerful fog machine. With the Dragon, you can create a cosy and foggy atmosphere in any venue. Input Voltage: 220-240V AC, 50Hz Power consumption: 2000W ... -
Page 8: Backside
14) 5-pin DIN wireless receiver connector IN (connect the 61120 – Wireless Remote Dragon Series) Installation Remove all packing materials from the Dragon 2000. Check if all foam and plastic padding is removed, especially in the fog output area. Use with fog liquid (ordercodes: 60603, 60629, 60637) or other high-quality fog liquid. Any other types of liquid can damage the unit. -
Page 9: Set Up And Operation
Dragon 2000 Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power , or vice versa. Note: Always monitor fog tank level liquid indicator when making fog! Note: Be careful not to exceed the maximum fluid level. -
Page 10: Multiple Dragons (Dmx Control)
Dragon 2000 Multiple Dragons (DMX Control) 01) Place the effect on the stage floor. Leave at least 1 meter on all sides for air circulation. 02) Plug the end of the electric mains power cord into a proper electric power supply socket. -
Page 11: Data Cabling
Dragon 2000 Data Cabling To link fixtures together, you must obtain data cables. You can purchase DAP Audio certified DMX cables directly from a dealer/distributor or construct your own cable. If you choose to create your own cable, please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic interference. -
Page 12: Control Panel
Dragon 2000 The Dragon 2000 can be operated with a controller in control mode or without the controller in stand- alone mode. Control Panel LED display MODE button C) UP button D) DOWN button ENTER button Fig. 04 Control Mode The fixtures are individually addressed on a data-link and connected to the controller. -
Page 13: Menu Overview
Dragon 2000 Menu Overview Main Menu Options DMX address settings (Stand-alone) Fog liquid sensor Heater temperature (Stand-alone) 01) Upon start up, the display will show 02) Wait until the device is ready for operation. It will take approximately 6 minutes. -
Page 14: Heater Temperature
Fog output ON Maintenance The Dragon 2000 requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply and then wipe the cover with a damp cloth. Wipe the front panel with a damp cloth. Do not use alcohol or solvents. Do not immerse in liquid. -
Page 15: Replacing A Fuse
05) If you are unable to determine the cause of the problem, do not simply continue pushing the remote button, as this may damage the unit. 06) Return the machine to your Showtec dealer. Ordercode: 61103... -
Page 16: Product Specification
Dragon 2000 Product Specification Model: Dragon 2000 Input Voltage: 220-240V AC, 50Hz Power consumption: 2000W Tank capacity: 2,4 L Fluid consumption: 1L/8 min Output volume: 40000 cu.ft/min Warm-up time: 6 min Fuse: F12A/250V Dimensions: 445 x 260 x 278 mm (LxWxH) -
Page 17: Dimensions
Dragon 2000 Dimensions Ordercode: 61103... -
Page 18: Notes
Dragon 2000 Notes Ordercode: 61103... - Page 19 Dragon 2000 Ordercode: 61103...
- Page 20 ©2016 Showtec...
