Summary of Contents for SHOWTEC DRAGON 500

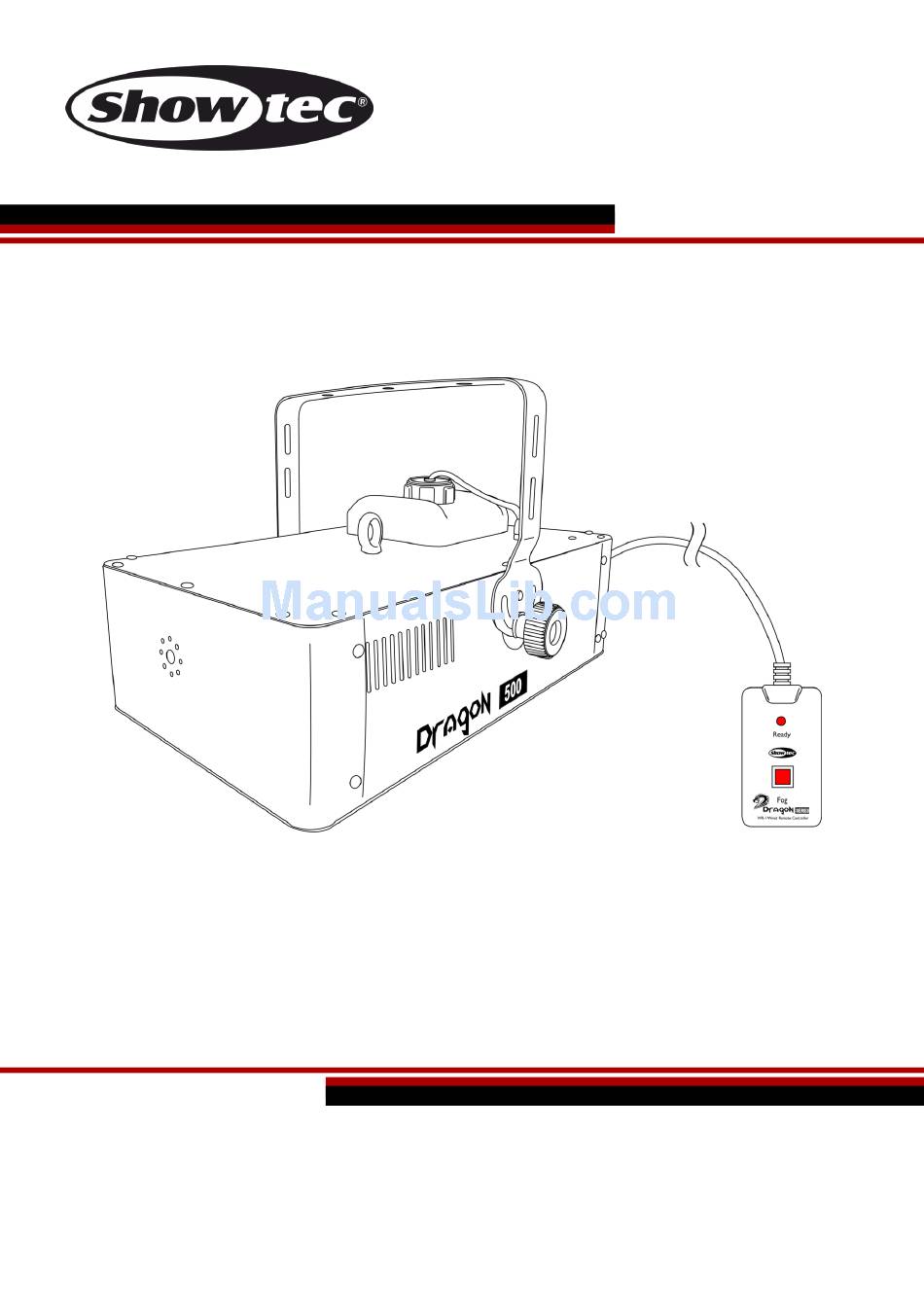

- Page 1 MANUAL ENGLISH Dragon 500 Ordercode: 61100 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Dragon 500 Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................4 Return Procedure ................................5 Claims ....................................5 Description of the device ..............................6 Features ..................................6 Frontside.................................. -
Page 3: Warning
Your shipment includes: Dragon 500 fogger (IEC cable length: 1,5 m) Included: Remote Control; Cable length 3,3 m (cable not detachable) ... - Page 4 If your Showtec Fog Machine fails to work properly, discontinue use immediately. Drain all fog liquid from the tank, pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Dragon 500 Operating Determinations ● This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. ● The maximum ambient temperature ta = 40°C must never be exceeded. -
Page 6: Return Procedure
Dragon 500 Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 7: Description Of The Device

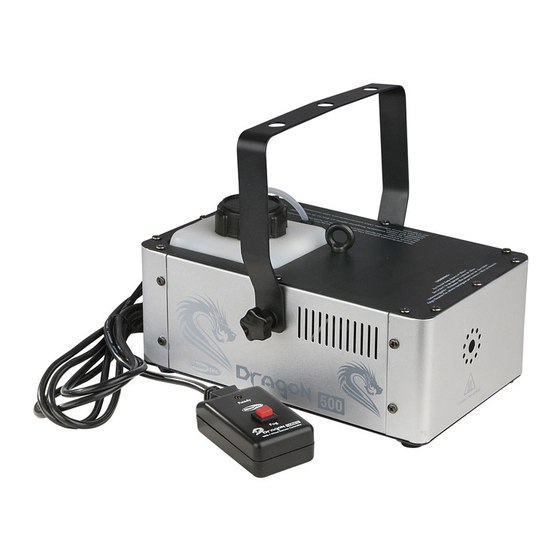

Dragon 500 Description of the device Features The Dragon 500 fogger is a versatile and powerful fogger from Showtec. 400 W Heater Warm-up time approx. 3 min. Fog output 4000cu.ft/min. Easy to operate Powerful output ... -
Page 8: Backside
12) Fog liquid level indicator Installation Remove all packing materials from the Dragon 500 fogger. Check that all foam and plastic padding is removed, especially in the snow output sleeve area. Fill with Fog Liquid (ordercode 60603) or other high-quality water-based fog fluid. Any other types of fluid can damage the unit. -
Page 9: Maintenance
Dragon 500 Maintenance The Dragon 500 fogger requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply and then wipe the cover with a damp cloth. Wipe the front panel with a damp cloth. Do not use alcohol or solvents. Do not immerse in liquid. -
Page 10: Product Specification
Dragon 500 Product Specification Model: Dragon 500 Input Voltage: 240V / 50Hz Power consumption: Max. 500 W Fuse: F3AL / 250V Liquid use: 1L / 80 minutes Fog output 4000cu.ft/min. Warm-up time approx. 3 min. Tank capacity: 0,85 L Power cable length:... -
Page 11: Dimensions
Dragon 500 Dimensions Ordercode: 61100... - Page 12 ©2016 Showtec...
