Summary of Contents for SHOWTEC ShowFog Pro 3000

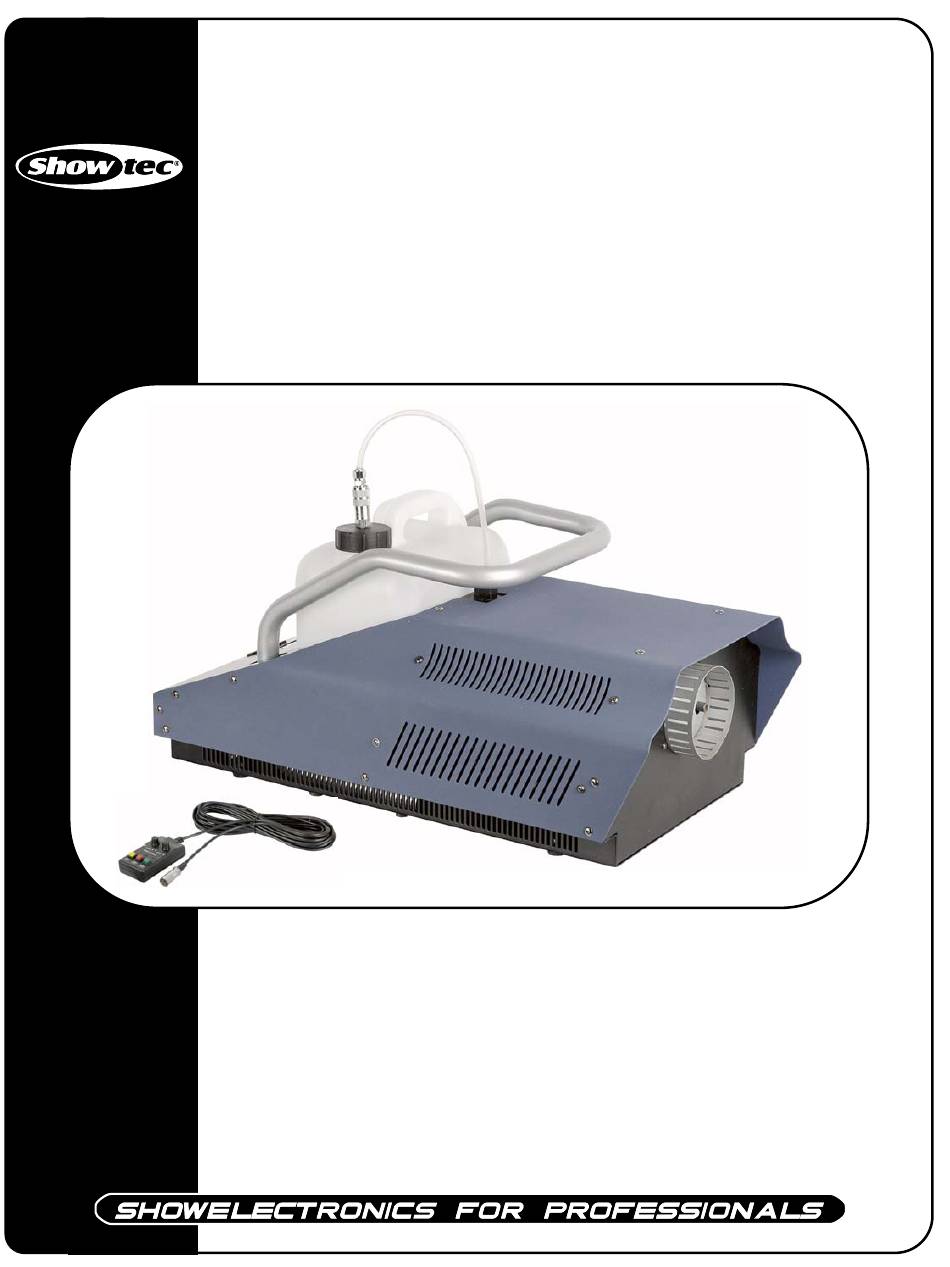

- Page 1 ShowFog Pro 3000 ORDERCODE 60823...
- Page 2 Congratulations! You have bought a great, innovative product from Showtec. The Showtec ShowFog Pro 3000 brings excitement to any venue. Whether you want simple plug-&- play action or a sophisticated DMX show, this product provides the effect you need. You can rely on Showtec, for more excellent lighting products.
- Page 3 Showtec Showtec ShowFog Pro 3000 Product Guide ™ Warning..…...................……………………………………………………… Safety-instructions…………………………………………………………………………………………………….…. Operating Determinations………………………………………………………………………………………….…. Description..…................……….……………………………………………… Features………………………………………………………………………………….……………………………..…. Overview…………………………………………………………………………………………………..……………… Backside…………………………………………………...…...….……………….…………………...….…………….. Installation................…...…………………………………….………………. Installing the fogger............………………………………………..………………….. Set Up and Operation..............……..……………………………….……………. Procedure………….................………………………………………………… Remote control operation..........………………………………………………..……..LCD Remote control operation ……..........…………………………………………………. Menu Functions…….………………………………………………………………………………………………………... DMX Channels….….………………………………………………………………………………………………………... Maintenance...................………..………….…….…………….………….. Performance notes................…………………….………………………..…...
- Page 4 Only use smoke in well ventilated rooms. Only use the high-quality, water-based fog liquid, that your Showtec dealer recommends. (5L fogger fluid ordercode 60603) Other fog liquids may cause poor effect fog, clogging and “spitting” of unevaporated liquid. ...
- Page 5 If your Showtec Fog Machine fails to work properly, discontinue use immediately. Drain all fog liquid from the tank, pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service. ...
-
Page 6: Description Of The Device
Description of the device Features ShowFog Pro 3000 fogger is a versatile and powerful fogger from Showtec. • 3000 W Heater • Warm-up time approx.15 min. • Fog output 40000cu.ft/min. • Tank Capacity: 6L. • 2 DMX channels • DMX Onboard •... - Page 7 Backside Fig. 2 4) LCD Display + Menu Buttons 5) IEC Fan Connection 6) Fuse 10A 250V 7) AC 220~240V 8) Earth Connection 9) Remote control input 10) DMX IN 10) DMX IN 11) DMX OUT 18 20 19 21 Fig.
-
Page 8: Installation
4. Connect a fan to the IEC socket. You can control the percentage of fan power to blow the smoke in the direction of your audience. This option only works when the device is DMX controlled. 5. For further information on operating your Showtec Fog Machine, see Remote Control Operation. Remote Control Operation Its two controls (1+2) knobs allow the operator to customize fog machine functions by adjusting output duration and interval. - Page 9 LCD Remote Control Operation 18 20 19 21 Fig. 3 If you press the MODE button, you can scroll through the menu options. Menu Functions: 1) Op mode Remote 2) Switch off? 3) Op DMX mode 4) Op mode Manual 5) Op mode Time 1) Press the Mode button (16) once to enter the first menu option, the display shows: You can use the wired remote control to start fogging (also see Remote Control operation Page 6.)
-
Page 10: Dmx Channels
4) Press the Mode button (16) four times to enter the fourth menu option, the display shows: You can use the Up/ Down button (18+19) to change the Fog percentage from 0-100%. When you press the LEFT/Right Button (17), the display shows: Now you can change the fan percentage from 0-100%. -
Page 11: Maintenance
Maintenance The ShowFog Pro 3000 fogger requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Please clean internal components once a year with a light brush and vacuum cleaner. Do not use alcohol or solvents. -
Page 12: Product Specification
Product Specification Model: Showtec ShowFog Pro 3000 Fogger Voltage: AC 230V-50Hz (CE) Power consumption: 3000W(230V) Warm-up time: approx. 15 min. Output: 20000cu.ft/min. Tank Capacity: 6L. 2 DMX channel Dimensions: 580x325x275mm. (LxWxH) Weight: 21,4 Kg Design and product specifications are subject to change without prior notice.
