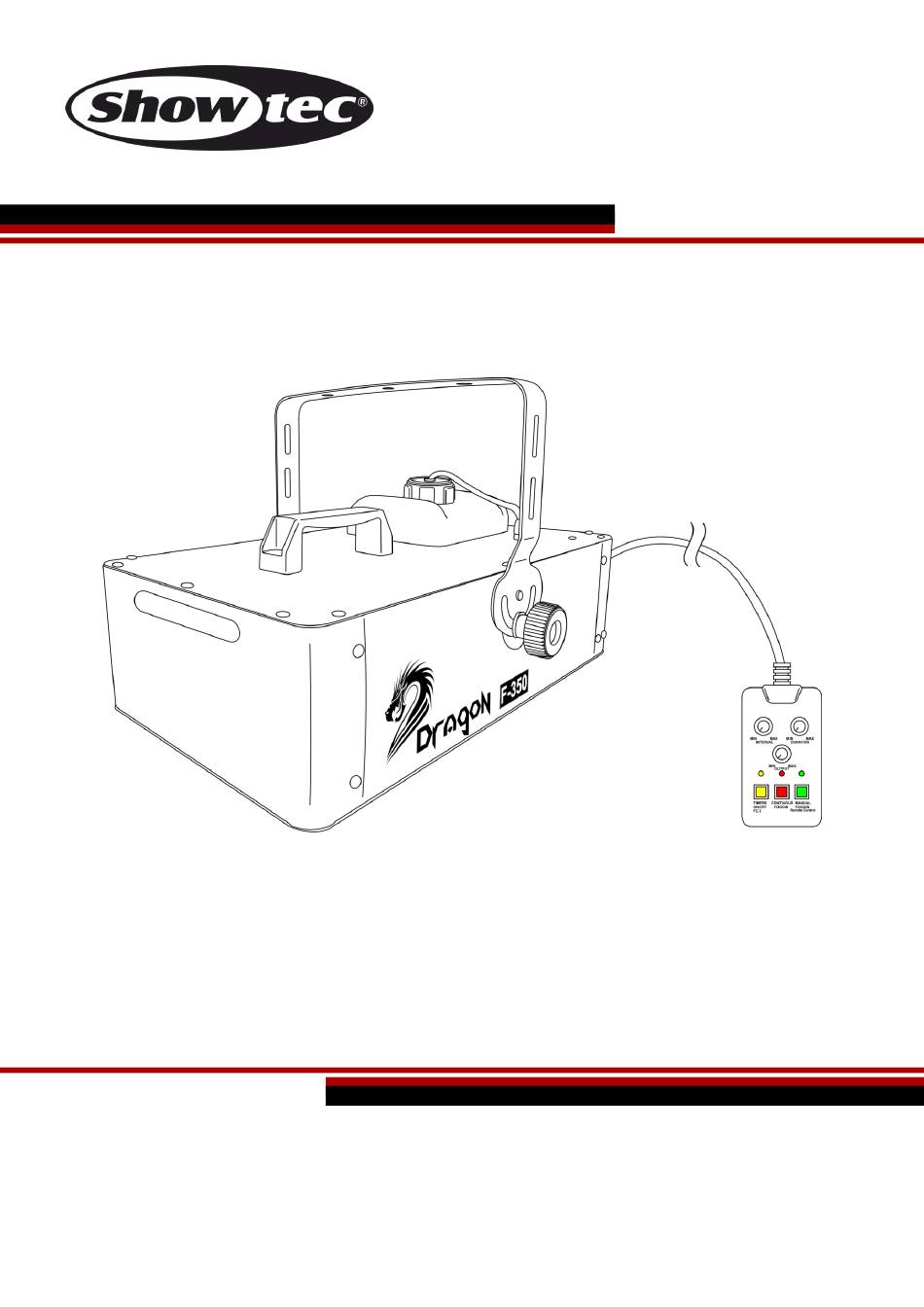

- Page 1 MANUAL ENGLISH Dragon F-350 Fazer Ordercode: 61108 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Dragon F-350 Fazer Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................4 Return Procedure ................................5 Claims ....................................5 Description of the device ..............................6 Features ..................................6 Frontside.................................. -
Page 3: Warning
Dragon F-350 Fazer Warning Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. - Page 4 If your Showtec Fog Machine fails to work properly, discontinue use immediately. Drain all fog liquid from the tank, pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Dragon F-350 Fazer Operating Determinations ● This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. ● The maximum ambient temperature ta = 40°C must never be exceeded. -
Page 6: Return Procedure
Dragon F-350 Fazer Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 7: Description Of The Device
Dragon F-350 Fazer Description of the device Features The Dragon F-350 fazer is a versatile and powerful fazer from Showtec. 1000 W Heater Warm-up time approx. 3 min. Fog output 2000cu.ft/min. Smooth even output Create a thin haze of fog ... -
Page 8: Backside
14) Fog fluid level indicator Installation Remove all packing materials from the Dragon F-350 fazer. Check that all foam and plastic padding is removed, especially in the output area. Fill with Fog Liquid (ordercode 60603, 60629, 60637) or other high-quality water-based fog fluid. Any other types of fluid can damage the unit. -
Page 9: Set Up And Operation
Dragon F-350 Fazer Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. Note: Always monitor tank fluid level as you are fogging! Note: Be careful not to exceed the maximum fluid level. -
Page 10: Control Modes
Dragon F-350 Fazer Control Modes There are 2 modes: • Stand-alone mode • DMX-512 (1CH) One Dragon (Stand-alone) 01) Place the effect on the flat stage floor. Leave at least 0,5 meter on all sides for air circulation. 02) Plug the end of the electric mains power cord into a proper electric power supply socket. -
Page 11: Data Cabling
Dragon F-350 Fazer Data Cabling To link fixtures together, you must obtain data cables. You can purchase DAP Audio certified DMX cables directly from a dealer/distributor or construct your own cable. If you choose to create your own cable, please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic interference. -
Page 12: Control Panel
Dragon F-350 Fazer The Dragon F-350 fazer can be operated with a controller in control mode or without the controller in stand-alone mode. Control Panel A) LED display MODE button C) UP button D) DOWN button ENTER button Fig. 05 Control Mode The fixtures are individually addressed on a data-link and connected to the controller. -
Page 13: Menu Overview
Dragon F-350 Fazer Menu Overview Main Menu Options DMX address settings (Stand-alone) Fog liquid sensor Heater temperature (Stand-alone) 01) Upon start up, the display will show 02) Wait until the device is ready for operation. It will take approximately 6 minutes. -
Page 14: Heater Temperature
Dragon F-350 Fazer 3. Heater temperature With this menu, you can monitor the temperature of the heater. 01) Press the MODE button, until the display shows 02) Press the ENTER button to open the menu. 03) Now you can monitor the temperature of the heater. -
Page 15: Maintenance
Dragon F-350 Fazer Maintenance The Dragon F-350 fazer requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply and then wipe the cover with a damp cloth. Wipe the front panel with a damp cloth. Do not use alcohol or solvents. Do not immerse in liquid. -
Page 16: Product Specification
Dragon F-350 Fazer Product Specification Model: Dragon F-350 Fazer Input Voltage: 220 - 240V / 50Hz Power consumption: Max. 1000 W Liquid use: 1L / 55 min. (full output) Fog output 2000cu.ft/min. Warm-up time approx. 3 min. Tank capacity: 1,3 L... -
Page 17: Dimensions
Dragon F-350 Fazer Dimensions Ordercode: 61108... -
Page 18: Notes
Dragon F-350 Fazer Notes Ordercode: 61108... - Page 19 Dragon F-350 Fazer Ordercode: 61108...
- Page 20 ©2016 Showtec...
