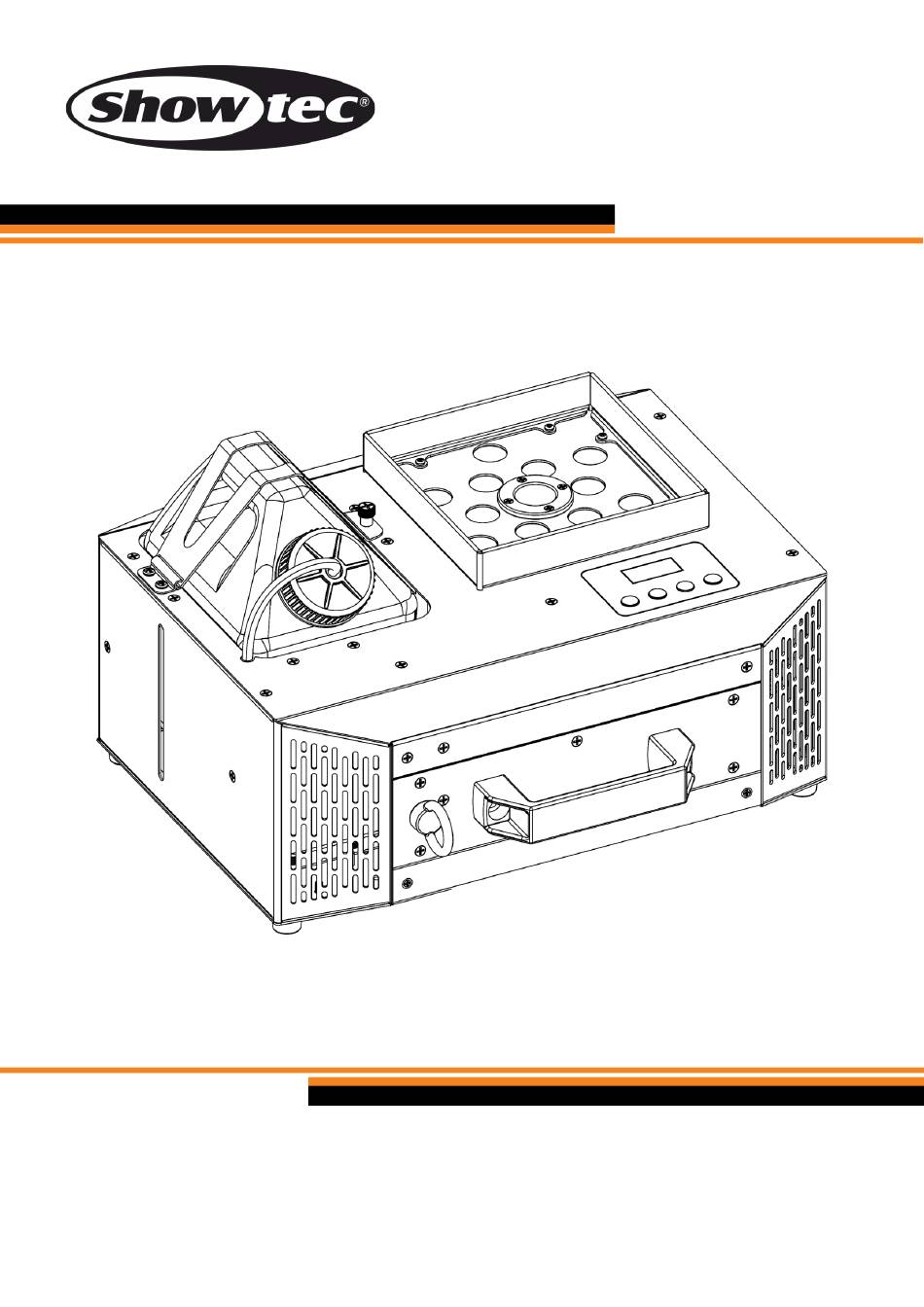

- Page 1 USER MANUAL ENGLISH Stellar UF-1000 Upright Fogger Product code: 61113 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 Stellar UF-1000 Upright Fogger Preface Thank you for purchasing this Showtec product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
Stellar UF-1000 Upright Fogger Table of contents Introduction ................................4 Before Using the Product ..........................4 Intended Use ............................... 4 Product Lifespan ..............................4 Text Conventions ..............................4 Symbols and Signal Words ..........................5 Symbols on the Information Label ........................5 Safety .................................. - Page 4 Stellar UF-1000 Upright Fogger Color presets ..............................36 Troubleshooting ..............................37 Maintenance ..............................38 Safety Instructions for Maintenance ......................38 Preventive Maintenance ..........................38 Basic Cleaning Instructions ........................38 Cleaning the Fluid Pipes ........................39 Corrective Maintenance ..........................39 Deinstallation, Transportation and Storage ....................40 Instructions for Deinstallation ..........................40 Instructions for Transportation ........................40...
-
Page 5: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● Showtec Stellar UF-1000 Upright Fogger ● Schuko to Power Pro cable (1,5 m) ● User manual Fig. -
Page 6: Symbols And Signal Words
Stellar UF-1000 Upright Fogger Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER death or serious injury. -
Page 7: Safety
Stellar UF-1000 Upright Fogger Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions... - Page 8 Stellar UF-1000 Upright Fogger WARNING Risk of burns due to hot surface The fog output nozzle becomes very hot during operation. ● Do not touch the fog output nozzle during operation or shortly after use. ● Allow the device cool down for several hours before servicing or maintenance.
- Page 9 Stellar UF-1000 Upright Fogger Attention Power supply ● Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device. ●...
-
Page 10: Requirements For The User
Stellar UF-1000 Upright Fogger Attention Do not expose the device to conditions that exceed the rated IP class conditions. This device is IP20 rated. IP (Ingress Protection) 20 class provides protection against solid objects greater than 12 mm, such as fingers, and no protection against harmful ingress of water. -
Page 11: Description Of The Device
Description of the Device The Showtec Stellar UF-1000 is an upright fog machine with a 1000-watt heater that can mimic the popular CO₂ effect. The unit can be used in any orientation and it has built-in RGB LEDs that can be used to change the colour of the fog. -
Page 12: Back View
Stellar UF-1000 Upright Fogger Back View Fig. 03 11) 3-pin DMX connector IN 12) 5-pin DMX connector IN 13) 5-pin DMX connector OUT 14) 3-pin DMX connector OUT 15) 6,3 mm jack for remote control 16) 220–240 V Power Pro connector IN (Blue) -
Page 13: Product Specifications
Stellar UF-1000 Upright Fogger Product Specifications Model: Stellar UF-1000 Upright Fogger Electrical: Input voltage: 220–240 V AC, 50/60 Hz Power consumption: 1100 W Fuse: NFB 6A /250 V Physical: Dimensions: 344 x 362 x 216 mm (LxWxH) Weight: 9,9 kg... -
Page 14: Dimensions
Stellar UF-1000 Upright Fogger Dimensions Fig. 04 Product code: 61113... -
Page 15: Installation And Setup
Stellar UF-1000 Upright Fogger Installation and Setup Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing. - Page 16 Stellar UF-1000 Upright Fogger To mount the device, follow the steps below: Use a clamp to attach the device to the supporting structure, as shown in Fig. 05. Make sure that the device cannot move freely. 02) Secure the device with a secondary suspension, for example a safety cable. Make sure that the secondary suspension can hold 10 times the weight of the device.
- Page 17 Stellar UF-1000 Upright Fogger Upside-down mounting The device can be positioned vertically / upside-down mounted to a truss. Make sure that all loads are within the pre-determined limits of the supporting structure. CAUTION Restrict the access under the work area during rigging and/or derigging.
- Page 18 Stellar UF-1000 Upright Fogger Tilt the bracket for liquid tank (03), as shown in Fig. 10. Unscrew the 2 screws of the bracket, as shown in Fig. 11. Fig. 10 Fig. 11 Remove the2 screws and the bracket for liquid tank (03), as shown in Fig. 12.
- Page 19 Stellar UF-1000 Upright Fogger Pull the rubber hose out of the hole on the front, as shown in Fig. 16. Slide the rubber hose and the lid to the back of the device, as shown in Fig. 17. Fig. 16 Fig.
- Page 20 Stellar UF-1000 Upright Fogger Screw the lid back on the fluid tank, as shown in Fig. 22. Tilt the bracket for liquid tank (03), as shown in Fig. 23. Fig. 22 Fig. 23 Tighten the safety screw for tank bracket (04), as shown in Fig. 24.
-
Page 21: Connecting To Power Supply
Stellar UF-1000 Upright Fogger Connecting to Power Supply DANGER Electric shock caused by short-circuit The device accepts AC mains power at 220–240 V and 50/60 Hz. Do not supply power at any other voltage or frequency to the device. This device falls under IEC protection class I. Make sure that the device is always electrically connected to the ground (earth). -
Page 22: Setup
Disconnect power supply before connecting or disconnecting data cables. Stand-alone Setup When the Stellar UF-1000 Upright Fogger is not connected to a controller or to other devices, it functions as a stand-alone device. It can be operated manually. For more information about the control mode, refer to 6.7.4.5. DMX Address on page 34. -
Page 23: Dmx Cables
Stellar UF-1000 Upright Fogger DMX Cables Shielded twisted-pair cables with 3-pin/5-pin XLR connectors must be used for reliable DMX connection. You can purchase DMX cables directly from your Highlite International dealer or make your own cables. If you use 3-pin XLR audio cables for DMX data transmission, this may lead to signal degradation and unreliable operation of the DMX network. -
Page 24: Dmx Addressing
04) Continue assigning the starting addresses of the remaining devices by adding each time 7 to the previous number. Make sure that you do not have any overlapping channels in order to control each Stellar UF-1000 Upright Fogger correctly. If two or more devices are addressed similarly, they will work similarly. -
Page 25: Operation
Stellar UF-1000 Upright Fogger Operation Safety Instructions for Operation Attention This device must be used only for the purposes it is designed for. This device is designed to be used as a professional fog effect. Any incorrect use may lead to hazardous situations and result in injuries and material damage. -
Page 26: Filling The Tank
Stellar UF-1000 Upright Fogger Filling the Tank WARNING Risk of explosion caused by incorrect handling ● Do not add flammable liquids such as perfume and alcohol to the fog fluid. ● Operate the device only with the fluids recommended in this user manual. - Page 27 Stellar UF-1000 Upright Fogger Place the fluid tank (02) on a flat surface near the device, as shown in Fig. 32. Use a funnel to pour the fog fluid into the tank, as shown in Fig. 33. Fig. 32 Fig. 33 Fill the fluid container with the recommended fog fluid ( Max.
- Page 28 Stellar UF-1000 Upright Fogger Tilt the bracket for liquid tank (03), as shown in Fig. 36. Tighten the safety screw for tank bracket (04), as shown in Fig. 37. Fig. 36 Fig. 37 Note: ● Do not allow the fog liquid to become contaminated. Always replace the caps on the fog liquid container and the fog machine liquid tank immediately after filling.
-
Page 29: Emptying The Tank After Operation
Stellar UF-1000 Upright Fogger Emptying the Tank after Operation To empty the tank, follow the steps below: Do not disconnect the safety cable. Unscrew the safety screw for tank bracket (04), as shown in Fig. 38. Tilt the bracket for liquid tank (03), as shown in Fig. 39. - Page 30 Stellar UF-1000 Upright Fogger Place the fluid tank (02) on a flat service near the device, as shown in Fig. 42. Use a funnel to pour the fog fluid from the tank into original fog fluid jerry can, as shown in Fig. 43.
-
Page 31: Restarting The Device After Running The Tank Empty
Make sure you fill the entire tank, let the device reheat and then manually start fogging. This will take a few seconds until the completely emptied lines are filled with fog fluid. Control Modes The Stellar UF-1000 Upright Fogger supports the following control modes: ● Manual (start/pause button) ●... -
Page 32: Manual Operation
Stellar UF-1000 Upright Fogger Manual Operation To set up the device, follow the steps below: Fill the tank (Fluid Tank Capacity 2 L). See 6.3. Filling the Tank on pages 25–27 for more information. Connect the power cable before supplying power to the device. See 4.6. Connecting to Power Supply on page 20 for more information. -
Page 33: Start-Up
Stellar UF-1000 Upright Fogger Start-up Upon start-up, the display shows the current software version. Before you are able to see the main menu or change settings, you have to wait until the device is fully heated. The display shows: When the device is fully heated, the display shows:... -
Page 34: Main Menu Options
Stellar UF-1000 Upright Fogger Main Menu Options The main menu has the following options: Press the MENU button to navigate through the main menu. Key A In this menu you can set LED color for remote button A. Press the UP/DOWN buttons to set the desired LED color for remote button A. The adjustment range is M0–... -
Page 35: Key D
Stellar UF-1000 Upright Fogger Key D In this menu you can set LED color for remote button D. Press the UP/DOWN buttons to set the desired LED color for remote button D. The adjustment range is M0– M66. M0 = OFF, M1–M66 are different colors. See 6.10. Color Presets on page 36 for more information. -
Page 36: Dmx Operation
Stellar UF-1000 Upright Fogger DMX Operation To setup up the device, follow the steps below: Fill the tank (Fluid Tank Capacity 2 L). See 6.3. Filling the Tank on pages 25–27 for more information. Connect the DMX cables before supplying power to the device. See 5.3. DMX Connection on page 21 for more information Connect the power cable before supplying power to the device. -
Page 37: Color Presets
Stellar UF-1000 Upright Fogger Color presets Color 0 A 000 R 000; G 000; B 000 001–004 Color 1 A 255 R 000 G 000; B 000 005–008 Color 2 A 000 R 255; G 000; B 000 009–012 Color 3 A 000 R 000;... -
Page 38: Troubleshooting
Stellar UF-1000 Upright Fogger Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 39: Maintenance
Stellar UF-1000 Upright Fogger Maintenance Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing or cleaning. WARNING Risk of burns due to hot surface Allow the device to cool down for at least 15 minutes before servicing or cleaning. -
Page 40: Cleaning The Fluid Pipes
Stellar UF-1000 Upright Fogger Cleaning the Fluid Pipes The device must be cleaned periodically from the fog fluid residues. After every 40 hours of continuous operation, it is recommended to run a cleaning solution composed of 80 % distilled water and 20 % white vinegar through the system. -
Page 41: Deinstallation, Transportation And Storage
Stellar UF-1000 Upright Fogger Deinstallation, Transportation and Storage Instructions for Deinstallation WARNING Incorrect deinstallation can cause serious injuries and damage of property. ● Let the device cool down before dismounting. ● Disconnect power supply before deinstallation. ● Always observe the national and site-specific regulations during deinstallation and derigging of the device. - Page 42 Stellar UF-1000 Upright Fogger Product code: 61113...
- Page 43 Stellar UF-1000 Upright Fogger Product code: 61113...
- Page 44 ©2024 Showtec...
