- Page 1 Z-1020 ORDERCODE 60677...
- Page 2 New products are being launched regularly. We work hard to keep you, our customer, satisfied. You can get some of the best quality, best priced products on the market from Antari. So next time, turn to Antari for more great equipment.
-
Page 3: Table Of Contents
Antari Antari Fogger Product Guide ™ Warning..…...................………………………………………….. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Description..…................……….………………………………… Features………………………………………………………………………………….………………….…. Overview…………………………………………………………………………………………………..…… Backside…………………………………………………...…...….……………….…………………...….….. Installation................…...…………………………………….…… Installing the fogger............………………………………………..………… Set Up and Operation..............……..……………………………….… Procedure………….................……………………………………… Optional Remote control operation..........…………………………………….. Z-40 Controls……................……………………………………… DMX Setting………………………………………………………………………………………………………. DMX Dipswitch setting......……………………………………………………………………… DMX Quick Reference Chart…………………………………………………………………………………. Maintenance...................………..………….…….……………... Performance notes................…………………….……………….…... -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! Unplug mains lead before filling the tank! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device have to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. - Page 5 The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. If your Antari Fog Machine fails to work properly, discontinue use immediately. Drain all fog liquid •...
-
Page 6: Operating Determinations
Operating instructions: This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. The minimum distance between light-output and the illuminated surface must be more than 0,5 meters. The maximum ambient temperature t = 45°C must never be exceeded. -
Page 7: Description

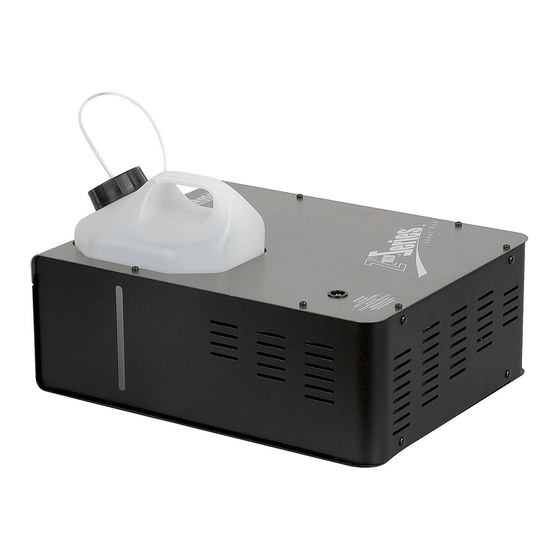

Description of the device Features The Z-1020 fogger is a small, versatile and yet powerful fogger from Antari. • 1000 W Heater • Warm-up time approx. 4,5 min. • Fog output min. 285m • Tank Capacity: 2.5L. • Fluid Consumption Rate: 24 Min./L. (100% Output) •... -
Page 8: Backside
Backside Fig. 2 4) ON / OFF 5) Remote control input 6) IEC Connector + Fuse 7) DMX OUT 8) Dip Switches 9) DMX IN... -
Page 9: Installation
2. To emit fog, press the button on the remote and hold for the desired length of time. 3. The remote unit’s lamp will cycle on and off as the machine re-heats to the proper operating temperature. 4. For further information on operating your Antari Fog Machine, see Optional Remote Control Operation. -
Page 10: Optional Remote Control Operation
Optional Remote Control Operation Z-40 Timer Remote control: Ordercode: 60690 Z-50 Wireless Remote control: Ordercode: 60678 Cable Length: 10m Cable Length: Wireless, up to 50 m Connector: 6,3mm Stereo Jack Connector: 6,3mm Stereo Jack Function: timer with interval and duration; Function: Wireless ON/OFF manual on/off Compatible with: Z-800II, Z-1000II,Z-1020,... -
Page 11: Dmx Setting
Note: In the example above, if the machine were assigned the DMX address of 130, Channel A would correspond to DMX address 130. In general, Antari fog machines with onboard DMX conform to the following performance specifications: 1. Average Operating temperature = 250ºC 2. -
Page 12: Dmx Dipswitch Setting
DMX Dip Switch Setting DMX products must have their own "address" to receive DMX signals. Addresses on the Showtec Z-1020 are set by flipping the appropriate DMX dipswitches. A standard DMX address for a Showtec Z-1020, which has 1 channel is as follow: Z-1020 Address Value DMX Dip Switches "ON"... - Page 13 DMX Address Quick Reference Chart Dip Switch Position DMX DIP SWITCH SET 0=OFF 1=ON Dip Switch Position DMX Address...
-
Page 14: Maintenance
Make sure the fogger isn’t warming up. 5. If you are unable to determine the cause of the problem, do not simply continue pushing the remote button, as this may damage the unit. 6. Return the machine to your Antari dealer. -
Page 15: Product Specifications
Product Specification Model: Antari Z-1020 Fogger Voltage: AC 230V-50Hz (CE) Power consumption: 1000W(230V) Warm-up time: approx. 4,5 min. Output: 285m /min. Tank Capacity: 2.5L. Fluid Consumption Rate: 24 Min./L.(100% Output) 1 DMX channel Dimensions 370x295x135mm Weight: 9,7 kg Included: Z-10 Remote Control; Cable length 10m.
