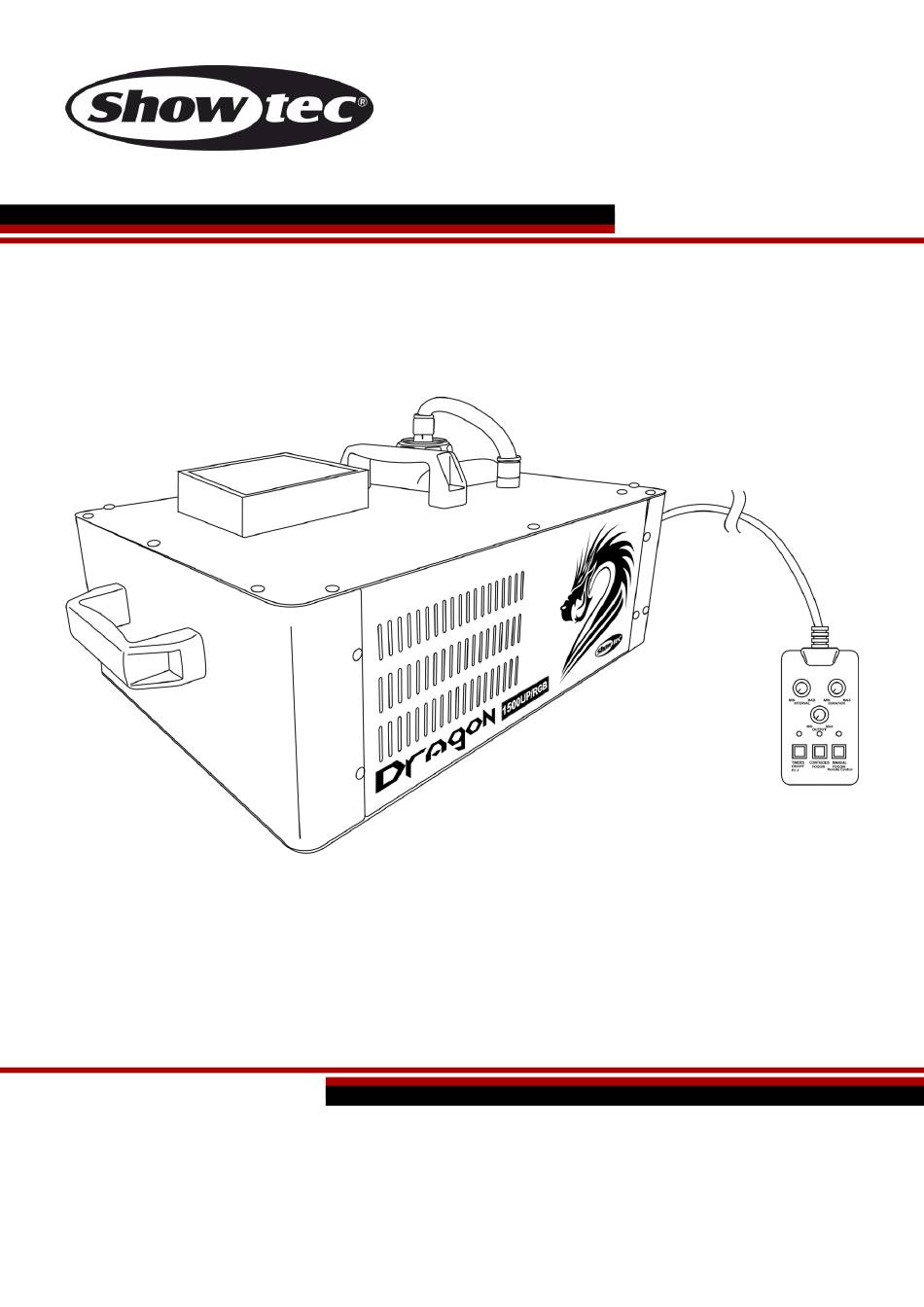

- Page 1 MANUAL ENGLISH Dragon 1500 Upright RGB Ordercode: 61105 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Dragon 1500 Upright RGB Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Return Procedure ................................5 Claims ....................................5 Description of the device ..............................6 Frontside..................................6 Backside ..................................7 Installation ................................... 7 Set Up and Operation ............................... -
Page 3: Warning
Dragon 1500 Upright RGB Warning Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. - Page 4 If the Dragon fails to work properly, discontinue use immediately. Drain all fog liquid from the tank, pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service. ...
-
Page 5: Operating Determinations
The user is responsible for correct positioning and operating of the Dragon 1500 Upright RGB. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device. -
Page 6: Return Procedure
Dragon 1500 Upright RGB Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 7: Description Of The Device
Dragon 1500 Upright RGB Description of the device Features The Dragon 1500 Upright RGB is a powerful fog machine equipped with RGB LEDs. With the Dragon, you can create a cosy and foggy atmosphere in any venue. Input Voltage: 220-240V AC, 50Hz ... -
Page 8: Backside
12) Fog fluid level indicator Installation Remove all packing materials from the Dragon 1500 Upright RGB. Check if all foam and plastic padding is removed, especially in the fog output area. Use with fog liquid (ordercodes: 60603, 60629, 60637) or other high-quality fog liquid. Any other types of liquid can damage the unit. -
Page 9: Set Up And Operation
Dragon 1500 Upright RGB Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. -
Page 10: Control Modes
Dragon 1500 Upright RGB Control Modes There are 2 modes: • Stand-alone mode • DMX-512 (8CH) One Dragon (Stand-alone) 01) Place the effect on the flat stage floor. Leave at least 0,5 meter on all sides for air circulation. 02) Plug the end of the electric mains power cord into a proper electric power supply socket. -
Page 11: Data Cabling
Dragon 1500 Upright RGB Multiple Dragons DMX Set Up Fig. 04 Note: Link all cables before connecting electric power Data Cabling To link fixtures together, you must obtain data cables. You can purchase DAP Audio certified DMX cables directly from a dealer/distributor or construct your own cable. If you choose to create your own cable, please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic interference. -
Page 12: Control Panel
Dragon 1500 Upright RGB The Dragon 1500 Upright RGB can be operated with a controller in control mode or without the controller in stand-alone mode. Control Panel A) LED display MODE button C) UP button D) DOWN button ENTER button Fig. -
Page 13: Menu Overview
Dragon 1500 Upright RGB Menu Overview Main Menu Options DMX address settings (Stand-alone) Fog liquid sensor (Stand-alone) Macro Color (Stand-alone) Heater temperature (Stand-alone) 01) Upon start up, the display will show 02) Wait until the device is ready for operation. It will take approximately 5 minutes. -
Page 14: Macro Colors
Dragon 1500 Upright RGB 3. Macro Colors With this menu, you can set a macro color. 01) Press the MODE button, until the display shows 02) Press the ENTER button to open the menu. 03) Press the UP/DOWN buttons to choose: is blackout. -
Page 15: Maintenance
Dragon 1500 Upright RGB Maintenance The Dragon 1500 Upright RGB requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply and then wipe the cover with a damp cloth. Wipe the front panel with a damp cloth. Do not use alcohol or solvents. Do not immerse in liquid. -
Page 16: Troubleshooting
Response: Suspect three potential problem areas as: the power supply, the LEDs, the fuse. 01) Power supply. Check if the unit is plugged into an appropriate power supply. 02) The LEDs. Return the Dragon 1500 to your Showtec dealer. 03) The fuse. See page 14 for replacing the fuse 04) If all of the above appears to be O.K., plug the unit in again. - Page 17 Dragon 1500 Upright RGB Problem Probable cause(s) Remedy One or more No power to the fixture. ● Check that power is switched on and fixtures are cables are plugged in. completely dead. Primary fuse blown. ● Replace fuse. Fixtures reset The controller is not connected.
-
Page 18: Product Specification
Dragon 1500 Upright RGB Product Specification Model: Dragon 1500 Upright RGB Input Voltage: 220-240V AC, 50Hz Power consumption: 1500W Tank capacity: 2,4 L Fluid consumption: 1 L/7 min Output volume: 30000 cu.ft/min Warm-up time: 5 min Fuse: F10AL/250V Dimensions: 400 x 300 x 148 mm (LxWxH) -
Page 19: Dimensions
Dragon 1500 Upright RGB Dimensions Ordercode: 61105... - Page 20 ©2016 Showtec...
