Summary of Contents for SHOWTEC Stellar F-1000

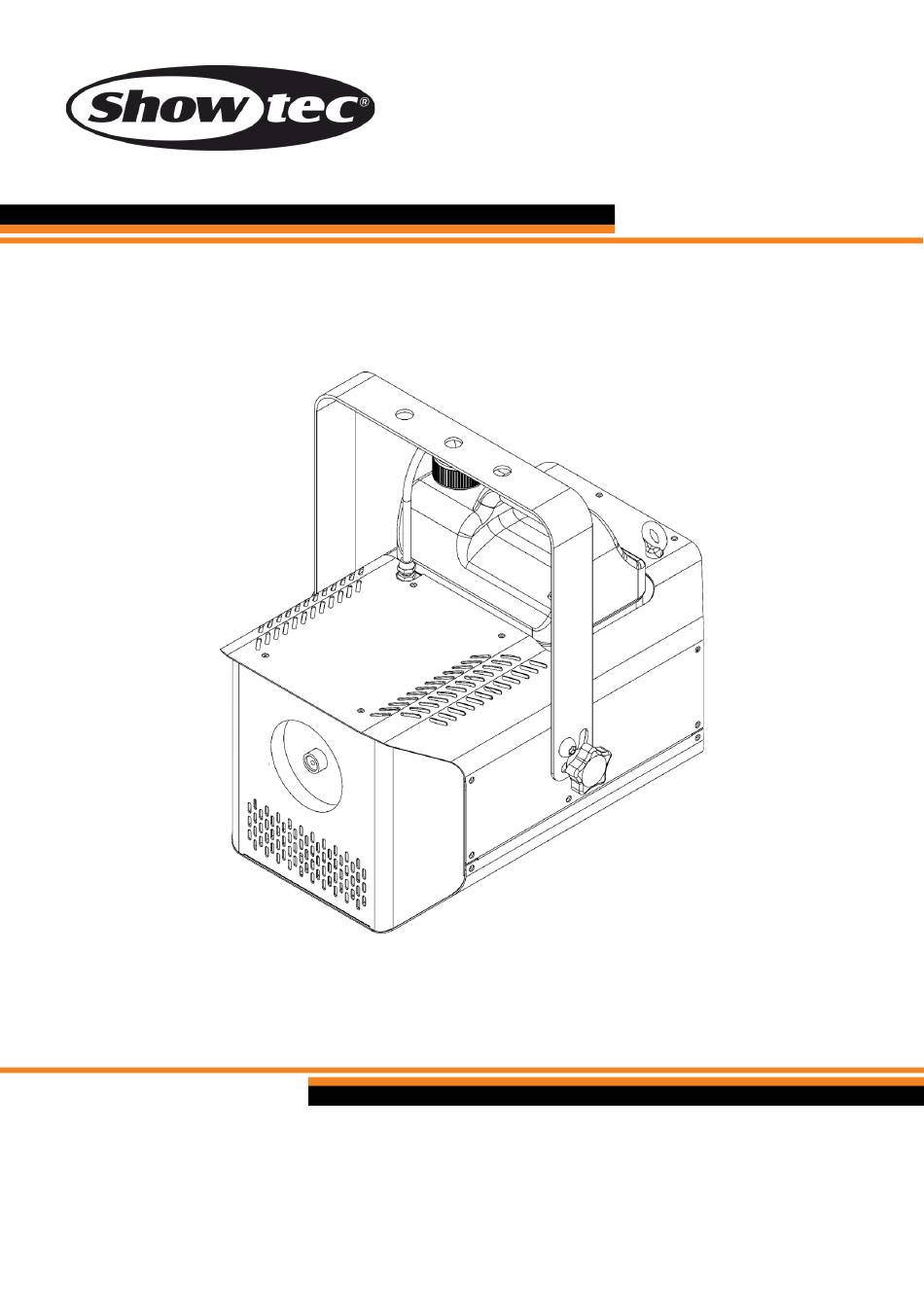

- Page 1 USER MANUAL ENGLISH Stellar F-1000 Fogger Product code: 61111 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 Stellar F-1000 Fogger Preface Thank you for purchasing this Showtec product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
Stellar F-1000 Fogger Table of contents Introduction ................................4 Before Using the Product ..........................4 Intended Use ............................... 4 Product Lifespan ..............................4 Text Conventions ..............................4 Symbols and Signal Words ..........................5 Symbols on the Information Label ........................5 Safety .................................. - Page 4 Stellar F-1000 Fogger Maintenance ..............................31 Safety Instructions for Maintenance ......................31 Preventive Maintenance ..........................31 Basic Cleaning Instructions ........................31 Cleaning the Fluid Pipes ........................32 Corrective Maintenance ..........................32 Deinstallation, Transportation and Storage ....................33 Instructions for Deinstallation ..........................33 Instructions for Transportation ........................33 Storage ................................33...
-
Page 5: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● Showtec Stellar F-1000 Fogger ● Schuko to Power Pro cable (1,5 m) ● User manual Fig. -
Page 6: Symbols And Signal Words
Stellar F-1000 Fogger Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER death or serious injury. -
Page 7: Safety
Stellar F-1000 Fogger Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions... - Page 8 Stellar F-1000 Fogger WARNING Risk of burns due to hot surface The fog output nozzle becomes very hot during operation. ● Do not touch the fog output nozzle during operation or shortly after use. ● Allow the device cool down for several hours before servicing or maintenance.
- Page 9 Stellar F-1000 Fogger Attention Power supply ● Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device. ● Make sure that the cross-sectional area of the extension cords and power cables is sufficient for the required power consumption of the device.
-
Page 10: Requirements For The User
Stellar F-1000 Fogger Attention Do not expose the device to conditions that exceed the rated IP class conditions. This device is IP20 rated. IP (Ingress Protection) 20 class provides protection against solid objects greater than 12 mm, such as fingers, and no protection against harmful ingress of water. -
Page 11: Description Of The Device
Description of the Device The Stellar F-1000 is a compact fog machine with a robust, modern design. It has a 1000-watt heater and is ready to pump out fog within 3 minutes of turning it on. It can be controlled manually with the help of a clear LCD display, via DMX or with an optional remote control. -
Page 12: Back View
Stellar F-1000 Fogger Back View Fig. 03 06) LCD display + control buttons 07) 3-pin DMX connector IN 08) 3-pin DMX connector OUT 09) 5-pin DMX connector IN 10) 5-pin DMX connector OUT 11) 220–240 V Power Pro connector IN (Blue) -
Page 13: Product Specifications
Stellar F-1000 Fogger Product Specifications Model: Stellar F-1000 Fogger Electrical: Input voltage: 220–240 V AC, 50 Hz Power consumption: 1020 W Fuse: NFB 16A /250 V Physical: Dimensions: 348 x 291 x 337 mm (LxWxH) Weight: 7 kg Fogger capacity:... -
Page 14: Dimensions
Stellar F-1000 Fogger Dimensions Fig. 04 Product code: 61111... -
Page 15: Installation And Setup
Stellar F-1000 Fogger Installation and Setup Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing. - Page 16 Stellar F-1000 Fogger To mount the device, follow the steps below: Use a clamp to attach the device to the supporting structure, as shown in Fig. 05. Make sure that the device cannot move freely. 02) Secure the device with a secondary suspension, for example a safety cable. Make sure that the secondary suspension can hold 10 times the weight of the device.
-
Page 17: Connecting To Power Supply
Stellar F-1000 Fogger Connecting to Power Supply DANGER Electric shock caused by short-circuit The device accepts AC mains power at 220–240 V and 50 Hz. Do not supply power at any other voltage or frequency to the device. This device falls under IEC protection class I. Make sure that the device is always electrically connected to the ground (earth). -
Page 18: Setup
Disconnect power supply before connecting or disconnecting data cables. Stand-alone Setup When the Stellar F-1000 Fogger is not connected to a controller or to other devices, it functions as a stand-alone device. It can be operated manually. For more information about the control mode, refer to 6.7.4.1. DMX Address on page 27. -
Page 19: Dmx Cables
Stellar F-1000 Fogger DMX Cables Shielded twisted-pair cables with 3-pin/5-pin XLR connectors must be used for reliable DMX connection. You can purchase DMX cables directly from your Highlite International dealer or make your own cables. If you use 3-pin XLR audio cables for DMX data transmission, this may lead to signal degradation and unreliable operation of the DMX network. -
Page 20: Dmx Addressing
04) Continue assigning the starting addresses of the remaining devices by adding each time 1 to the previous number. Make sure that you do not have any overlapping channels in order to control each Stellar F-1000 Fogger correctly. If two or more devices are addressed similarly, they will work similarly. -
Page 21: Operation
Stellar F-1000 Fogger Operation Safety Instructions for Operation Attention This device must be used only for the purposes it is designed for. This device is designed to be used as a professional fog effect. Any incorrect use may lead to hazardous situations and result in injuries and material damage. -
Page 22: Filling The Tank
Stellar F-1000 Fogger Filling the Tank WARNING Risk of explosion caused by incorrect handling ● Do not add flammable liquids such as perfume and alcohol to the fog fluid. ● Operate the device only with the fluids recommended in this user manual. - Page 23 Stellar F-1000 Fogger Place the fluid tank on a flat surface near the device, as shown in Fig. 10. Use a funnel to pour the fog fluid into the tank, as shown in Fig. 11. Fig. 10 Fig. 11 Fill the fluid container with the recommended fog fluid ( Max. Fluid Tank Capacity 3 L). Make sure that you do not overfill.
-
Page 24: Emptying The Tank After Operation
Stellar F-1000 Fogger Emptying the Tank after Operation To empty the tank, follow the steps below: Do not disconnect the safety cable. Unscrew the lid on the fluid tank, as shown in Fig. 14. Take out the fluid tank, as shown in Fig. 15. -
Page 25: Restarting The Device After Running The Tank Empty
Make sure you fill the entire tank, let the device reheat and then manually start fogging. This will take a few seconds until the completely emptied lines are filled with fog fluid. Control Modes The Stellar F-1000 Fogger supports the following control modes: ● Manual (fog intensity/volume, duration, interval/timer) ●... -
Page 26: Manual Operation
Stellar F-1000 Fogger Manual Operation To set up the device, follow the steps below: Fill the tank (Fluid Tank Capacity 3 L). See 6.3. Filling the Tank on pages 21–22 for more information. Connect the power cable before supplying power to the device. See 4.5. Connecting to Power Supply on page 16 for more information. -
Page 27: Start-Up
Stellar F-1000 Fogger Start-up Upon start-up, the display shows the current software version. Before you are able to see the main menu or change settings, you have to wait until the device is fully heated. The display shows: When the device is fully heated, the display shows:... -
Page 28: Main Menu Options
Stellar F-1000 Fogger Main Menu Options The main menu has the following options: Press the MENU button to navigate through the main menu. DMX Address In this menu you can set the DMX address. Press the UP/DOWN buttons to set the desired DMX address. The adjustment range is 001–512. -
Page 29: Timer Mode
Stellar F-1000 Fogger Timer Mode Set the fog output volume. See 6.7.4.2. Output Volume on page 27 for more information. Set the interval time between separate fog outputs. See 6.7.4.3. Interval on page 27 for more information. Set the fog output duration. See 6.7.4.4. Duration on page 27 for more information. -
Page 30: Dmx Operation
Stellar F-1000 Fogger DMX Operation To setup up the device, follow the steps below: Fill the tank (Fluid Tank Capacity 3 L). See 6.3. Filling the Tank on pages 21–22 for more information. Connect the DMX cables before supplying power to the device. See 5.3. DMX Connection on page 17 for more information. -
Page 31: Troubleshooting
Stellar F-1000 Fogger Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. - Page 32 Stellar F-1000 Fogger Maintenance Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing or cleaning. WARNING Risk of burns due to hot surface Allow the device to cool down for at least 15 minutes before servicing or cleaning.
- Page 33 Stellar F-1000 Fogger Cleaning the Fluid Pipes The device must be cleaned periodically from the fog fluid residues. After every 40 hours of continuous operation, it is recommended to run a cleaning solution composed of 80 % distilled water and 20 % white vinegar through the system.
- Page 34 Stellar F-1000 Fogger Deinstallation, Transportation and Storage Instructions for Deinstallation WARNING Incorrect deinstallation can cause serious injuries and damage of property. ● Let the device cool down before dismounting. ● Disconnect power supply before deinstallation. ● Always observe the national and site-specific regulations during deinstallation and derigging of the device.
- Page 35 Stellar F-1000 Fogger Product code: 61111...
- Page 36 ©2023 Showtec...
