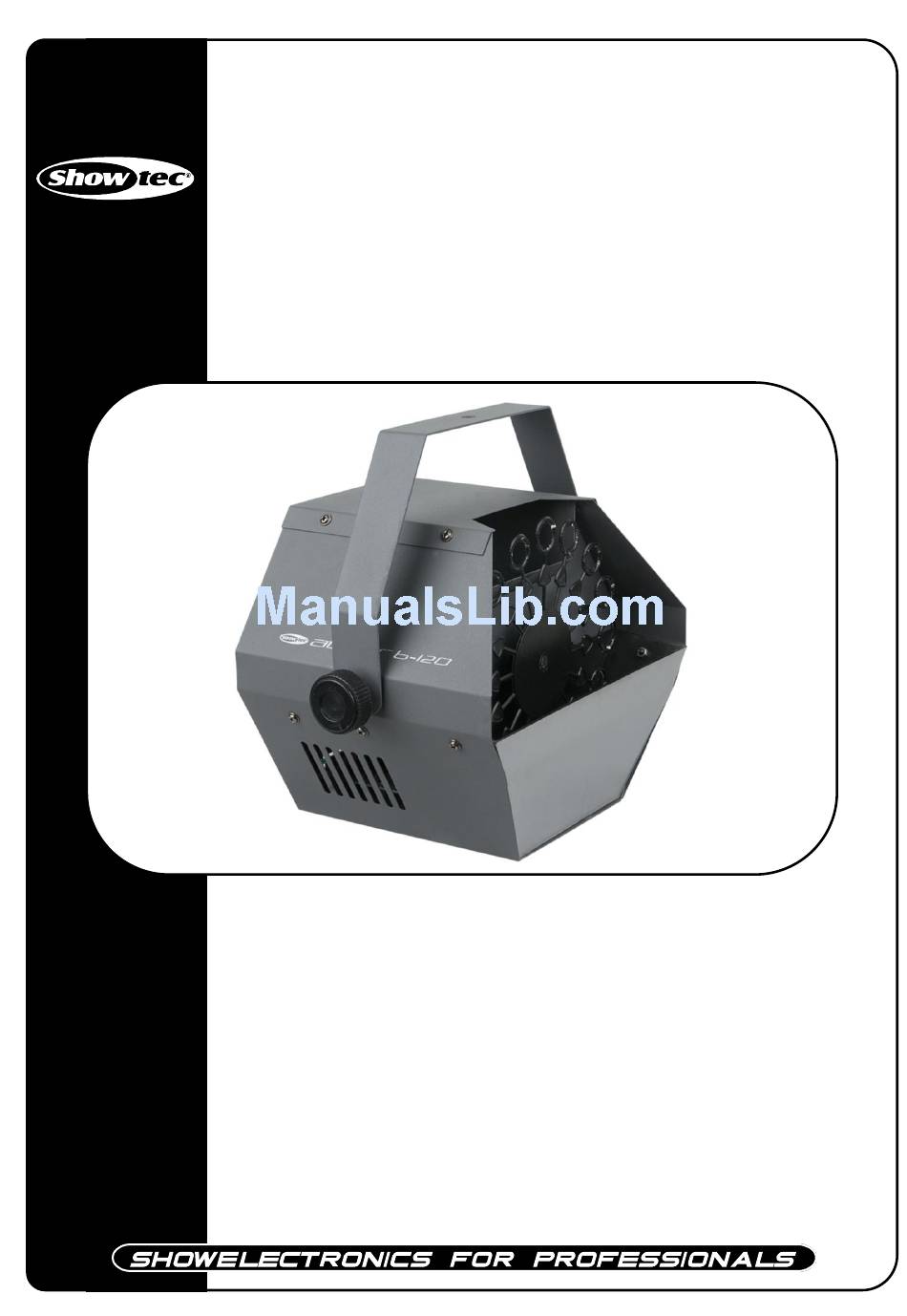

- Page 1 Atmos B120 Bubble Machine ORDERCODE 60885 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands Phone: +31 45-5667700...
- Page 2 Congratulations! You have bought a great, innovative product from Showtec. The Showtec Atmos B120 Bubble Machine brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated DMX show, this product provides the effect you need. You can rely on Showtec, for more excellent lighting products.
-
Page 3: Table Of Contents
Showtec Showtec Atmos B120 Bubble Machine Product Guide ™ Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Return Procedure ................................5 Claims ....................................5 Description of the device ..............................6 Overview ..................................6 Backside ..................................7 Installation ................................... -
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • Showtec Atmos B120 Bubble Machine with powercable 1,25m • User manual CAUTION! - Page 5 If your Showtec Bubble machine fails to work properly, discontinue use immediately. Drain all bubble liquid from the tank, pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 6: Operating Determinations
Operating Determinations • This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. • The maximum ambient temperature t = 45°C must never be exceeded. •... -
Page 7: Return Procedure
Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER FASE BLUE BLACK SILVER YELLOW/GREEN GREEN GREEN... -
Page 8: Description Of The Device
Features Atmos B120 Bubble Machine is a versatile and powerful fogger from Showtec. • The Bubble Machine works with any official Bubble Liquid on the market • The Atmos B-120 is a compact but versatile bubble machine for small and medium sized applications •... -
Page 9: Backside
Backside 4 5 6 7 9 10 11 Fig. 2 4) AC 220~240V 8) 3-pin DMX Out 5) Earth connection 9) 3-pin DMX In 6) Fuse 5A / 250V 10) DMX Dip Switches 7) Fan 11) DMX LED, blinks when DMX signal is present Installation Installing the Bubble machine Remove all packing materials from the bubble machine. -
Page 10: Control Modes
Control Modes There are 2 Modes: Stand-alone DMX512 One Atmos bubble machine (Stand-alone) 1. Fasten the bubble machine onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 2. Always use a safety cable (ordercode 70140 / 70141). 3. -
Page 11: Dipswitch Setting For Dmx Mode
Addresses on the controller are set by flipping the appropriate DMX dip switches #1 - #9. You need to know that DMX address settings are the sum of the dip switch values. A standard DMX address for a Showtec Atmos bubble machine, which has 1 channel is as follow: Example... -
Page 12: Dmx Quick Reference Chart
DMX Quick Reference Chart... -
Page 13: Fixture Linking
0-128 129-255 Maintenance The Atmos B120 Bubble Machine bubble machine requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. -
Page 14: Replacing A Fuse
3. If all of the above appears to be O.K., plug the unit in again. 4. If you are unable to determine the cause of the problem. 5. Return the machine to your Showtec dealer. No Response to DMX Response: Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card malfunction. - Page 15 Problem Probable cause(s) Remedy No power to the fixture • Check that power is switched on One or more and cables are plugged in. fixtures are Primary fuse blown. • Replace fuse. completely dead. Fixtures reset The controller is not connected. •...
-
Page 16: Product Specification
Product Specification Model: Showtec Atmos B120 Bubble Machine The Bubble Machine works with any official Bubble Liquid on the market The Atmos B-120 is a compact but versatile bubble machine for small and medium sized applications Perfect Price-performance ratio Easy to use...
