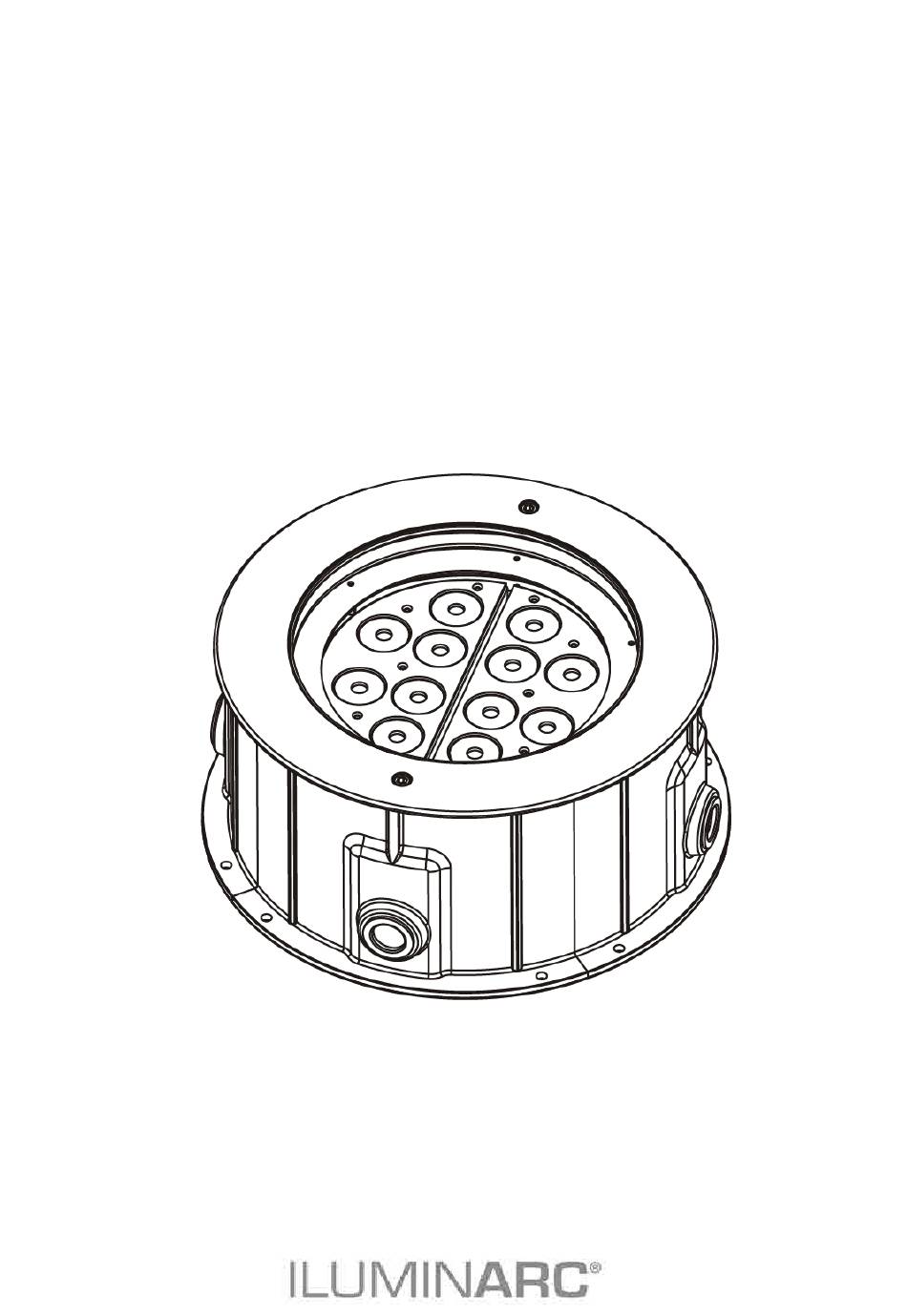

- Page 1 Ilumipod Inground Tri-12 IP Quick Reference Guide...
-
Page 2: Product At A Glance
Concrete installation sleeve One Quick Reference Guide About this The Ilumipod Inground Tri-12 IP Quick Reference Guide (QRG) only contains the product’s connection and mounting information as well as the Guide menu options and the DMX values. This QRG does not replace the product’s user manual. -
Page 3: Installation
Installation Sleeve Drainage The Ilumipod Inground Tri-12 IP can support a distributed load of up to 3,000 kg (6,614 lbs) when properly installed. -
Page 4: Beam Angle Adjustment
Ilumipod Inground Tri-12 IP Beam Angle The Ilumipod Inground Tri-12 IP has two LED modules. You can adjust the angle of each of these modules to spread or narrow the fixture’s beam. To Adjustment do so, follow these steps: ·... - Page 5 Ilumipod Inground Tri-12 IP AC Power This product has an auto-ranging power supply that can work with an input voltage range of 100~240 VAC, 50/60 Hz. Junction This fixture has an IP67 rated junction box where the power and signal cables come into the unit.
- Page 6 Ilumipod Inground Tri-12 IP Power You must connect the bare-ended power cable from the fixture to a power distribution box. If you choose to bury the power distribution boxes, make Distribution sure that they are IP67 rated. Power Distribution Box Wiring...
- Page 7 Ilumipod Inground Tri-12 IP The Ilumipod Inground Tri-12 IP can work with a standard DMX controller. The channel assignments will depend on the chosen personality Controller (see Menu Options) and the DMX address assigned to each fixture (see Settings). The figure below illustrates how to connect the DMX controller to the Ilumipod Inground Tri-12 IP fixture(s).
- Page 8 Ilumipod Inground Tri-12 IP Settings The Ilumipod Inground Tri-12 IP uses the Ilumicode unit for configuration purposes. Ilumicode The diagram below shows how to connect the Ilumicode to this product. Connection Note that this connection will control multiple fixtures at the same time, all having the same DMX address.
- Page 9 Ilumipod Inground Tri-12 IP Menu Level Level Level Instructions Options 001~512 Sets the DMX starting address ARC 1 3-channel: RGB control 4-channel: RGB + dimmer (D) ARC 1 + D 7-channel: RGB, D, macro, strobe, ARC FULL speed PERSON The fixture operates with...
-
Page 10: Dmx Values
Ilumipod Inground Tri-12 IP DMX Values ARC FULL Channel Function Value Setting 000 ó 255 0~100% Dimmer 000 ó 255 0~100% 000 ó 255 0~100% Green 000 ó 255 0~100% Blue 000 ó 010 No Function 011 ó 030 Red 100% - Green Up - Blue 0% 031 ó... - Page 11 Ilumipod Inground Tri-12 IP SPECIAL 1 Channel Function Value Percent/Setting 000 ó 255 0~100% Module 1 Red 000 ó 255 0~100% Module 1 Green 000 ó 255 0~100% Module 1 Blue 000 ó 255 0~100% Module 2 Red 000 ó 255 0~100% Module 2 Green 000 ó...
- Page 12 (954) 923-3680 (Press 4) Email: support@iluminarc.com Fax: (954) 929-5560 Email: support@iluminarc.com World Wide Web World Wide Web www.iluminarc.com www.iluminarc.com Ilumipod Inground Tri-12 IP QRG – Rev. 02 © Copyright 2014 ILUMINARC® All rights reserved. Printed in the P. R. C.
