Summary of Contents for Iluminarc ILUMIPANEL ML

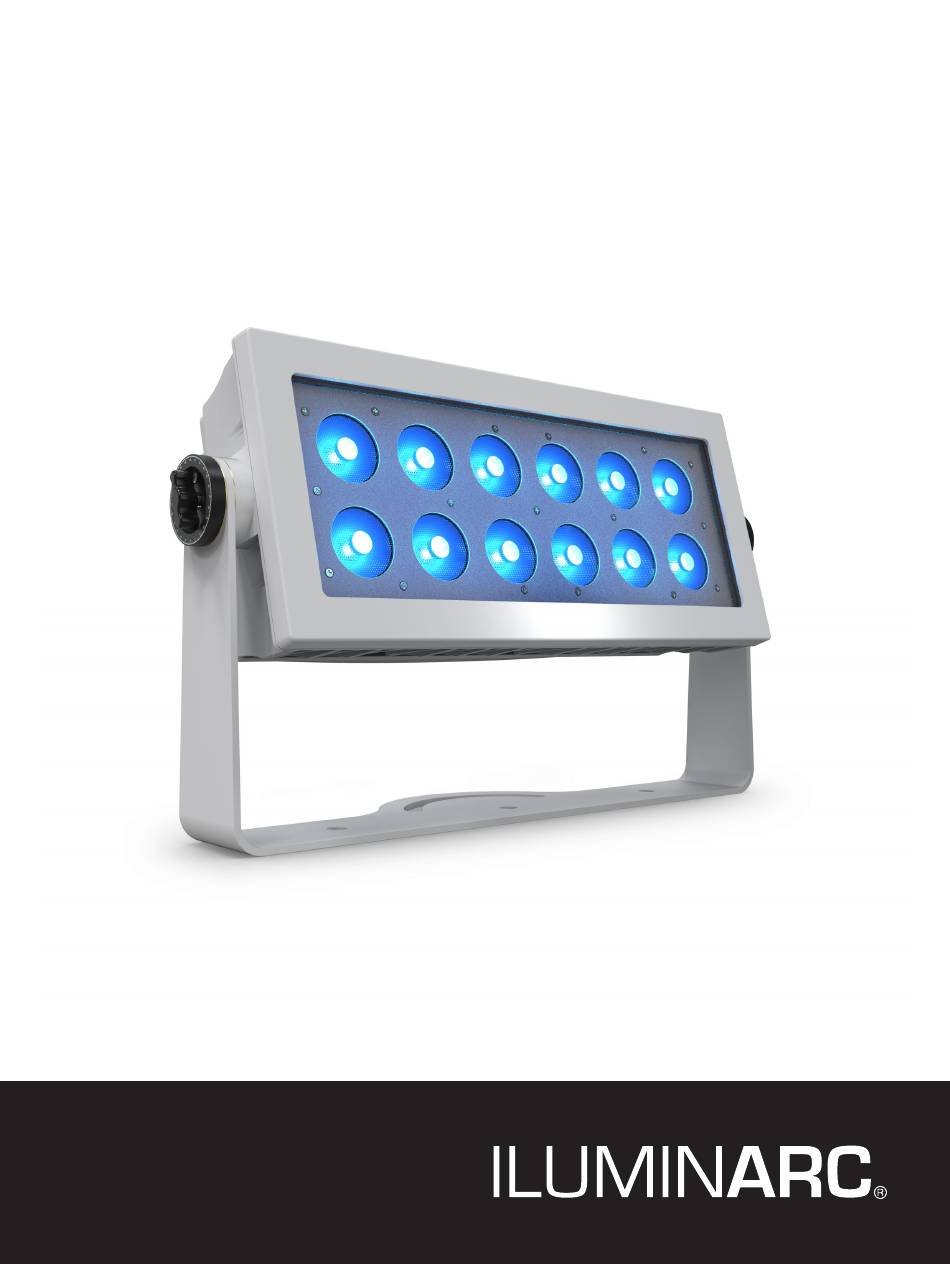

- Page 1 User Manual ILUMIPANEL ML Model ID: ILUMIPANELML...
- Page 2 Edition Notes The Ilumipanel ML User Manual includes a description, safety precautions, installation, programming, operation and maintenance instructions for the Ilumipanel ML as of the release date of this edition. Trademarks ILUMINARC, the Iluminarc logo and Ilumipanel ML are registered trademarks or trademarks of Chauvet &...
-
Page 3: Table Of Contents
Color Temperature Chart ..................Configuration (Static Mode) ..................Configuration (Settings) ................... Dimmer Speed ....................... 13 Color Calibration ......................13 Factory Reset......................... 13 5. Maintenance....................Product Maintenance ....................6. Technical Specifications................Returns ......................Contact Us......................Ilumipanel ML User Manual Rev. 1... -
Page 4: Before You Begin
2. This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Page 1 of 17 Ilumipanel ML User Manual Rev. 1... -
Page 5: Safety Notes
LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is 40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit the overall intensity. Ilumipanel ML User Manual Rev. 1 Page 2 of 17... -
Page 6: Introduction
2. Introduction Description The Ilumipanel ML from Iluminarc is a large-format LED architectural unit. Perfect for washing the sides of buildings in bold, beautiful colors, it includes a range of easy-to-install beam spread filters to fit any size application. Installation is fast and simple, while the sleek chassis blends into the environment. Precision optics eliminate multicolored shadows, and the RGBL four-in-one LEDs output clean, true whites and a nearly unlimited palette of striking colors. -
Page 7: Product Dimensions
144 mm 7.87 in 200 mm 20.87 in 530 mm 7.03 in 179 mm 10.01 in 256 mm 7.87 in 200 mm 10.08 in 256 mm 5.64 in 143 mm Ilumipanel ML User Manual Rev. 1 Page 4 of 17... -
Page 8: Setup
3. Setup AC Power The Ilumipanel ML has an auto-ranging power supply, and it can work with an input voltage range of 100 to 277 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 9: Remote Device Management (Rdm)
RDM2go 3. Data + (red clip) 3. Data + Beam-Shaping Filters The Ilumipanel ML can be used with the medium, wide, very wide, or asymmetrical beam-shaping filters (sold separately). Beam-shaping filter Filter retainer lid Screws Follow the instructions below to install the optional filters: Detach the filter retainer lid by removing the screws attaching it to the fixture. -
Page 10: Mounting
When rigging the product onto a truss, use hardware of appropriate weight capacity. Procedure The Ilumipanel ML comes with two adjustable brackets that can be secured directly to a mounting surface. Make sure the mounting surface and hardware are capable of supporting the weight of this product. Use at least one mounting point per product. -
Page 11: Operation
Operation 4. Operation RDM2go Control The Ilumipanel ML requires an external controller, such as the RDM2go (from Chauvet Professional), to change its configuration. Menu Map Refer to the Ilumipanel ML product page on www.iluminarc.com for the latest menu map. The Ilumicode section of the RDM2go (from Chauvet Professional) is required to access the full menu of options. -
Page 12: Configuration (Dmx)
To set the starting address: 1. Go to the DMX main level. 2. Select the starting address (001–512). Personality Channels Highest Starting Address ARC1 ARC1+D ARC2 ARC2+D ARC FULL SOLID SPECIAL1 SPECIAL2 Page 9 of 17 Ilumipanel ML User Manual Rev. 1... -
Page 13: Control Channel Assignments And Values
010 029 Dimmer speed OFF 030 069 Dimmer speed 1 (fastest) Dimmer speed 070 129 Dimmer speed 2 130 189 Dimmer speed 3 190 255 Dimmer speed 4 (slowest) Ilumipanel ML User Manual Rev. 1 Page 10 of 17... -
Page 14: Solid (1 Channel)
010 029 Dimmer speed OFF 030 069 Dimmer speed 1 (fastest) Dimmer speed 070 129 Dimmer speed 2 130 189 Dimmer speed 3 190 255 Dimmer speed 4 (slowest) Page 11 of 17 Ilumipanel ML User Manual Rev. 1... -
Page 15: Preset Colors Chart
070 085 3200–4000K linear transition 175 190 7000–8000K linear transition 4000K 8000K 085 100 4000–4500K linear transition 190 205 8000–10000K linear transition 4500K 205 255 100000K Ilumipanel ML User Manual Rev. 1 Page 12 of 17... -
Page 16: Configuration (Static Mode)
Operation Configuration (Static Mode) To set the Ilumipanel ML to operate in a static or strobing color without DMX: 1. Go to the STATIC main level. 2. Select the parameter to configure, from: • RED, • GREEN, • BLUE, •... -
Page 17: Maintenance
6. Softly drag any dirt or grime to the outside of the transparent surface. 7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Ilumipanel ML User Manual Rev. 1 Page 14 of 17... -
Page 18: Technical Specifications
1, 3, 4, 4, 5, 8, or 9 channels Ordering Product Name Item Name Item Code UPC Number Ilumipanel ML ILUMIPANELML 01621635 781462219833 UL 1598 CSA C22.2 No. 250 E115166 Page 15 of 17 Ilumipanel ML User Manual Rev. 1... -
Page 19: Returns
Returns Returns Send the product prepaid, in the original box, and with the original packing and accessories. Iluminarc will not issue call tags. Call Iluminarc and request a Return Merchandise Authorization (RMA) number before shipping the product. Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return. -
Page 20: Contact Us
Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record. Page 17 of 17 Ilumipanel ML User Manual Rev. 1...
