- Page 1 User Manual...
- Page 2 ILUMINARC® reserves the right to revise this document and to make changes from time to time in the content without obligation of ILUMINARC® to notify any person or company of such revision or changes. ILUMINARC® may issue a revision of this manual or a new edition of it to incorporate such changes.
-
Page 3: Table Of Contents
Table of Contents Table of Contents 1. Introduction .......................... 1 What Is In The Box ..........................1 Unpacking Instructions ..........................1 Claims ................................1 Text Conventions ............................. 1 Safety Notes ............................2 Personal Safety ..............................2 Mounting and Installation ..........................2 Power and Wiring .............................2 Operation .................................2 2. - Page 4 Table of Contents Product Repairs ............................. 18 Photometrics ............................19 LED Disclaimer ............................20 LED Life ................................. 20 LED Binning ..............................20 Color Rendering Index (CRI) .......................... 20 Return Procedure ..........................21 Contact Us ..........................21 6. Technical Specifications ....................22 Colorist™...
-
Page 5: Introduction
The carrier is responsible for any damage incurred during shipping. Therefore, if the received merchandise appears to have been damaged during shipping, the customer must submit the damage report and any related claims to the carrier, not ILUMINARC®. The customer must Useful information. -
Page 6: Safety Notes
· When hanging this product, always secure it to a fastening device using a safety cable (not provided). Power and Wiring Please consult with an Iluminarc · To eliminate unnecessary wear and improve its lifespan, during periods of non-use Sales Representative on the completely disconnect the product from power via breaker or by unplugging it. -
Page 7: Product Description

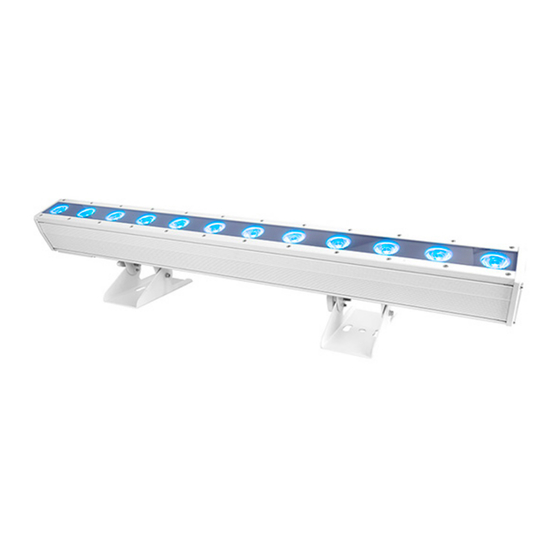

Product Description 2. Product Description The Colorist™ Line 12Qa is an IP65-rated linear wash product that may be used to light a variety of both indoor and outdoor applications. The Colorist™ Line 12Qa consists of 12 quad-color RGBA 15 watt LEDs which can be controlled via the control panel or DMX control connections located on the back of the extruded aluminum housing. -
Page 8: Product Overview
Product Description Product Overview Mounting Bracket End Cap View Power In Power Out DMX In DMX Out RGBA Quad-color LED Front View Control Panel GORE® Valve Rear View Colorist™ Line 12Qa User Manual Rev. 2... -
Page 9: Product Dimensions
Product Description Product Dimensions 7.40 in 188 mm 3.94 in 100 mm 7.87 in 200 mm End Cap View 38.98 in 990 mm 3.94 in 100 mm Front View 4.25 in 108 mm Rear View Colorist™ Line 12Qa User Manual Rev. 2... -
Page 10: Installation
Always mount this product in a safe position, making sure there is adequate room for ventilation, configuration, and maintenance. Installation Make sure to mount ILUMINARC® recommends following the general guidelines below when mounting the this product away Colorist™ Line 12Qa. from any flammable ·... -
Page 11: Ac Power
Installation Always connect the Colorist™ AC Power Line 12Qa to a protected circuit with an The Colorist™ Line 12Qa has an auto-ranging power supply that works with an input voltage appropriate electrical range of 100–240 VAC, 50/60 Hz. ground to avoid the risk of electrocution or fire. -
Page 12: Dmx Linking
Colorist™ Line 12Qa to a DMX controller, you may should be connected on download “DMX Primer” from ILUMINARC® website one daisy chain without http://www.iluminarc.com/reports/dmx-primer. using a DMX optically isolated splitter. Doing otherwise may result in... -
Page 13: Dmx Personality
Installation DMX Personality If you have not The Colorist™ Line 12Qa uses the standard DMX data connection for its 5 DMX personalities configured the DMX starting as per the table below. Refer to the Introduction chapter for a brief description of these address and personalities. -
Page 14: Operation
Operation 4. Operation Control Panel Description Button Function <MENU> Exits from the current menu or function Enables the currently displayed menu or sets the <ENTER> currently selected value in to the current function Navigates upwards through the menu list and <UP>... -
Page 15: Temperature
Operation Temperature The passcode is a default setting This menu option allows you to see the temperature of the product while it is operating. and not customizable. 1. Go to teMP. 2. The products temperature is displayed XX (°C). Passcode DIM1 is the fastest dimming When PASS is active, the product will ask you to enter the passcode (<UP>, <DOWN>,... -
Page 16: Menu Map
Operation Menu Map Main Level Programming Levels Description 4-CH 6-CH Selects DMX personality and sets the DMX starting 10CH 1–512 address 48CH 53CH R (red) G (green) B (blue) A (amber) C--- C 10 C 11 C 12 C 13 C 14 C 15 RGBA... -
Page 17: Dmx Values
Operation DMX Values Channel Function Value Percent/Setting 53CH 000 ó 255 0–100% Red 1 000 ó 255 Green 1 0–100% 000 ó 255 Blue 1 0–100% 000 ó 255 Amber 1 0–100% 000 ó 255 Red 2 0–100% 000 ó 255 Green 2 0–100% 000 ó... -
Page 18: Dmx Values (Cont.)
Operation DMX Values (Cont.) Channel Function Value Percent/Setting 53CH 000 ó 010 No function 011 ó 028 (Cont.) Auto Program 1 029 ó 046 Auto Program 2 047 ó 064 Auto Program 3 065 ó 082 Auto Program 4 083 ó 100 Auto Program 5 101 ó... -
Page 19: Dmx Values (Cont.)
Operation DMX Values (Cont.) Channel Function Value Percent/Setting 48CH 000 ó 255 0–100% Red 1 000 ó 255 Green 1 0–100% 000 ó 255 Blue 1 0–100% 000 ó 255 Amber 1 0–100% 000 ó 255 Red 2 0–100% 000 ó 255 Green 2 0–100% 000 ó... -
Page 20: Dmx Values (Cont.)
Operation DMX Values (Cont.) Channel Function Value Percent/Setting 10CH 000 ó 255 0–100% Dimmer 000 ó 255 0–100% 000 ó 255 Green 0–100% 000 ó 255 Blue 0–100% 000 ó 255 Amber 0–100% 000 ó 010 No function Strobe 011 ó 255 Slow to fast 000 ó... -
Page 21: Dmx Values (Cont.)
Operation DMX Values (Cont.) Channel Function Value Percent/Setting 6-CH 000 ó 255 Dimmer 0–100% 000 ó 255 0–100% 000 ó 255 Green 0–100% 000 ó 255 Blue 0–100% 000 ó 255 0–100% Amber 000 ó 010 No function Strobe 011 ó 255 Slow to fast Channel Function... -
Page 22: Technical Information
7. Gently polish the external glass surfaces until they are free of haze and lint. Product Repairs ILUMINARC® strongly advises you against attempting any repairs to this product unless you are an authorized ILUMINARC® technician. Colorist™ Line 12Qa User Manual Rev. 2... -
Page 23: Photometrics
Technical Information Photometrics Colorist™ Line 12Qa User Manual Rev. 2... -
Page 24: Led Disclaimer
LED Disclaimer LED Life ILUMINARC® rates LED lifetime based on lumen depreciation of 70% of the original output, with data provided by the manufacturer of the LED. Data from the manufacturer of the LED are not independently verified or measured by ILUMINARC®. When the product is operating in optimal environmental conditions, the LED lifetime is rated to be 50,000 to 70,000 hours by the LED manufacturer. -
Page 25: Return Procedure
The user must clearly label the package with an RMA #. ILUMINARC® will refuse any product(s). product returned without an RMA #. DO NOT write the RMA # directly on the box. -
Page 26: Technical Specifications
Technical Information 6. Technical Specifications Length Width Height Weight Dimensions and Weight 7.9 in (200 mm) 39.0 in (990 mm) 7.4 in (188 mm) 19.6 lb (8.9 kg) Note: Dimensions and Weight are rounded to the nearest decimal digit. Power Supply Type Range Voltage Selection Electrical... - Page 27 User Manual...
