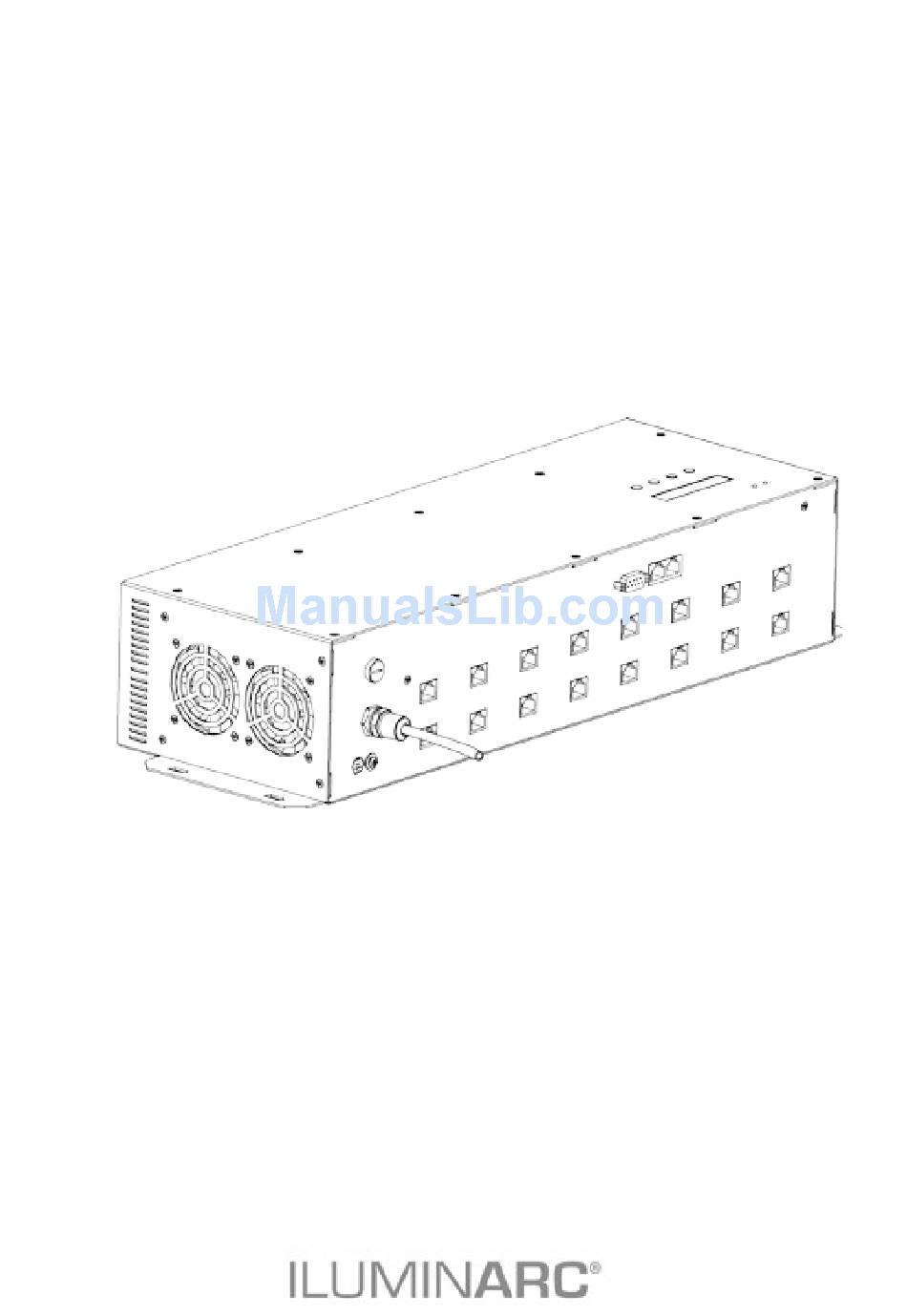

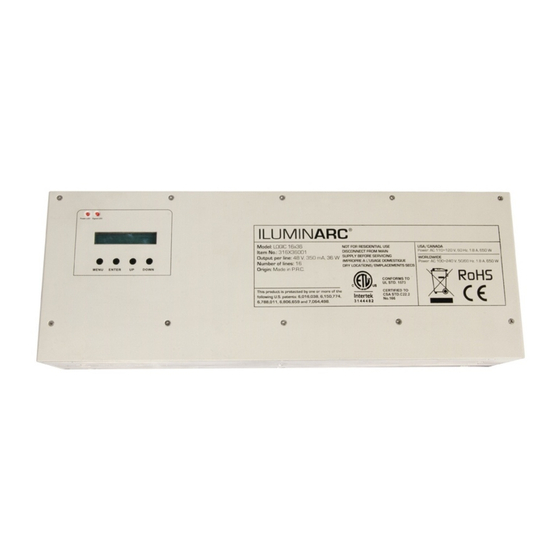

  • Page 1 LΩGIC 16X36 Quick Reference Guide...

  • Page 2: About This Guide

    Guide options and the DMX values. This QRG does not replace the product’s User Manual. You must download the corresponding User Manual from the ILUMINARC Web Disclaimer site (www.iluminarc.com) to learn about the disclaimers, safety notes, programming modes, and technical information.

  • Page 3: Additional Features

    LΩGIC 16X36 QRG Features 1, 2, 3, 4, 6, 9, or 48-channel DMX control Operating modes: 1-channel: RGB, dimmer (no individual RGB adjustments) 3-channel: RGB control (individual RGB adjustments) 4-channel: RGB control, dimmer 6-channel: RGB control, dimmer, color macro, strobe 9-channel: RGB control, dimmer, color macro, strobe, auto + custom, auto speed, zone selection 48-channel: RGB control, line control...
  • Page 4 LΩGIC 16X36 QRG The LΩGIC 16X36 has an auto-ranging power supply that can work AC Power with an input voltage range of 100~240 VAC, 50/60 Hz. Make sure that you are connecting this product to the proper voltage, as per the specifications in this guide, the product’s User Manual, or on the product’s sticker.
  • Page 5 LΩGIC 16X36 User Manual and follow the mounting procedures indicated in it. The LΩGIC 16X36 consists of a single unit with 4 mounting points. ILUMINARC recommends following the general guidelines below when mounting the LΩGIC 16X36. When selecting an installation location, consider ease of access to the unit for operation, programming adjustments, and routine maintenance.

  • Page 6: Cat5 Linking

    LΩGIC 16X36 QRG The LΩGIC 16X36 controller uses a signal patch implemented with a CAT5 Linking CAT5/6 cable to link to other LΩGIC 16X36 controllers (see Cable Connections). To use this product in Master/Slave mode, you must connect the master and slave LΩGIC 16X36 controller using the CAT5 link.
  • Page 7 LΩGIC 16X36 QRG DMX to RJ-45 adapter: Used to link a DMX controller to the LΩGIC 16X36 Cable Connections RJ-45 Plug DMX XLR (male) RJ-45 Plug Pin Assignment XLR (male) XLR (male) View facing pins 3-pin 5-pin RJ-45 Plug 3-pin XLR Male 5-pin XLR Male Pin 1: Not Used Pin 2: Not Used...

  • Page 8: Product Connection Diagram

    LΩGIC 16X36 QRG RJ-45 to DMX adapter Product (Included with controller) Connection Diagram Connect the DMX controller to the first LΩGIC 16X36 using a DMX to RJ-45 adapter cable. Link each LΩGIC patch 16X36 with a RJ-45 signal patch cable, as shown.
  • Page 9 LΩGIC 16X36 QRG Fixture To understand the maximum load allowed per output line, it is important to know how the internal components are wired inside the Internals LΩGIC products. LEDs and Dies Single color LEDs have a single die (the part of the LED that generates light).

  • Page 10: Rgb Mode Menu Options

    LΩGIC 16X36 QRG RGB Mode Menu Options Main Programming Steps Instructions RGB 1~10 Choose from 20 automatic 1. Play auto SPEED 1~255 programs RGBL 1~10 Choose from 10 user-defined 2. Play custom CUSTOM 1~10 programs GREEN LALL 0~255 STATIC Configure and/or play a single step 3.
  • Page 11 LΩGIC 16X36 QRG Continued from previous page Main Programming Steps Instructions Modify the White macros (RGB WHITE 1~9 mode) CALIBRATION 0~255 Configure RGB to WHITE RGB TO WHITE values 8. Settings [Yes] RGB TO WHITE defines (Cont.) output color when RGB faders are RGB TO WHITE YES/NO at “255”...

  • Page 12: Rgb Mode Dmx Values

    LΩGIC 16X36 QRG RGB Mode DMX Values EFFECT Channel Function Value Percent/Setting 0~100% 000 ó 255 Step Time When CUS. 01-10 in CH. 7 is activated Green 0~100% 000 ó 255 Step Time When CUS. 01-10 in CH. 7 is activated 000 ó...
  • Page 13 LΩGIC 16X36 QRG Continued from previous page DMX Mode Channel Function Value Percent/Setting (Cont.) 000 ó 009 All Lines 010 ó 029 Line 1 030 ó 049 Line 2 050 ó 069 Line 3 070 ó 089 Line 4 090 ó 109 Line 5 110 ó...
  • Page 14 LΩGIC 16X36 QRG Continued from previous page RGB+DMS Channel Function Value Percent/Setting (Cont.) 211 ó 215 White 1: 3,200 K 216 ó 220 White 2: 3,400 K 221 ó 225 White 3: 4,200 K 226 ó 230 Color Macro + White 4: 4,900 K 231 ó...

  • Page 15: Control Panel Description

    Press <ENTER> to access the menu option currently displayed or to enable a select value. To return to the previous option or menu without changing the value, press <MENU>. For details on how to program the LΩGIC 16X36 controller, download the corresponding User Manual from www.iluminarc.com.

  • Page 16: General Information

    Follow the instructions to request support or to return a product. Visit our website for contact details LΩGIC 16X36 QRG – Rev. 5 © Copyright 2018 ILUMINARC All rights reserved. Printed in the P. R. C.
