- Page 1 User Manual ILUMI Model ID: ILUMIPODML...
- Page 2 Ilumipod ML. Trademarks ILUMINARC, the Iluminarc logo, and Ilumipod ML are registered trademarks or trademarks of Chauvet & Sons, LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies.
-
Page 3: Table Of Contents
Configuration (Settings) ................... Dimmer Speed ....................... 11 Color Calibration ......................11 Color Macro White Balance .................... RGBTOW Mode......................Universal Calibration....................... Factory Reset......................... 11 5. Maintenance....................Product Maintenance ....................6. Technical Specifications................Contact Us......................Warranty & Returns....................Ilumipod ML User Manual Rev. 4... -
Page 4: Before You Begin
2. This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Page 1 of 15 Ilumipod ML User Manual Rev. 4... -
Page 5: Safety Notes
LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is 40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit the overall intensity. Ilumipod ML User Manual Rev. 4 Page 2 of 15... -
Page 6: Introduction

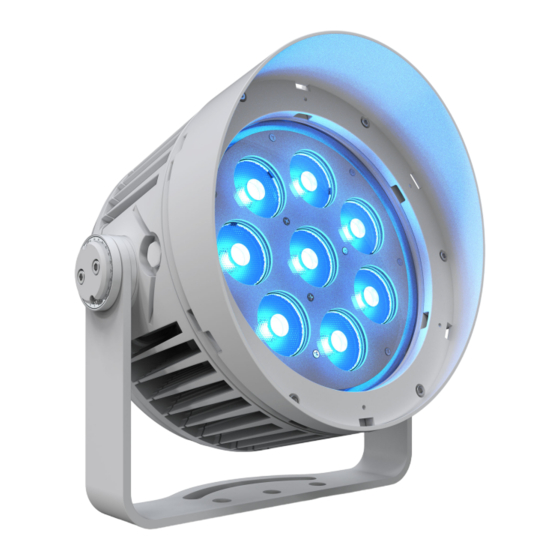

2. Introduction Description The Ilumipod ML from Iluminarc fuses plug-and-play installation with precision optics to create seamless splashes of light and color. Bringing energy to any architectural project in any weather conditions, it has a sleek, low-profile form factor and four-in-one LED optics. The advanced RGBL color mixing unlocks true whites from crisp and cool tones to warm incandescent ambers, as well as raucous, saturated shades. -
Page 7: Product Dimensions
Introduction Product Dimensions 11.29 in 287 mm 9.68 in 11.14 in 246 mm 283 mm 10.47 in 266 mm 9.57 in 243 mm 7.32 in 186 mm Ilumipod ML User Manual Rev. 4 Page 4 of 15... -
Page 8: Setup
3. Setup AC Power The Ilumipod ML has an auto-ranging power supply, and it can work with an input voltage range of 100 to 277 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 9: Remote Device Management (Rdm)
Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. Check the DMX controller’s User Manual or with the manufacturer as not all DMX controllers have this capability. The Ilumipod ML supports RDM protocol that allows feedback to make changes to menu map options. -
Page 10: Mounting
When rigging the product onto a truss, use hardware of appropriate weight capacity. Procedure The Ilumipod ML comes with two adjustable brackets which can be secured directly to a mounting surface. Make sure the mounting surface and hardware are capable of supporting the weight of this product. Use at least one mounting point per product. -
Page 11: Operation
Operation 4. Operation RDM2go Control The Ilumipod ML requires an external controller, such as the RDM2go (from Chauvet Professional), to change its configuration. Menu Map Refer to the Ilumipod ML product page on www.iluminarc.com for the latest menu map. The Ilumicode section of the RDM2go (from Chauvet Professional) is required to access the full menu of options. -
Page 12: Configuration (Dmx)
070 129 Dimmer speed 2 130 189 Dimmer speed 3 190 255 Dimmer speed 4 (slowest) SOLID (1 Channel) Channel Function Value Percent/Setting Dimmer 000 255 All LEDs (0–100%) Page 9 of 15 Ilumipod ML User Manual Rev. 4... -
Page 13: Special2
070 085 3200–4000K linear transition 175 190 7000–8000K linear transition 4000K 8000K 085 100 4000–4500K linear transition 190 205 8000–10000K linear transition 4500K 205 255 100000K Ilumipod ML User Manual Rev. 4 Page 10 of 15... -
Page 14: Configuration (Static Mode)
Operation Configuration (Static Mode) To set the Ilumipod ML to operate in a static or strobing color without DMX: 1. Go to the STATIC main level. 2. Select the parameter to configure, from: • RED, • GREEN, • BLUE, •... -
Page 15: Maintenance
6. Softly drag any dirt or grime to the outside of the transparent surface. 7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Ilumipod ML User Manual Rev. 4 Page 12 of 15... -
Page 16: Technical Specifications
1, 3, 4, 4, 5, 8, or 9 channels Ordering Product Name Item Name Item Code UPC Number Ilumipod ML ILUMIPODML 01631638 781462219864 UL 1598 CSA C22.2 No. 250 E115166 Page 13 of 15 Ilumipod ML User Manual Rev. 4... -
Page 17: Contact Us
For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. Ilumipod ML User Manual Rev. 4 Page 14 of 15...
