Summary of Contents for Iluminarc Ilumipod Inground 36 IP RGB

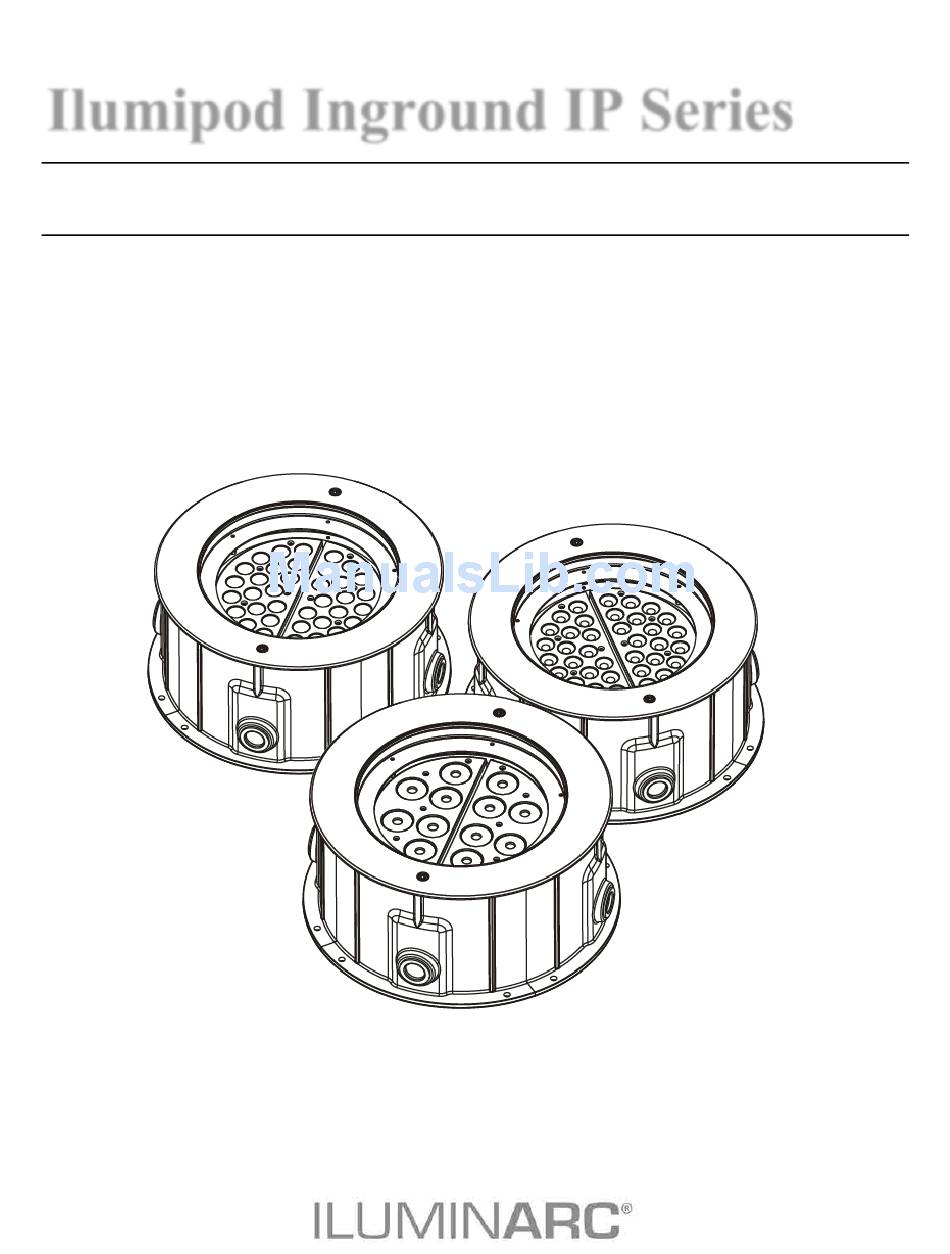

- Page 1 Ilumipod Inground IP Series User Manual · Ilumipod Inground 36 IP VW · Ilumipod Inground 36 IP RGB · Ilumipod Inground Tri-12 IP...
- Page 2 Edition Notes The Ilumipod Inground IP Series User Manual Rev. 03 covers the description, safety precautions, installation, programming, operation, and maintenance of the Ilumipod Inground 36 IP RGB, Ilumipod Inground 36 IP VW, ® and Ilumipod Inground Tri-12 IP products. ILUMINARC released this edition of the Ilumipod Inground IP Series User Manual Rev.
-
Page 3: Table Of Contents
Power and Wiring ........................2 Operation ..........................2 2. Product Description ..................3 Common Features ......................3 Ilumipod Inground 36 IP VW Features .................3 Ilumipod Inground 36 IP RGB Features ................3 Ilumipod Inground Tri-12 IP Features ..................3 Product Dimensions ..................... 4 3. Installation ..................... 5 Installation Notes ...................... - Page 4 Returns Procedure ..................... 26 Claims......................... 26 Contact Us ........................26 Technical Specifications ..................... 27 Ilumipod Inground 36 IP VW ....................27 Ilumipod Inground 36 IP RGB .................... 28 Ilumipod Inground Tri-12 IP ....................29 Ilumipod Inground IP Series User Manual (Rev. 03)
-
Page 5: Introduction
This icon Unpacking Instructions indicates important Immediately upon receiving a product from ILUMINARC®, carefully unpack the carton. installation or Check the contents of the box to ensure that all parts are present and that they are in good configuration information. -
Page 6: Safety Notes
Manual will only apply to · Avoid direct eye exposure to the light source while the product is on. ® properly ILUMINARC authorized technicians. · Always disconnect the Ilumipod Inground IP product from its power source before Do not open the housing servicing. -
Page 7: Product Description
Product Description 2. Product Description The Ilumipod Inground IP Series encompasses three products, Ilumipod Inground 36 IP RGB, Ilumipod Inground 36 IP VW, and Ilumipod Inground Tri-12 IP. Common Features · Remotely addressable DMX-512 LED inground wash light · IP67 ingress protection... -
Page 8: Product Dimensions
Product Description Product Dimensions (All Ilumipod Inground IP Series models) Ilumipod Inground IP Series User Manual (Rev. 03) -
Page 9: Installation
Installation 3. Installation Installation Notes The Ilumipod Inground IP products consist of two parts, the product housing and the concrete installation sleeve. The product housing is IP67 rated, but the installation sleeve is not. Please pay close attention to the installation instructions for the concrete installation sleeve regarding Always keep the leveling and drainage. -
Page 10: Beam Angle Adjustment
Installation Beam Angle Adjustment The Ilumipod Inground IP products have two LED modules each. You can adjust the angle of each of these modules to spread or narrow the product’s beam. To do so, follow these steps: Loosen the Allen bolts on the stainless steel collar by turning them CCW, not more Make sure to than a turn or two, enough to release the aluminum latch from its “locked”... -
Page 11: Ac Power
Installation Make sure to AC Power connect the Ilumipod Inground Input Voltage and Frequency IP product to a power line with the proper voltage The products in the Ilumipod Inground IP Series have an auto-ranging power supply with an and frequency, as per the input voltage range of 100~240 VAC, 50/60 Hz. -
Page 12: Signal Wiring
Installation Signal Wiring The signal cable must match or To provide signal for any of the Ilumipod Inground IP products, you must run a single, IP67 exceed the electrical rated DMX signal cable (shielded, 2-conductor, AWG24/2, 6.5 mm external diameter 120 characteristics of the ohm typical impedance) from the signal distribution box into the installation sleeve and the Belden®... -
Page 13: Controllers
Installation Controllers The products in the Ilumipod Inground IP Series can operate with a standard DMX controller, the ILUMICON controller, or the Ilumicode controller. The sections below will show you how to connect these products to the corresponding controllers. The instructions to operate these products with each of the above controllers are in the Operation chapter of this manual. -
Page 14: Ilumicode
DMX addresses to each product, you must connect the Ilumicode controller to each product, individually. ILUMINARC® suggests that you connect no more than 20 products in this mode and keep the total distance to less than 60 m (197 ft). Otherwise,... -
Page 15: Operation
RGB or White. The Ilumicode controller presents the functions for both types of products. White Functions Menu Map (Ilumipod Inground 36 IP VW) This menu map shows you which parameters of the Ilumicode controller correspond to the Ilumipod Inground 36 IP VW product. When you scroll through the Main Level Programming Levels... -
Page 16: Rgb Functions Menu Map
Operation RGB Functions Menu Map (Ilumipod Inground 36 IP RGB and Ilumipod Inground Tri-12 IP) Main Level Programming Levels Description 001~512 Sets the DMX starting address When you scroll ARC 1 3-channel: RGB control through the ARC 1 + D 4-channel: RGB control + dimmer menu options, you will see... -
Page 17: Programming
Operation Programming Carry out all the programming procedures indicated below from Ilumicode’s panel. Refer to the corresponding Menu Map (pages 11 and 12) to learn how the menu options relate to each other depending on the type of product. Use <ENTER> and <MENU> to change levels in the Menu Map. This is equivalent to moving Make sure to right and left respectively. -
Page 18: Ilumicon Control
Operation ILUMICON Control (Only for 36 IP RGB and Tri-12 IP) Do not connect any other Go to PERSON. controller to the product(s) when using the Select the REMOTE personality. ILUMICON controller. Static Color (Only for 36 IP RGB and Tri-12 IP) Go to STATIC. -
Page 19: Dmx Values
Operation DMX Values ARC 1 Channel Function Value Percent/Setting 000 ó 255 0 ~ 100% 000 ó 255 0 ~ 100% Green 000 ó 255 0 ~ 100% Blue ARC 1 + D Channel Function Value Percent/Setting 000 ó 255 0 ~ 100% Dimmer 000 ó... -
Page 20: Special 1
Operation SPECIAL 1 Channel Function Value Percent/Setting 000 ó 255 0 ~ 100% Module 1 Red 000 ó 255 0 ~ 100% Module 1 Green 000 ó 255 0 ~ 100% Module 1 Blue 000 ó 255 0 ~ 100% Module 2 Red 000 ó... -
Page 21: Technical Information
Product Repairs experience technical ILUMINARC ® strongly advises you against attempting any repairs to this product unless you problems after trying the solutions in the are an authorized ILUMINARC ® technician. Troubleshooting Guide, ® contact ILUMINARC ® ILUMINARC presents the information contained in the Troubleshooting Table as a guide Technical Support. -
Page 22: Troubleshooting Guide
Unit is being configured with Ilumicode Complete the configuration process. No power Verify external power circuit and wiring Faulty internal power supply Return for service to Iluminarc® Faulty main control board Return for service to Iluminarc® Faulty LED Return for service to Iluminarc®... -
Page 23: Exploded View
Technical Information Exploded View Reference Description Stainless steel cover 15 mm tempered glass Diaphragm LED lens panels LED boards Heat sink Power supply Control board Inner housing Installation sleeve Dustproof board Ilumipod Inground IP Series User Manual (Rev. 03) -
Page 24: Photometrics
Max Candela: 8,753.5 at Horizontal: 180, Vertical: 3 Input Wattage: 43.1 Luminous Opening: Point 2009 ALL Test: Test Lab: Iluminarc R & D Optics Laboratory Photometry : Type B CIE Class: Direct Cutoff Class: Full Cutoff Flood Summary Efficiency Lumens... -
Page 25: Ilumipod Inground 36 Ip 30º Vw
Max Candela: 3,534.3 at Horizontal: 0, Vertical: 0 Input Wattage: 46.5 Luminous Opening: Point Test: 2009 ALL Test Lab: Iluminarc R & D Optics Laboratory Photometry : Type B Direct CIE Class: Cutoff Class: Full Cutoff Flood Summary Efficiency Lumens... -
Page 26: Ilumipod Inground 36 Ip 15º Rgb
Max Candela: 8,753.5 at Horizontal: 180, Vertical: 3 Input Wattage: 43.1 Point Luminous Opening: Test: 2009 ALL Test Lab: Iluminarc R & D Optics Laboratory Photometry : Type B CIE Class: Direct Cutoff Class: Full Cutoff Flood Summary Efficiency Lumens... -
Page 27: Ilumipod Inground 36 Ip 30º Rgb
Max Candela: 2,520.5 at Horizontal: 0, Vertical: 3 Input Wattage: 43.3 Luminous Opening: Point Test: 2009 ALL Test Lab: Iluminarc R & D Optics Laboratory Photometry : Type B Direct CIE Class: Cutoff Class: Full Cutoff Flood Summary Efficiency Lumens... -
Page 28: Ilumipod Inground Tri-12 Ip 16º
Max Candela: 5,633.6 at Horizontal: 0, Vertical: 0 Input Wattage: 17.6 Point Luminous Opening: Test: 2009 ALL Test Lab: Iluminarc R & D Optics Laboratory Photometry : Type B CIE Class: Direct Cutoff Class: Full Cutoff Flood Summary Efficiency Lumens... -
Page 29: Led Disclaimer
LED. Data from the manufacturer of the LED are not independently verified or measured by ILUMINARC®. When the product is operating in optimal environmental conditions, the LED lifetime is rated to be 50,000 to 70,000 hours by the LED manufacturer. -
Page 30: Returns Procedure
The carrier is responsible for any damage incurred during shipping. Therefore, if the received merchandise appears to have damages caused during shipping, the customer must submit the ® damage report and any related claims with the carrier, not ILUMINARC . The customer must Always keep the submit the report upon reception of the damaged merchandise. -
Page 31: Technical Specifications
Technical Information Technical Specifications Ilumipod Inground 36 IP VW Weight & Dimensions Diameter ......................... 12.6 in (320 mm) Height ........................5.7 in (146 mm) Weight ........................17.6 lbs (8 kg) Power Auto-ranging ....................100~240 VAC, 50/60 Hz Power consumption @ 120 V ..................38 W (0.6 A) Power consumption @ 230 V .................. -
Page 32: Ilumipod Inground 36 Ip Rgb
Technical Information Ilumipod Inground 36 IP RGB Weight & Dimensions Diameter ......................... 12.6 in (320 mm) Height ........................5.7 in (146 mm) Weight ........................17.6 lbs (8 kg) Power Auto-ranging ....................100~240 VAC, 50/60 Hz Power consumption @ 120 V ..................38 W (0.6 A) Power consumption @ 230 V .................. -
Page 33: Ilumipod Inground Tri-12 Ip
Technical Information Ilumipod Inground Tri-12 IP Weight & Dimensions Diameter ......................... 12.6 in (320 mm) Height ........................5.7 in (146 mm) Weight ........................17.6 lbs (8 kg) Power Auto-ranging ....................100~240 VAC, 50/60 Hz Power consumption @ 120 V ..................38 W (0.6 A) Power consumption @ 230 V .................. - Page 34 ® ILUMINARC 5200 NW 108 Avenue Sunrise, FL 33351 U.S.A. Tel.: (954) 929-1115 FAX: (954) 929-5560 www.iluminarc.com Ilumipod Inground IP Series User Manual Rev. 03 April 2014...
