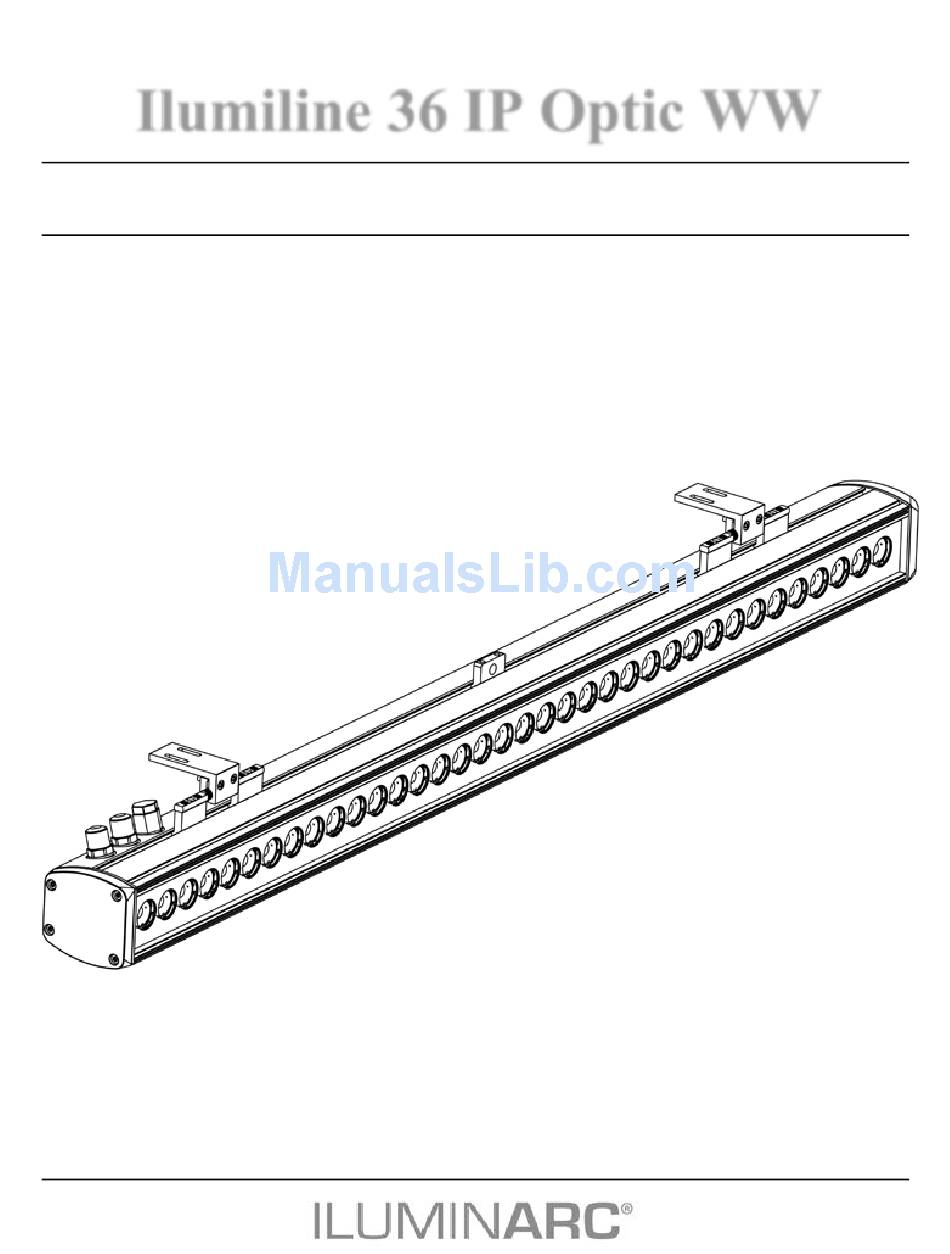

  • Page 1 Ilumiline 36 IP Optic WW User Manual...
  • Page 2 Ilumiline 36 IP Optic WW should read all of both the guide that shipped with it and this User Manual before installing, operating, or maintaining this product. Disclaimer ILUMINARC® believes that the information contained in this manual is accurate in all respects.
  • Page 3: Table Of Contents

    DMX Personality ............................11 DMX Starting Address ..........................11 Static Colors ............................12 Dimmer ..............................12 Reset to Factory Settings ......................... 12 Menu Map (Ilumicode) ........................12 DMX Values ............................. 12 SOLID ..............................12 Ilumiline 36 IP Optic WW User Manual Rev. 3...
  • Page 4 LED Disclaimer ..........................16 LED Life ..............................16 LED Binning ............................16 Color Rendering Index (CRI) ........................16 Returns Procedure ........................... 17 Contact Us ..................Error! Bookmark not defined. Technical Specifications ........................18 Ilumiline 36 IP Optic WW User Manual Rev. 3...
  • Page 5: Introduction

    ILUMINARC®. The customer must functioning correctly. submit the report upon receipt of the damaged merchandise. Failure to do so in a timely manner may invalidate the customer’s claim with the carrier.
  • Page 6: Safety Notes

    · The maximum ambient temperature is 113° F (45° C). Do not operate this product at a Ilumiline 36 IP higher temperature. Optic WW may require · In case of a serious operating problem, stop using this product immediately! service, please contact ILUMINARC® Technical Support. Ilumiline 36 IP Optic WW User Manual Rev. 3...
  • Page 7: Product Description

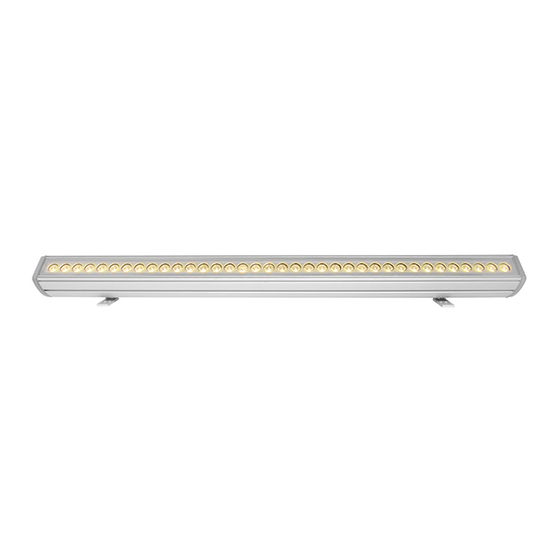

    Product Description 2. Product Description The Ilumiline 36 IP Optic WW is a linear LED wash light designed to be permanently installed in outdoor applications. The Ilumiline 36 IP Optic WW consists of a stainless steel body containing a power supply, control unit, impact resistant glass cover, and 36 LEDs.
  • Page 8: Overview

    Product Description Overview Safety Loop Signal In/Out Power In Gore™ Valve Mounting Mounting Brackets Brackets Ilumiline 36 IP Optic WW User Manual Rev. 3...
  • Page 9: Dimensions

    Product Description Dimensions Ilumiline 36 IP Optic WW User Manual Rev. 3...
  • Page 10: Installation

    Installation Make sure to mount The Ilumiline 36 IP Optic WW comes with two adjustable brackets with 3-mm slot openings to this product away mount the product on any firm, non-flammable surface. Once mounted the angle of the product from any flammable can also be adjusted and locked into place.
  • Page 11: Ac Power

    Always connect AC Power the Ilumiline 36 IP Optic WW to a The Ilumiline 36 IP Optic WW has an auto-ranging power supply that works with an input protected circuit with an voltage range of 100~240 VAC, 50/60 Hz. appropriate electrical...
  • Page 12: Dmx Linking

    IP Optic WW must be linked You may link the Ilumiline 36 IP Optic WW to a DMX controller using a standard DMX serial using DMX cable connection. If using other DMX products compatible with the Ilumiline 36 IP Optic WW, you in a daisy chain (serial) can control each individually with a single DMX controller.
  • Page 13: Controllers

    DMX Controller will operate in unison. The Ilumiline 36 IP Optic WW can work with a standard DMX controller. The figure below illustrates how to connect the DMX controller to the Ilumiline 36 IP Optic WW. Ilumiline 36 IP Optic WW User Manual Rev. 3...
  • Page 14: Ilumicode Addresser

    Installation Ilumicode Addresser The Ilumiline 36 IP Optic WW uses the Ilumicode addresser (“Ilumicode”) for configuration The RDM2go, which purposes. The diagram below shows how to connect the Ilumicode to this product. This includes a built in connection will control multiple products at the same time, all having the same DMX address.
  • Page 15: Operation

    30 seconds of inactivity. Control Options You can set the Ilumiline 36 IP Optic WW start address in the 001~512 DMX range. This allows for the control of up to 512 products in the 1-channel SOLID personality. Programming Carry out all the programming procedures indicated below from the control panel.
  • Page 16: Static Colors

    DIM 3 DIM 4 STATIC SOLD 000~255 Configures the static color SETTINGS RESET NO/YES Resets unit to factory default settings DMX Values SOLID Channel Function Value Percent/Setting 000 ó 255 Dimmer 0~100% Ilumiline 36 IP Optic WW User Manual Rev. 3...
  • Page 17: Technical Information

    · Gently polish the external glass surfaces until they are free of haze and lint. Product Repairs ILUMINARC® strongly advises you against attempting any repairs to this product unless you are an authorized ILUMINARC® technician. ILUMINARC® presents the information contained in the...
  • Page 18: Troubleshooting Guide

    Too many products Install an optically coupled DMX splitter after product #32 or before Interference from AC wires Keep DMX cables separated from power cables or fluorescent/black lights Ilumiline 36 IP Optic WW User Manual Rev. 3...
  • Page 19: Photometrics

    48.9 99.9 Beam (50%): 29.7% 356.1 24.2 60.8 Total: 66.8% 802.0 Photometrics Pro 1.3.21 copyright 2003-2013 by jSolutions, Inc. Reported data calculated from manufacturer's data file, based on IES recommended methods. Ilumiline 36 IP Optic WW User Manual Rev. 3...
  • Page 20: Led Disclaimer

    LED Disclaimer LED Life ILUMINARC® rates LED lifetime based on lumen depreciation of 70% of the original output, with data provided by the manufacturer of the LED. Data from the manufacturer of the LED are not independently verified or measured by ILUMINARC®. When the product is operating in optimal environmental conditions, the LED lifetime is rated to be 50,000 to 70,000 hours by the LED manufacturer.
  • Page 21: Returns Procedure

    The user must clearly label the package with an RMA #. ILUMINARC® will refuse any product returned without an RMA #. DO NOT write the RMA # directly on the box.
  • Page 22: Technical Specifications

    Thermal Integrated Cooling 113° F (45° C) Enhancment™ I/O Connectors Connector Type Channel Range IP Gland Nut Product Name Item Code Ordering UPC Code Ilumiline 36 IP Optic WW 01610627 781462209759 Ilumiline 36 IP Optic WW User Manual Rev. 3...
