Wearing Parts and Original Spare Parts
6
5
4
3
2
1
11

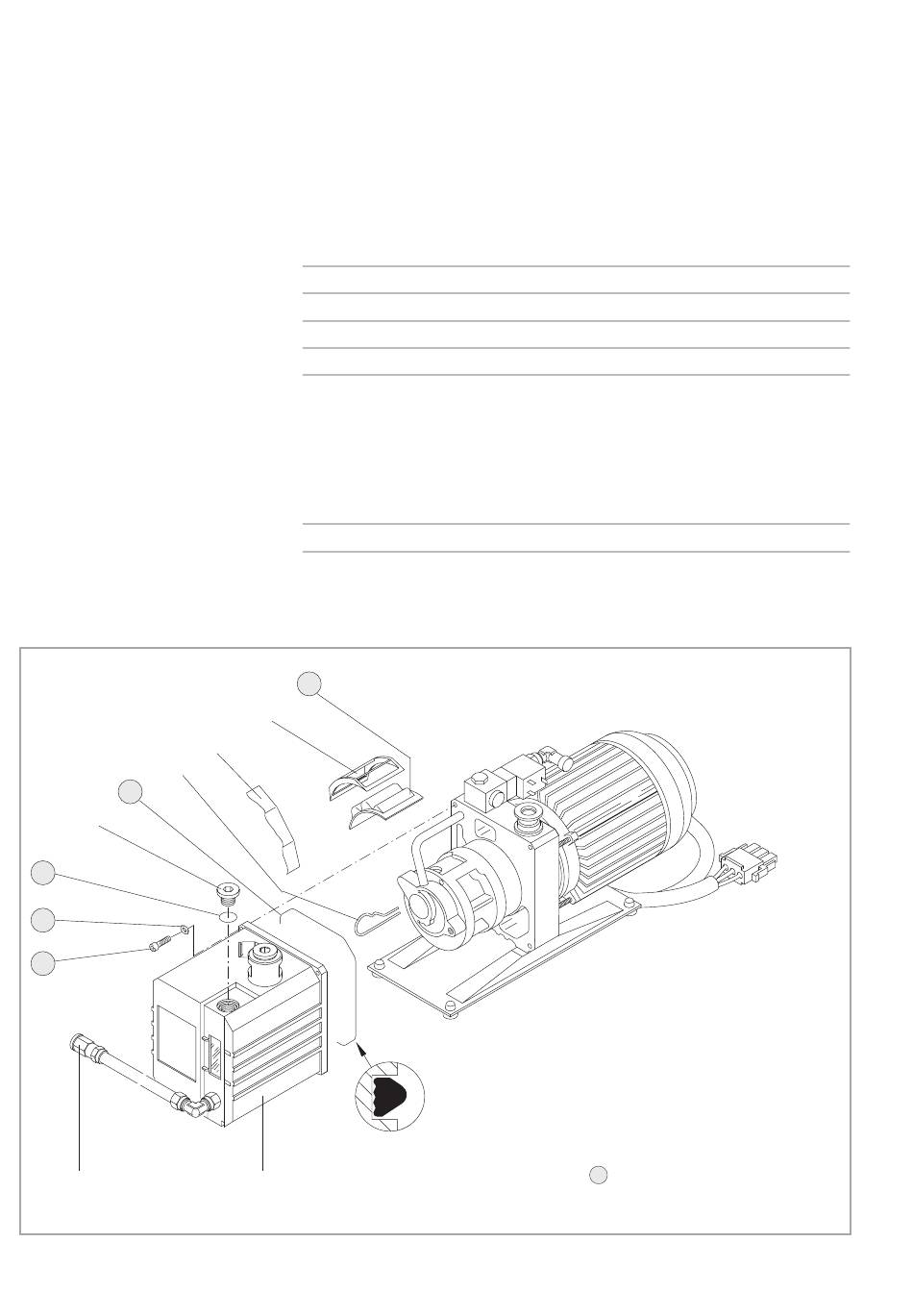

Fig. 9 Maintenance Kit 1
38 GA01601_002_C1 - 03/2018 - © Leybold
7.2 Ordering Information for the Maintenance Kits
and the Repair Sets
TRIVAC
Maintenance kit 1
Maintenance kit 2
Repair set 1
Complete set
The use of the maintenance kits and the repair sets is detailed in the
Tables 5.1 - Maintenance Plan and 6 - Troubleshooting.
7.3

Ordering Information for the Special Tools

TRIVAC
Special tool for the tie rods
9
8
7
10
D 2,5 E-LD
200 40 022
200 40 042
200 40 020
200 40 041
D 2,5 E-LD
200 02 760
1 Hex. socket screw
2 Washer
3 Gasket
4 Oil fill plug
5 Seal for demister
6 Spring clip
7 Guide panel
8 Holding frame for demister
9 Demister
10 Oil box
11 Oil drain plug
Parts contained in the
Maintenance Kit 1
