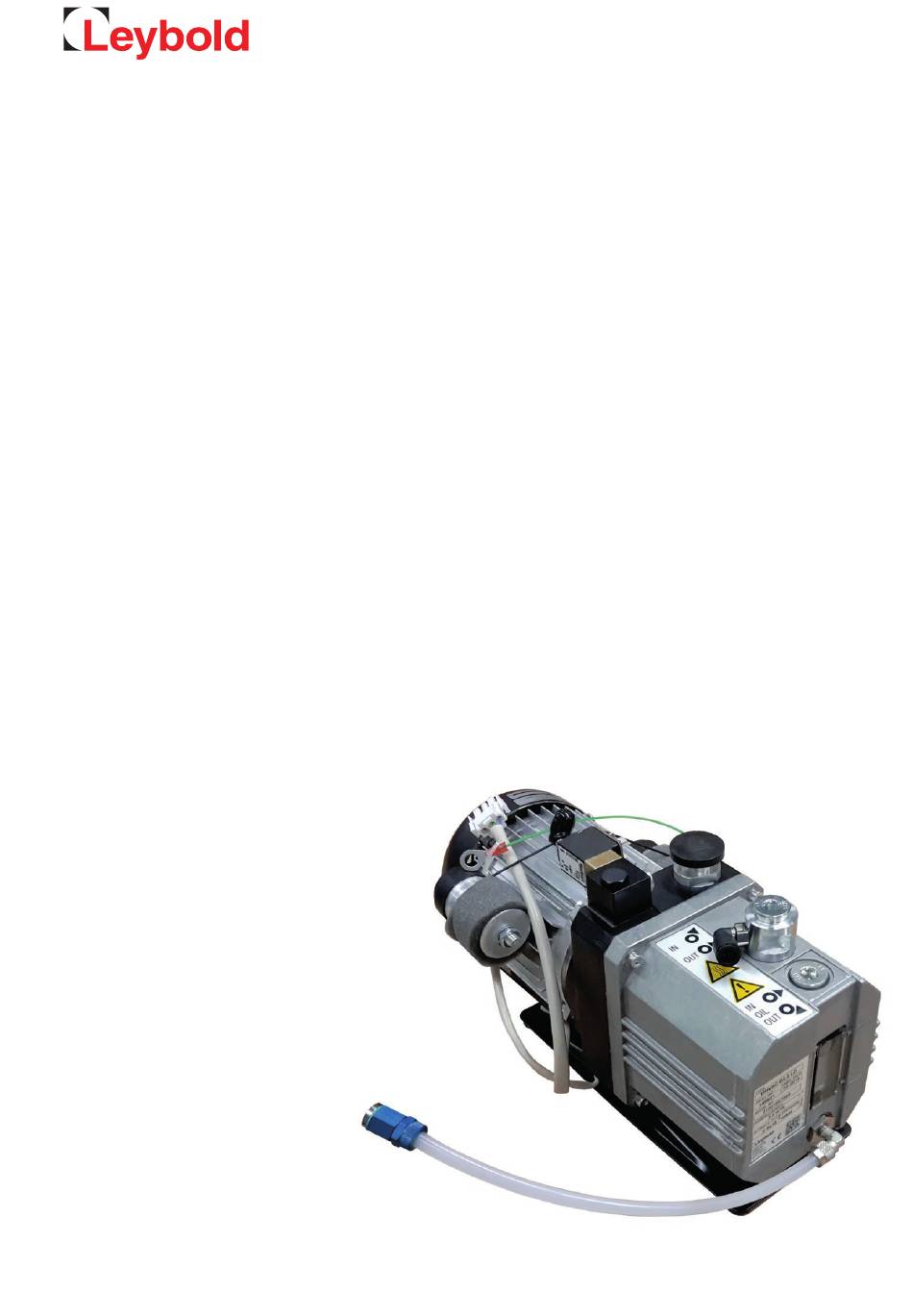

- Page 1 TRIVAC E 2 D 2,5 E for Leak Detector Dual-Stage Rotary Vane Vacuum Pump Operating Instructions GA01601_002_C1 This modified vacuum pump is intended for operation in the leak detector only. Part Nos. 140 020 140 021 140 022 E 140 020...
-
Page 2: Table Of Contents
Electrical Connection Operation Media Compatibility Start-up Operation 4.3.1 Pumping of Non-Condensable Gases and Vapours 4.3.2 Pumping of Condensable Gases and Vapours 4.3.3 Operating Temperature Shutdown 4.4.1 Shutdown through Monitoring Components 4.4.2 Controller/Mains Power Failure GA01601_002_C1 - 03/2018 - © Leybold... - Page 3 Wearing Parts and Original Spare Parts Maintenance Kits and Repair Sets Ordering Information for the Maintenance Kits and the Repair Sets Ordering Information for the Special Tools Waste Disposal EC Declaration of Conformity Original installation and operating instructions. GA01601_002_C1 - 03/2018 - © Leybold...
- Page 4 Operating Instructions and follow the information so as to ensure optimum and safe working right from the start. The TRIVAC D 2,5 E-LD has been designed for safe and efficient operation when used properly and in accordance with these Operating Instructions. It is...
-
Page 5: Important Safety Information
Provide an adequate ground connection for the pump so as to avoid any electrostatic charging. GA01601_002_C1 - 03/2018 - © Leybold... -
Page 6: Thermal Hazards
Regarding the suitability of the TRIVAC pumps for special applications in which such gases shall be pumped, Leybold should be consulted first. If the pump has previously handled hazardous gases, implement the proper precautionary measures before opening the intake or exhaust connection. -
Page 7: Danger Of Ignition
(LEL) published for the respective gases. GA01601_002_C1 - 03/2018 - © Leybold... -
Page 8: Risk Of Damaging The Pump
Here, the exhaust line must slope down and away from the pump. In the case of custom pumps (with part numbers deviating from those stated in the EC Declaration of Conformity) please note the information provided in the supplementary sheets. GA01601_002_C1 - 03/2018 - © Leybold... -
Page 9: Description
8 Oil level indicator Fig. 1 Rotary vane pump TRIVAC D 2,5 E-LD Description The TRIVAC D 2,5 E-LD is a dual stage oil sealed rotary vane vacuum pump. The number in the designation of the pump indicates the pumping speed of the pump in m ·... -
Page 10: Function
11 Exhaust valve 12 Bypass valve 13 Exhaust port Fig. 2 Principle of operation of the TRIVAC D 2,5 E-LD Function The rotor (2/5) which is eccentrically arranged in the pump housing (pump chamber) has two radially slidingvanes (2/6 and 2/8) which divide the pump chamber ofthe pump into several chambers. - Page 11 (tandem valve) which is controlled through the oil pressure.This requires that the gas ballast solenoid valve be closed. This reliably avoids any inadvertent venting of the vacuum chamber and the backstreaming of oil. GA01601_002_C1 - 03/2018 - © Leybold...
-
Page 12: Supplied Equipment
Description Supplied Equipment The TRIVAC D 2,5 E-LD pump is supplied as standard with the following items: Pump with motor Series pumps Replacement pump 140 020 - 140 022 E 140 020 is filled into the pump is included separately... -
Page 13: Technical Data
The motor may accelerate with a delay when simultaneously an undervoltage is present at the motor and the pump is at the minimum permissible and ambient temperature. mbar 10 Pressure Druck Fig. 3 Pumping speed characteristics of the TRIVAC D 2,5 E-LD GA01601_002_C1 - 03/2018 - © Leybold... - Page 14 T-board / plug Mains cord (0.37 m) Mains cord (0.37 m) with custom plug with custom plug Certificates for the motor Length of the pump 456 mm 456 mm Weight 13.4 kg 13.4 kg GA01601_002_C1 - 03/2018 - © Leybold...
- Page 15 1000 m above sea level Max. ambient temperature when operating 40 °C T-board / plug Mains cord (0.37 m) with custom plug Certificates for the motor Length of the pump 456 mm Weight 13.4 kg GA01601_002_C1 - 03/2018 - © Leybold...
- Page 16 UL certification mark for energy efficiency for listed products and approved components for Canada and the USA. Observe the data given on the motor name plate. NOTICE For special pumps please note the information contained in the supplemental sheet. GA01601_002_C1 - 03/2018 - © Leybold...
-
Page 17: Transport And Storing
When a pump is put into operation after it has been stored for over one year, standard maintenance should be run on the pump and the oil should also be exchanged. We recommend that you contact the Leybold Service. GA01601_002_C1 - 03/2018 - © Leybold... -
Page 18: Installation
The standard pump is not suited for installation in the explosion hazard areas. Observe Safety Informations 0.5. The TRIVAC D 2,5 E-LD pump can be set up on a flat, horizontal surface. Rubber feet under the coupling housing ensure that the pump can not slip. -
Page 19: Normal Use
The pumps are not suited for pumping of liquids or media which carry large quantities of dust. Corresponding protection devices need to be pro- vided. Our technical sales department is available for further advice in these matters. GA01601_002_C1 - 03/2018 - © Leybold... -
Page 20: Abnormal Use
Installation 3.2.1 Abnormal use NOTICE The TRIVAC D 2,5 E-LD is suited only for installation within housings providing adequate touch protection. This pump must not be operated wit- hout this additional touch protection. The TRIVAC is not suited for pumping of:... - Page 21 In order to reduce the emission of oil vapours we recommend the installation of an additional exhaust filter (Leybold accessory, see Section 1.4). Depending on the type of application or the kind of pumped media, the corresponding regulations and informati- on sheets must be observed.
-
Page 22: Electrical Connection
Observe Safety Informations 0.2. Operation Media Compatibility The TRIVAC D 2,5 E-LD pump can pump condensable gases and vapours, provided that the gas ballast valve is open and the pump has attained its operating temperature. Start-up Check the oil level each time before switching on the pump, see Section 5.3. -
Page 23: Operation
Observe Safety Informations 0.1. Operation The TRIVAC D 2,5 E-LD pump is capable of pumping gases and vapours. For pumping vapours it is required that the gas ballast valve be open (5/7) and that the pump has attained its operating temperature. -
Page 24: Operating Temperature
TRIVAC D 2,5 E-LD in this mode for about 30 min utes after completion of the process. In cyclic operation, the TRIVAC D 2,5 E-LD should not be switched off during the intervals between the individual working phases (power consumption is... -
Page 25: Shutdown
This avoids corrosion during idle periods. If the TRIVAC D 2,5 E-LD is to be shutdown for an extended period after pumping aggressive or corrosive media or if the pump has to be stored, pro-... -
Page 26: Maintenance
When the TRIVAC D 2,5 E-LD has been pumping corrosive media we recommend that possibly planned maintenance work be carried out imme- diately in order to prevent corrosion of the pump while it is at standstill. -
Page 27: Maintenance Plan
= Daily maintenance n Exchange of all seals 6m = Six monthly maintenance n Functional check a = Annual maintenance n-a = Maintenance every n years This service should be run by the Leybold - Service. GA01601_002_C1 - 03/2018 - © Leybold... -
Page 28: Leybold Service
Maintenance Leybold Service Whenever you send a pump to Leybold, indicate whether the pump is conta- minated or is free of substances which could pose a health hazard. If it is contaminated, specify exactly which substances are involved. You must use the form we have prepared for this purpose;... -
Page 29: Monitoring The Oil Level
Check and top up oil only after having shut down the pump first. Please note the safety information given in Section 0.3 and 0.4. Pumps which have not directly been delivered from Leybold, e.g. in systems, may have been filled with oils different from LVO 310. In this case a refill with LVO 310 may cause problems. -
Page 30: Oil Change
When disposing of waste oil, observe the applicable environment pro- tection regulations! When changing the oil use the same type of oil which was previously in the pump. If you want to change the type of oil entirely please consult us first. GA01601_002_C1 - 03/2018 - © Leybold... - Page 31 The tightening torque for the bolts (6/1) and (6/4) has been specified at 10 Nm. We can only guarantee that the pump operates as specified by the NOTICE technical data if the lubricants recommended by us are used. GA01601_002_C1 - 03/2018 - © Leybold...
-
Page 32: Removing And Inserting The Internal Demister
Use a pair of pliers to pull the spring (7/5) out to the front. Detach the holding frame (7/8) and the internal demister (7/7). Clean all parts and check them for perfect condition and replace them as required. Reassemble in the reverse order. GA01601_002_C1 - 03/2018 - © Leybold... -
Page 33: Disassembly And Reassembly Of The Electric Motor
3 Electric motor 4 Mounting bolts (4x) 5 Fan cowl 6 Tie rod 7 HV bearing piece 8 Foot of the pump 9 Hex. socket screws (4x) Fig. 8 Disassembly and assembly of the electric motor GA01601_002_C1 - 03/2018 - © Leybold... -
Page 34: Full Maintenance
A. The hole must always lead downward. Full maintenance Clean the pump and run maintenance on it. Clean and perform maintenance on the pump as described in the instruc- tions for maintenance kit 2, see Section 7.1. GA01601_002_C1 - 03/2018 - © Leybold... -
Page 35: Troubleshooting
Bubble test: The warm pump with degassed oil is running without gas ballast and the intake is blanked off. The exhaust line is led into a vessel with water. If an evenly spaced line of bubbles appears then the pump has an external leak. GA01601_002_C1 - 03/2018 - © Leybold... - Page 36 Vanes or bearings are damaged. Repair pump. Service Faulty motor bearing. Exchange the motor bearing. Service Oil leak at the side of the Outer shaft seal damaged or worn Exchange the shaft seal. Rep. Set 1 motor. out. GA01601_002_C1 - 03/2018 - © Leybold...
-
Page 37: Wearing Parts And Original Spare Parts
This set contains all wearing parts, all gaskets and the internal demister which separates the oil from the gas. They are used as follows: 1. Maintenance after three years of operation 2. Complete repair (for contents see Fig. 10, 11 and 12). GA01601_002_C1 - 03/2018 - © Leybold... -
Page 38: Ordering Information For The Maintenance Kits And The Repair Sets
Oil fill plug Seal for demister Spring clip Guide panel Holding frame for demister Demister 10 Oil box 11 Oil drain plug Parts contained in the Maintenance Kit 1 Fig. 9 Maintenance Kit 1 GA01601_002_C1 - 03/2018 - © Leybold... - Page 39 Tie rods (4x) A-bearing plate 10 Shaft sealing ring 11 Stopper 12 Compression spring 13 HV bearing piece 14 Base 15 Hex. socket bolts Parts included in the Repair Set 1 Fig. 10 Repair Set 1 GA01601_002_C1 - 03/2018 - © Leybold...
- Page 40 HV bearing piece Gasket 14 Spring clip End disk Oil drain plug 15 Securing ring Hex. socket bolt 16 Gas ballast cover Valve holder Parts contained in Maintenance Kit 2 Fig. 11 Maintenance Kit 2 GA01601_002_C1 - 03/2018 - © Leybold...
- Page 41 Vane (HV) Shaft sealing ring Vane (FV) Flat seal Compression spring Tandem valve Guide pin 10 Compression spring O-ring 11 Spacer Hex. socket bolt Parts included in the Complete Set Fig. 12 Complete Set GA01601_002_C1 - 03/2018 - © Leybold...
-
Page 42: Waste Disposal
Waste oil from vacuum pumps must not be mixed with other substances or materials. Waste oil from vacuum pumps (Leybold oils which are based on mineral oils) which are subject to normal wear and which are contaminated due to the influence of oxygen in the air, high temperatures or mechanical wear must be disposed of through the locally available waste oil disposal system. -
Page 43: Ec Declaration Of Conformity
EC Declaration of Conformity GA01601_002_C1 - 03/2018 - © Leybold... - Page 44 Many thanks for your understanding. 17200001_002_C0 © Leybold GA01601_002_C1 - 03/2018 - © Leybold...
- Page 45 Person to contact: Calibration: Factory-calibr. Phone : Fax: Quality test certificate DIN 55350-18-4.2.1 End user: A. Description of the Leybold product: Failure description: Material description : Catalog number: Additional parts: Serial number: Application-Tool: Type of oil (ForeVacuum-Pumps) : Application- Process: B.
- Page 46 Sales and Service Germany America Great Britain Leybold Japan Co., Ltd. Tsukuba Technical Service Center 1959, Kami-yokoba Leybold UK LTD. Leybold GmbH Tsukuba-shi, Ibaraki-shi 305-0854 Unit 9 Bonner Strasse 498 Japan Silverglade Business Park D-50968 Cologne Leybold USA Inc. Service:...
