RF INPUTS AND OUTPUTS

The ADRF5347-EVALZ has seven edge-mounted, subminiature A
(SMA) connectors for the RF inputs and outputs, as shown in
2.
Table 2. RF Inputs and Outputs
SMA Connectors Description
RFC RF common port
RF1 RF throw port 1
RF2 RF throw port 2
RF3 RF throw port 3
RF4 RF throw port 4
THRU1 Thru line input and output
THRU2 Thru line input and output
analog.com
The through calibration line, connecting the THRU1 and THRU2
RF connectors, calibrates out the board loss effects from the
measurements of the ADRF5347-EVALZ to determine the device
Table
performance at the pins of the IC.
loss for the ADRF5347-EVALZ at room temperature, as well as the
embedded and de-embedded insertion loss for the ADRF5347.
EVAL-ADRF5347

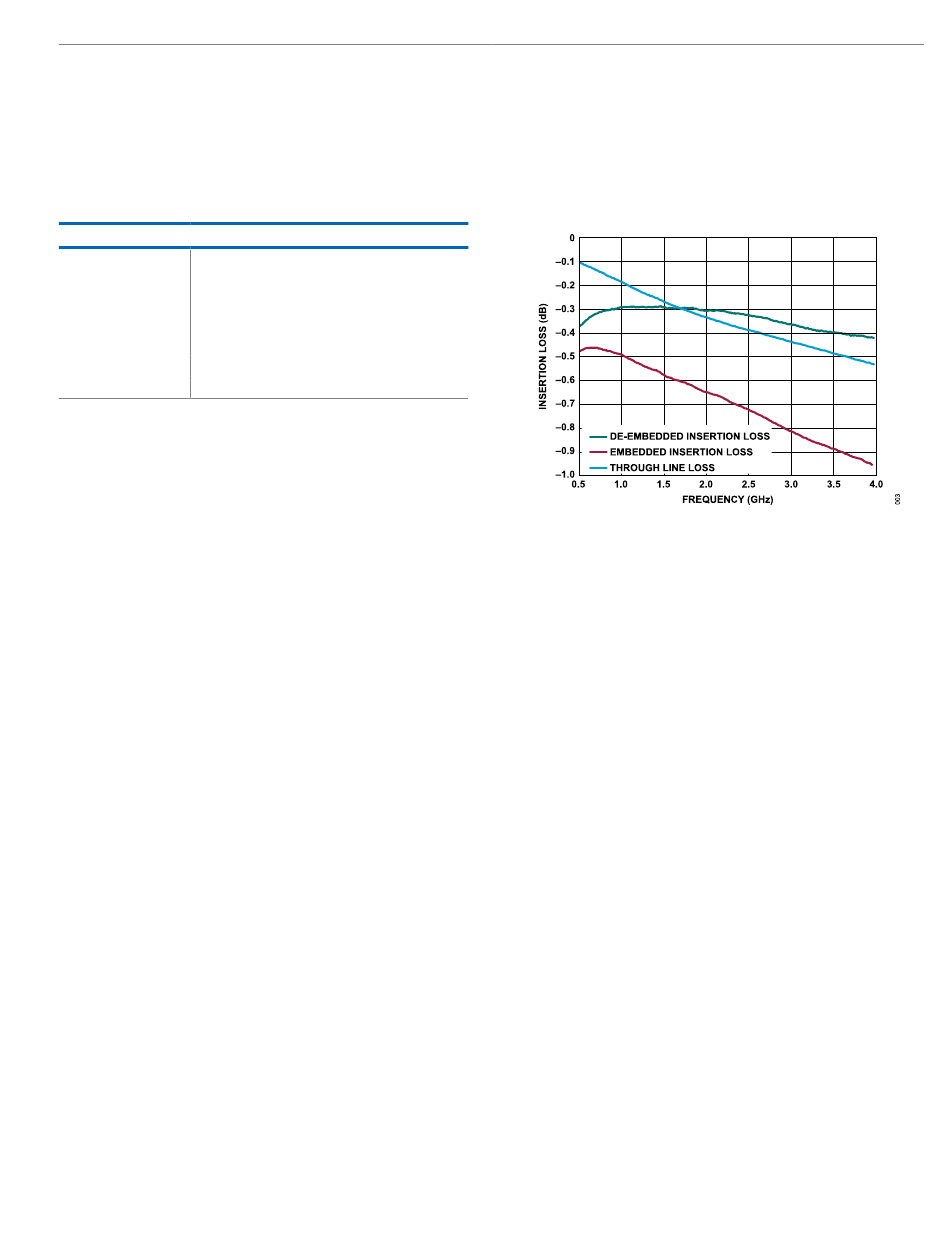

Figure 3 shows the typical board
Figure 3. Insertion Loss vs. Frequency
Rev. 0 | 4 of 8
