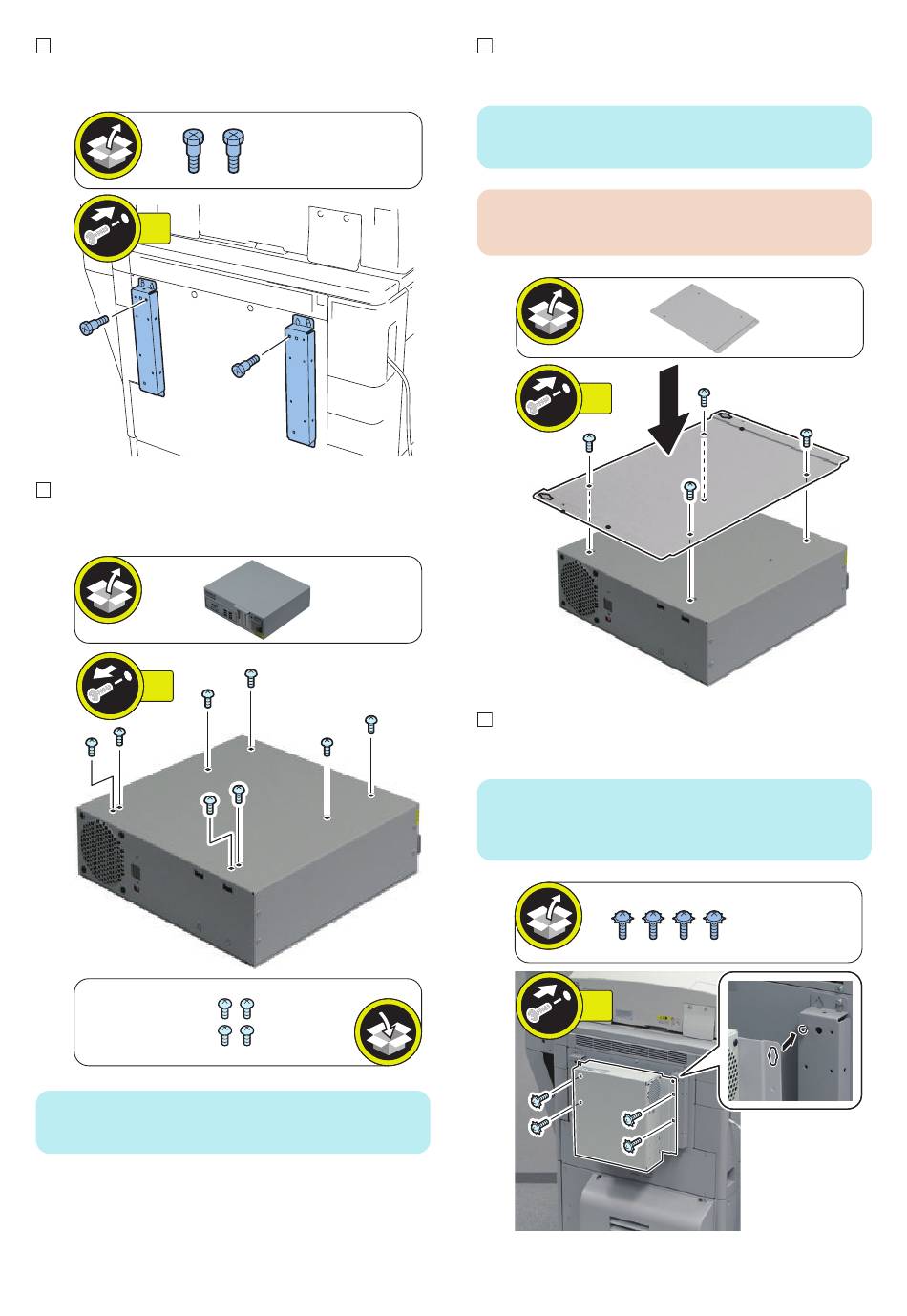

5.
2x
6.
8x
NOTE:
The removed 4 screws will be used in step 7.
Stepped Screw; M4x9
7.
NOTE:
Use the 4 screws removed in steps 6.
CAUTION:
Be sure to install it in the correction direction.
4x
8.
NOTE:
Hook the imagePRESS Server to the 2 Stepped Screws
(M4x9) tightened in step 5 to install it.
4x
71
7. INSTALLATION PROCEDURE
Binding; M4x8
(Screw with
Toothed Washer)
