No.
A
HDD
B
Power supply
No.
Cable key
1
Power supply cables
2
10-pin power button cable
3
HDD data cable
4
Service board cable
5
CPU fan cable
6
Chassis fan cable
Removing and replacing imagePRESS Server components
Before replacing costly components, be sure to verify the connections between the printer and the imagePRESS Server. Also,
verify the connections of each replaceable imagePRESS Server component. For more information about troubleshooting, see
"Troubleshooting" on page
The following sections describe how to remove and install replaceable parts on the imagePRESS Server:
• Printer interface board
• DIMM
• Battery
• Motherboard
• CPU and CPU cooling assembly
• Service board
• Chassis fan
• Power supply
• Hard disk drive (HDD)
For information about replacing other components, see the documentation that accompanies your printer.
A
1a
3
1c
4
C
1b
6

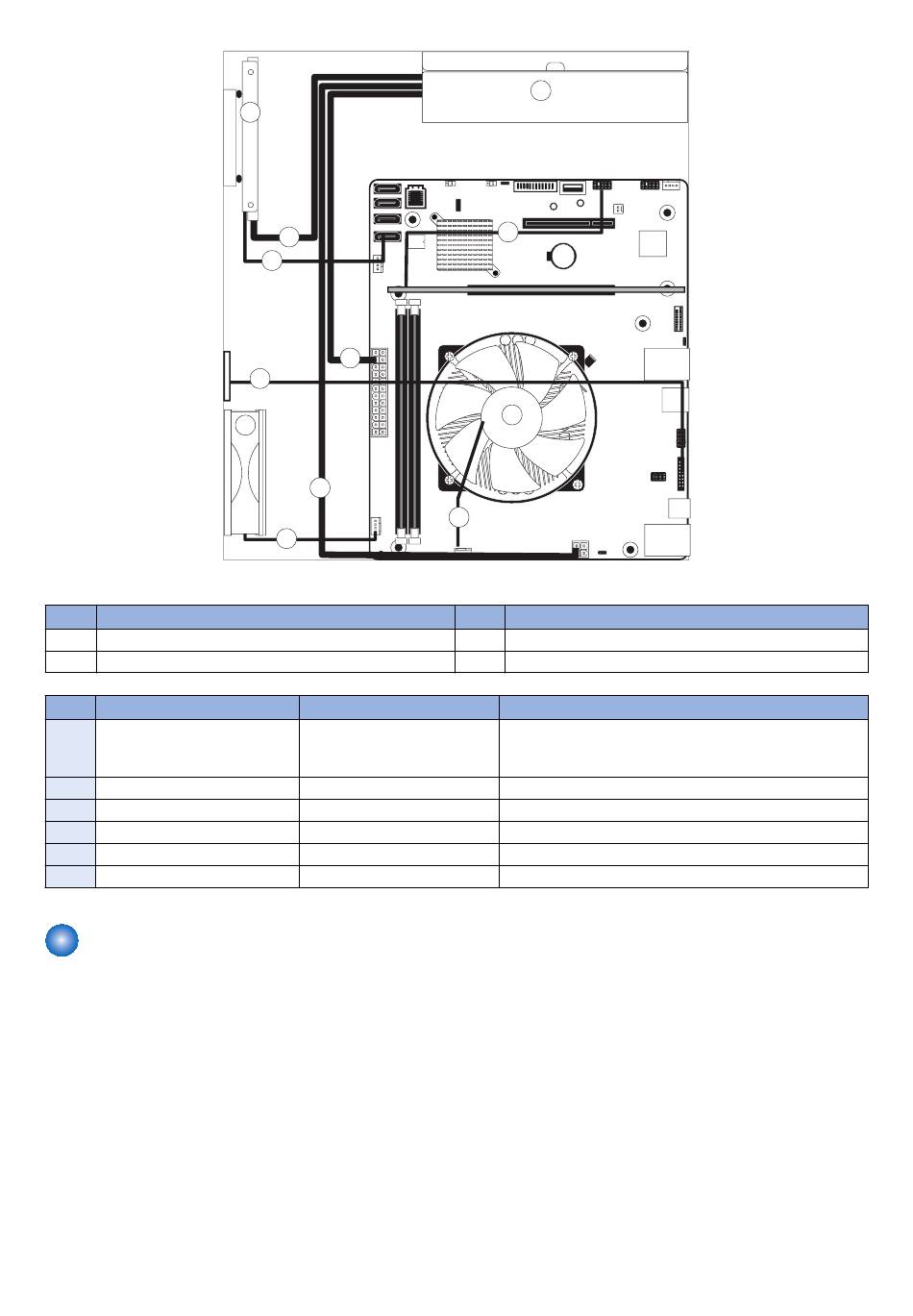

imagePRESS Server internal cable connections
Item
From
Power supply
Printer interface board (J351)
HDD data connector
Service board connector
CPU fan
Chassis fan
48.
B
2
D
5
No.
C
Chassis fan
D
CPU fan
a. SATA power connector-HDD
b. 4-pin motherboard connector (PWRCONN1)
c. 24-pin motherboard connector (J24)
J11 connector on motherboard
SATA0 on motherboard
EFI GPIO Header connector on motherboard (J4)
CPUFAN connector on motherboard (CPU FAN J16)
FRONT FAN connector on motherboard (J30)
15
3. REPLACING PARTS
Item
To
