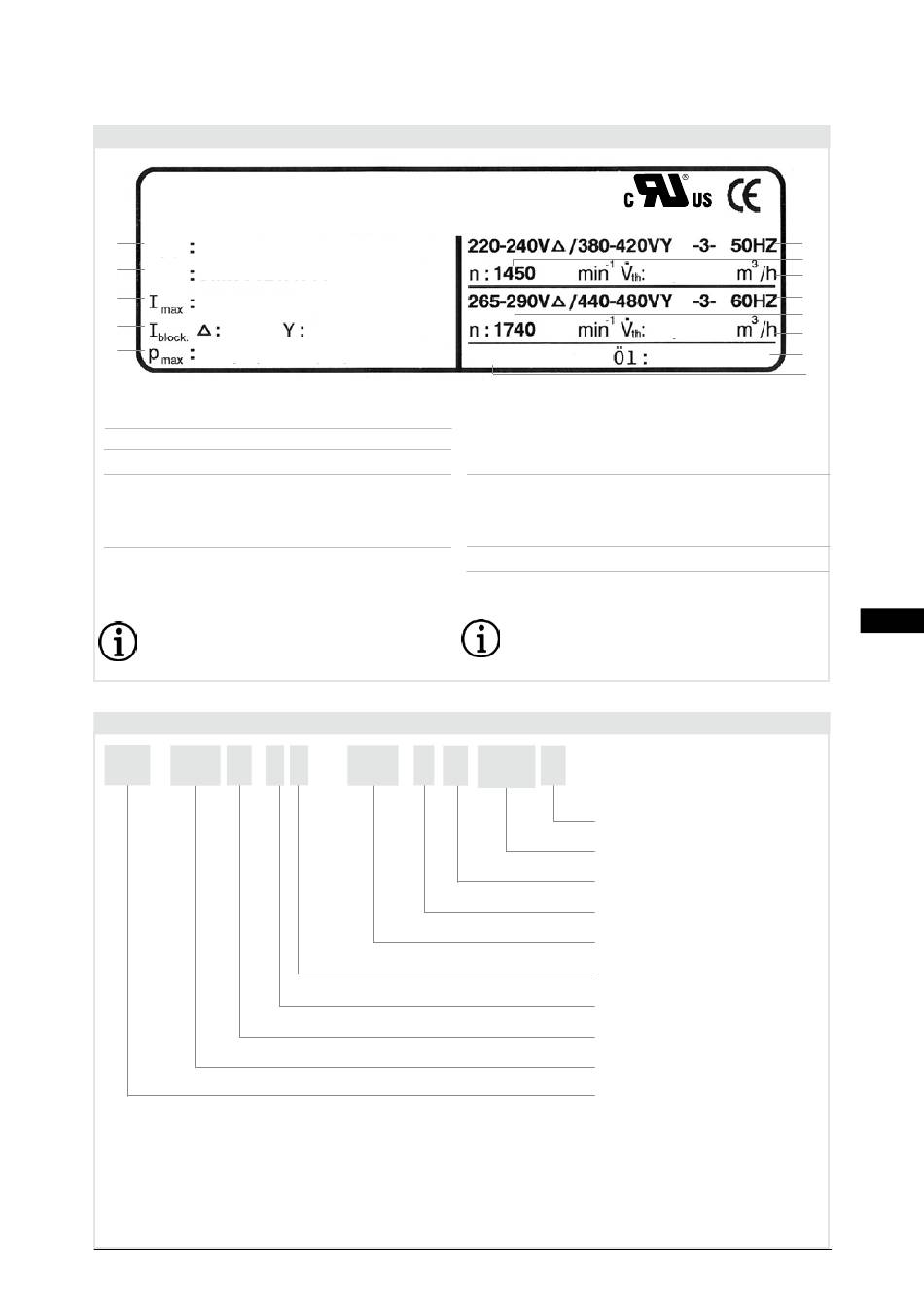

2 | Product description
2.2 Name plate (example)
BOCK
UL-HGX12/40 S 5 CO
Type
1
BC12345A001
2
No.
3
17,5/10,1A
4
111A
LP/HP = 1450/2176 psig
5
Fig. 3
1
Type designation
2
Machine number
3
maximum operating current
4
Starting current (rotor blocked)
5
LP: max. admissible operating
pressure (g) Low pressure side
HP: max. admissible operating
pressure (g) High pressure side
Observe the limits of application
diagrams!
2.3 Type key (example)
UL -
HG
X
1 2
¹
)
HG - Hermetic Gas-Cooled (suction gas-cooled)
²
)
X
- Ester oil charge
³
)
ML - Normal cooling and deep freezing at low and medium evaporation temperatures
S
- For frequency regulation and extended limits of application
SH - For high evaporating temperatures eg. heat pumps, different oil charge
© Danfoss | Climate Solutions | 2023.06
Bock GmbH, Benzstraße 7
72636 Frickenhausen, Germany
T
2
64A
IP66
6
7
8
9
10 Nominal rotation speed
11 Displacement
12 Oil type filled at the factory
13 Terminal box protection type
/
40 S
5
CO
thermally protected system
3,5
4,2
BOCK lub E85
Voltage, circuit, frequency
Nominal rotation speed
Displacement
Voltage, circuit, frequency
Electrical accessories can change
the IP protection class!
T
2
Transcritical
CO
version
2
HP code for motor size
Compressor version ³
Swept volume
Number of cylinders
Size
Oil charge ²
Series ¹
)
Identification UL compressor
AQ450438405295en-US0201 | 7
6
7
8
9
10
11
12
13
}
50 Hz
}
60 Hz
)
)
D
US
