2| Product description

2.2 Name plate (example)

BOCK
: UL-HGX12P/110 S 3
Type :HGX12P/110 S 3
No
: AS35830A001
10,6 / 6,1A
45A
LP/HP = 276/406 psig

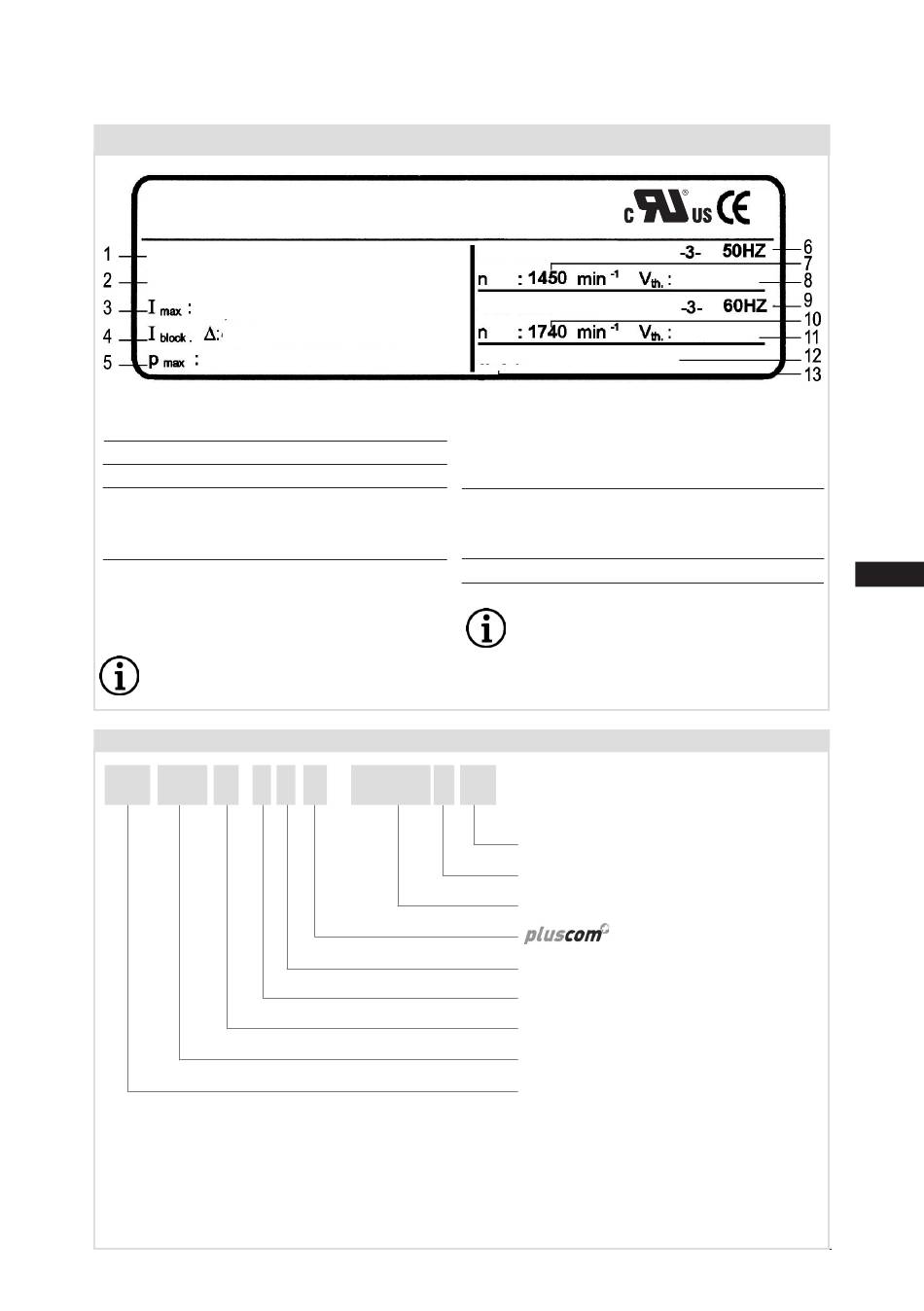

Fig. 3
1 Type designation
2 Machine number
3 maximum operating current
4 Starting current (rotor blocked)
Y: Part winding 1
YY: Part windings 1 and 2
5 LP: Max. admissible operating pressure
(g) Low pressure side
HP: Max. admissible operating
pressure (g) High pressure side
Observe the limits of application
diagrams!

2.3 Type key (example)

UL- HG X 1 P
¹ ) HG - Hermetic Gas-cooled (suction gas-cooled) for the normal- / air conditioning applications
)
² X - Ester oil charge (HFC refrigerant, e.g. R134a, R404A/R507, R407C)
³ ) Additional declaration for Pluscom compressors
4) S - More powerful motor, e.g. for air-conditioning applications
