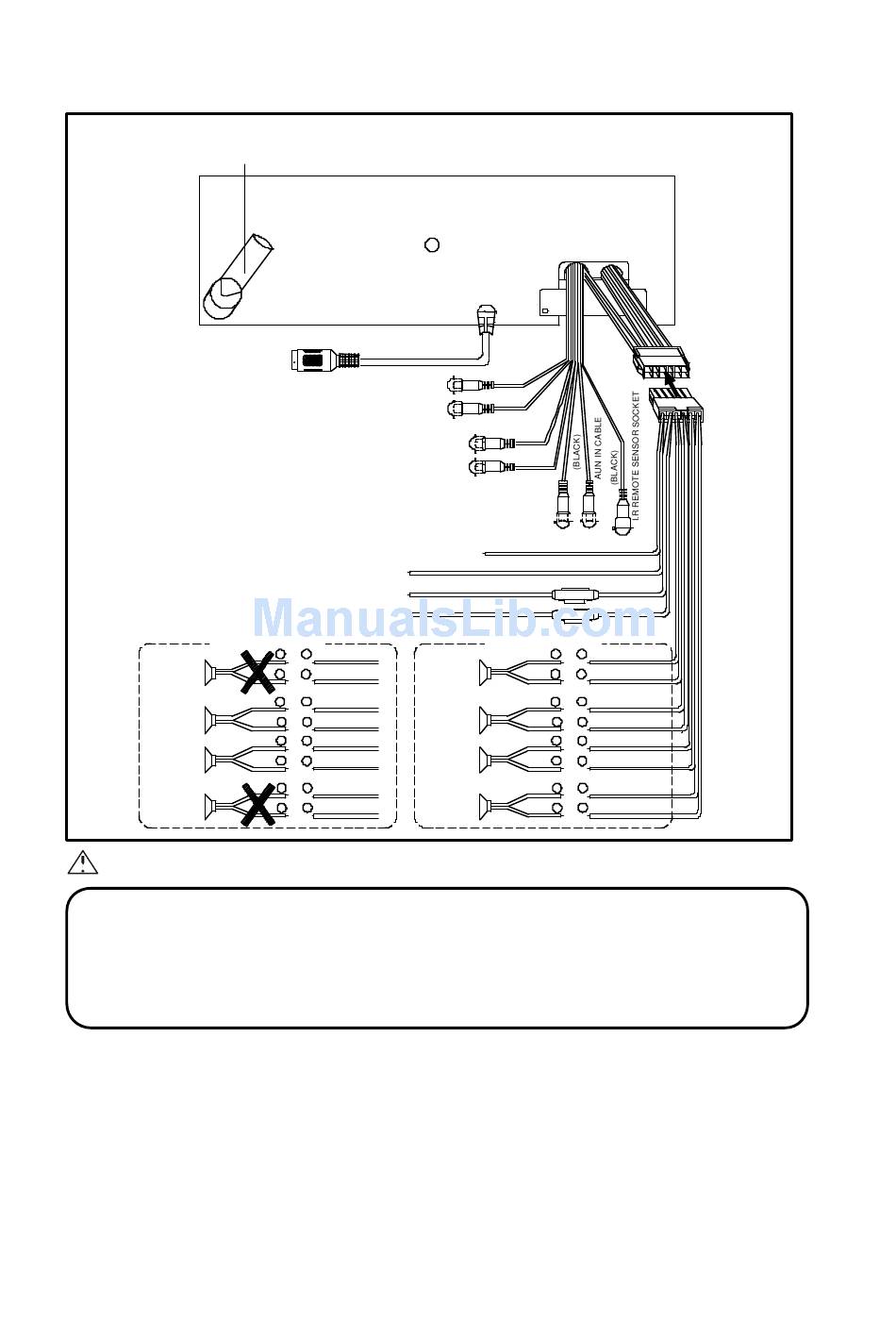

ELECTRICAL CONNECTIONS

WIRING
Antenna Socket
CD CHANGER
AND SIRIUS RECEIVER
CONNECTOR SOCKET
Power Antenna/Amplifier Turn On (Blue/Red)
+12V Constant Power Supply (Yellow)
+12V Accessory/Switched (Red)
2-SPEAKER SYSTEM
Rear Left
Speaker
Front Left
Speaker
Front Right
Speaker
Rear Right
Speaker
CAUTION
• DO NOT connect any speaker wires to the metal body or chassis of the
vehicle.
• DO NOT connect the speaker common (–) wires to each other.
• Connect each speaker wire directly to each speaker terminal.
• All speaker common (–) wires must remain floating.
1. Antenna Socket
• Insert the plug from the antenna installed in your vehicle into this socket. (If your vehicle has a
dual antenna system, a dual antenna to single antenna cable adaptor may be required.)
2. + 12V Constant Power Supply (Yellow)
• Connect this wire to the +12V power terminal which receives power continuously.
3. +12V Accessory/Switched (Red)
• Connect this wire to the terminal which receives power while the ignition switch is ON or in the
ACCESSORY position.
• If the ignition switch does not have on ACC position, connect this wire to a +12V power
terminal which receives power continuously. (Same as item 2.)
(BLACK)
Rch Red
Lch White
FRONT LINE OUT CABLE
Rch Red
Lch White
Ground Wire (Black)
-
-
(GREEN/BLACK)
Rear Left
+
+
(GREEN)
Speaker
-
-
(WHITE/BLACK)
Front Left
+
+
(WHITE)
Speaker
-
-
(GRAY/BLACK)
Front Right
+
+
(GRAY)
Speaker
-
-
(VIOLET/BLACK)
Rear Right
+
+
(VIOLET)
Speaker
20
(Brown)
(Brown)
(Gray)
(Gray)
REAR LINE OUT CABLE
Lch White
Rch Red
4-SPEAKER SYSTEM
-
-
(GREEN/BLACK)
+
+
(GREEN)
-
-
(WHITE/BLACK)
+
+
(WHITE)
-
-
(GRAY/BLACK)
+
+
(GRAY)
-
-
(VIOLET/BLACK)
+
+
(VIOLET)
