OWNER'S
MANUAL

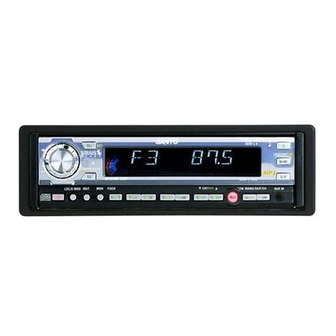

ECD-T1550
• PLL Synthesizer Stereo Radio
• Digital Compact Disc Player
• Automatic Memory Storing
• Motorized Hidden Panel
• Preset Equalization
• Auxiliary Input Jack
• Credit Card Remote Control
• Multi-Color LCD
• Plays CD-R/RW discs

Advertisement

Table of Contents
loading

  Related Manuals for Sanyo ECD-T1550

  Summary of Contents for Sanyo ECD-T1550

  • Page 1 OWNER'S MANUAL ECD-T1550 • PLL Synthesizer Stereo Radio • Digital Compact Disc Player • Automatic Memory Storing • Motorized Hidden Panel • Preset Equalization • Auxiliary Input Jack • Credit Card Remote Control • Multi-Color LCD • Plays CD-R/RW discs...
  • Page 2: Table Of Contents

    CONTENTS Installation...3 Take out screw before installation ...3 DIN Front-Mount (Method A) ...3 Installing the unit ...3 Removing the unit ...4 DIN Rear-Mount (Method B)...5 Using the front panel...6 Wiring Connection ...7 Operation...8 Switching on/off the unit...9 Faceplate release ...9 Sound adjustment ...9 Loudness ...9 Set the clock...9...
  • Page 3: Installation

    INSTALLATION Notes: • Choose the mounting location where the unit will not interfere with the normal activity of the driver. • Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly. Test to see if the system is working properly.
  • Page 4: Removing The Unit

    INSTALLATION Sleeve L Key R Key 4. Mount the sleeve by inserting the sleeve into the opening of the dashboard and bend open the tabs located around the sleeve with a screwdriver. Not all tabs will be able to make contact, so examine which ones will be most effective.
  • Page 5: Din Rear-Mount (Method B)

    INSTALLATION DIN REAR-MOUNT (Method B) 1. Factory-installed radio bracket 2. Car radio mounting bracket 3. Screw 4. After aligning the car radio mounting bracket with the factory-installed radio bracket, tighten the screws (M5x4mm) at 2 places on each side. 5. When fixing factory-installed radio bracket with the screws, use a standard-tipped screwdriver to pry the tabs of the car radio mounting bracket...
  • Page 6: Using The Front Panel

    USING THE FRONT PANEL 1. When the ignition key is switched to “ACC ON”, the panel of the unit will change from State 1 to State 2 (see below), the hidden panel will turn up. State 1 State 2 2. Press (power) button to turn on the unit.
  • Page 7: Wiring Connection

    WIRING CONNECTION 4 x 50W System ANTENNA SOCKET IGNITION SWITCH (ACC+) YELLOW MEMORY BACK-UP (B+) BLACK GROUND (B–) BLUE POWER ANTENNA FRONT Lch SPEAKER WHITE/BLACK REAR Lch SPEAKER GREEN/BLACK MAIN UNIT WHITE GREEN (GREY) Rch RED RCA CABLE Lch WHITE GREY FRONT Rch SPEAKER...
  • Page 8: Operation

    OPERATION 16 17...
  • Page 9: Switching On/Off The Unit

    OPERATION SWITCHING ON/OFF THE UNIT When the hidden panel turns up (in State 2), switch the unit on by pressing any button (except button (4)). When system is on, press (9) to turn the unit off. SOUND ADJUSTMENT Press SEL button (10) to select the desired adjustment mode.
  • Page 10: Radio Operation

    OPERATION RADIO OPERATION • SWITCHING TO RADIO MODE Press MOD button (6) shortly to select radio mode, the radio mode appears in the display together with the memory band and frequency. • SELECTING THE FREQUENCY BAND At radio mode, press BND/LOUD button (13) shortly to select the desired band.
  • Page 11: Selecting Tracks

    OPERATION If a CD is already inserted in the player: Keep pressing MOD button (6) shortly until the CD mode display appears. • SELECTING TRACKS Press MANU/SKIP MANU/SKIP+ button(17) to move to the previous track or the following track. Track number shows on display. Hold MANU/SKIP MANU/SKIP+ button (17) to fast...
  • Page 12: Specification

    GENERAL Power Supply Requirements Chassis Dimensions Tone Controls - Bass (at 100 Hz) - Treble (at 10 KHz) Maximum Output Power Current Drain CD PLAYER Signal to Noise Ratio Channel Separation Frequency Response RADIO Frequency Coverage Sensitivity (S/N=30dB) Stereo Separation...
  • Page 13: Trouble Shooting

    TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom No power. The car ignition switch is not on. The fuse is blown. Disc cannot be Presence of CD disc inside loaded or ejected.
  • Page 14 In order to obtain warranty service, the product must be delivered to and picked up from an Authorized Sanyo Factory Service Center at the user’s expense, unless specifically stated otherwise in this warranty. The names and addresses of Authorized Sanyo Service Centers may be obtained by calling the toll-free number listed below.
  • Page 16 21605 Plummer Street Chatsworth, CA91311 ECD-T1443. Issue Number 1. Printed in Hong Kong 88-C1732-01...
