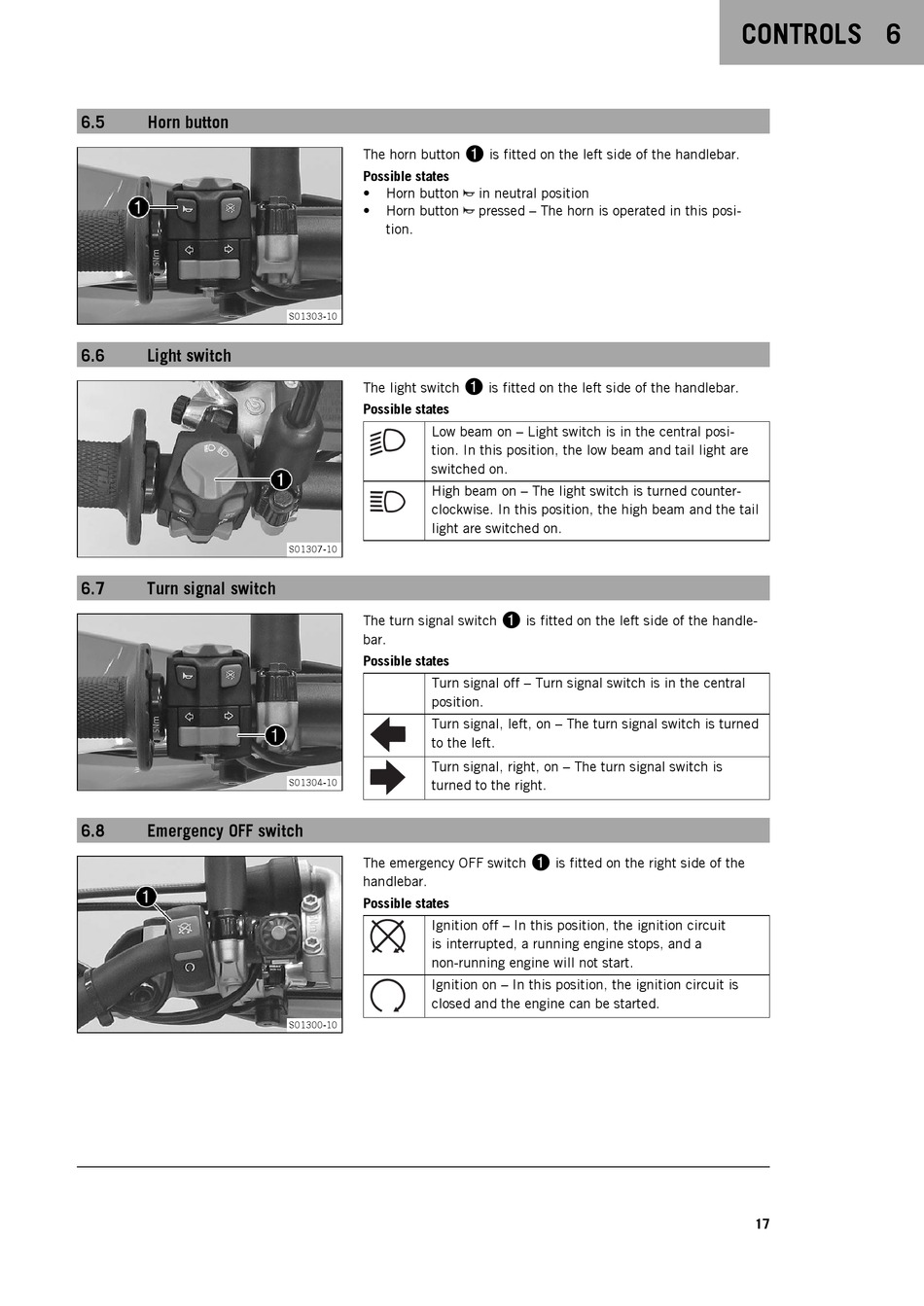

Horn button
6.6
Light switch
6.7
Turn signal switch
6.8
Emergency OFF switch
The horn button
Possible states
•
Horn button
•
Horn button
tion.
S01303-10
1
The light switch
Possible states
Low beam on – Light switch is in the central posi-
tion. In this position, the low beam and tail light are
switched on.
High beam on – The light switch is turned counter-
clockwise. In this position, the high beam and the tail
light are switched on.
S01307-10
The turn signal switch
bar.
Possible states
Turn signal off – Turn signal switch is in the central
position.
Turn signal, left, on – The turn signal switch is turned
to the left.
Turn signal, right, on – The turn signal switch is
S01304-10
turned to the right.
The emergency OFF switch
handlebar.
Possible states
Ignition off – In this position, the ignition circuit
is interrupted, a running engine stops, and a
non-running engine will not start.
Ignition on – In this position, the ignition circuit is
closed and the engine can be started.
S01300-10
1
is fitted on the left side of the handlebar.
in neutral position
pressed – The horn is operated in this posi-
is fitted on the left side of the handlebar.
1
is fitted on the left side of the handle-
1
is fitted on the right side of the
