How do I level and fasten the MAAX 106380 shower base during installation?

To level and fasten the MAAX 106380 shower base: first, ensure the installation surface is even and level, using mortar or equivalent if necessary. Do not use shims to level the base, as this will void the MAAX warranty. After positioning the base, test if water drains properly by plugging the drain, filling the base with water, and then unplugging it. If drainage is not complete, make adjustments with mortar. Ensure the surface is level and dry before fastening. Pre-drill the mounting flange with a 3/16" bit at fastening locations and secure the base to the studs using #8 screws. Use wooden shims between studs and the mounting flange if needed to maintain position. Do not install the base over wet mortar. For more information, see page 9 of the manual.

What initial steps should I take before installing the MAAX 106380 shower base?

Before installing the MAAX 106380 shower base, you should: consult local building codes to ensure compliance with standards, carefully inspect the unit for any damage or defects after removing it from its packaging, move the unit close to the installation spot, and ensure the floor is level. If renovating, remove existing drywall before framing and plumbing, and verify walls are properly insulated and meet building codes. For more information, see page 4 of the manual.

What is the correct procedure for installing the drain cover on the MAAX 106380 shower base?

To install the drain cover on the MAAX 106380 shower base: apply silicone around the edge of the drain hole in the base (the surface between the top part of the drain and the base). Insert the top part of the drain into the drain hole. Install the rubber gasket, then the cardboard gasket, on the top part of the drain coming out under the base. Screw the bottom part of the drain onto the top part of the drain under the base. Ensure the drain cover is centered and does not contact the acrylic sides. For more information, see page 8 of the manual.

What should I do if my MAAX 106380 shower base arrives damaged?

If you discover any damage or defect in the finish of your MAAX 106380 shower base upon inspection, you should contact your distributor directly. The warranty does not cover damages or defects in the finish after the unit has been installed. For more information, see page 4 of the manual.

How do I prepare the drain opening for the MAAX 106380 shower base?

To prepare the drain opening for the MAAX 106380 shower base, use a circular saw to cut a 6" x 6" square opening around the drain center. The drain center is outlined by Measurements C and D as shown in the table on the previous page. For more information, see page 8 of the manual.

How can I protect the MAAX 106380 shower base during installation?

To protect your MAAX 106380 shower base during installation, it is recommended to lay a piece of cardboard on the base. For more information, see page 4 of the manual.

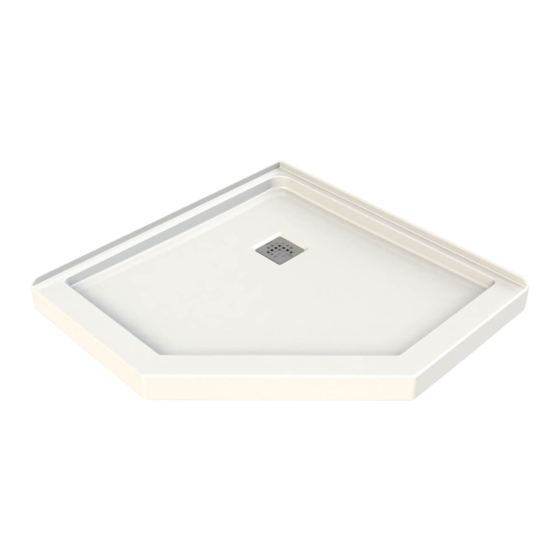

MAAX 106380 Installation Instructions Manual

Shower bases

Hide thumbs Also See for 106380:

Installation instructions manual (16 pages)

page of 12

/ 12
FAQs
Bookmarks

Quick Links

Download this manual
Frequently Asked Questions (6)

Shower Bases • Bases de douche • Bases de Ducha

106380

Read all instructions carefully before proceeding.

Lire toutes les instructions attentivement avant de commencer

l'installation.

Leer detenidamente todas las instrucciones antes de comenzar

la instalación.

IMPORTANT

• Record the serial number

IMPORTANT

• Noter le numéro de série

IMPORTANTE

• Registre el número de serie

INSTALLATION INSTRUCTIONS

GUIDE D'INSTALLATION

GUÍA PARA INSTALACIÓN

•

106381

106382

•

107331

107332

SAVE THIS GUIDE FOR FUTURE REFERENCE.

CONSERVER POUR UN USAGE ULTÉRIEUR.

CONSERVE ESTE MANUAL COMO REFERENCIA.

Serial number • Numéro de série • Número de Serie

•

107333

How do I level and fasten the MAAX 106380 shower base during installation?

To level and fasten the MAAX 106380 shower base: first, ensure the installation surface is even and level, using mortar or equivalent if necessary. Do not use shims to level the base, as this will void the MAAX warranty. After positioning the base, test if water drains properly by plugging the drain, filling the base with water, and then unplugging it. If drainage is not complete, make adjustments with mortar. Ensure the surface is level and dry before fastening. Pre-drill the mounting flange with a 3/16" bit at fastening locations and secure the base to the studs using #8 screws. Use wooden shims between studs and the mounting flange if needed to maintain position. Do not install the base over wet mortar.
For more information, see page 9 of the manual.

Was this helpful?
What initial steps should I take before installing the MAAX 106380 shower base?

Before installing the MAAX 106380 shower base, you should: consult local building codes to ensure compliance with standards, carefully inspect the unit for any damage or defects after removing it from its packaging, move the unit close to the installation spot, and ensure the floor is level. If renovating, remove existing drywall before framing and plumbing, and verify walls are properly insulated and meet building codes.
For more information, see page 4 of the manual.

Was this helpful?
What is the correct procedure for installing the drain cover on the MAAX 106380 shower base?

To install the drain cover on the MAAX 106380 shower base: apply silicone around the edge of the drain hole in the base (the surface between the top part of the drain and the base). Insert the top part of the drain into the drain hole. Install the rubber gasket, then the cardboard gasket, on the top part of the drain coming out under the base. Screw the bottom part of the drain onto the top part of the drain under the base. Ensure the drain cover is centered and does not contact the acrylic sides.
For more information, see page 8 of the manual.

Was this helpful?
What should I do if my MAAX 106380 shower base arrives damaged?

If you discover any damage or defect in the finish of your MAAX 106380 shower base upon inspection, you should contact your distributor directly. The warranty does not cover damages or defects in the finish after the unit has been installed.
For more information, see page 4 of the manual.

Was this helpful?
How do I prepare the drain opening for the MAAX 106380 shower base?

To prepare the drain opening for the MAAX 106380 shower base, use a circular saw to cut a 6" x 6" square opening around the drain center. The drain center is outlined by Measurements C and D as shown in the table on the previous page.
For more information, see page 8 of the manual.

Was this helpful?
How can I protect the MAAX 106380 shower base during installation?

To protect your MAAX 106380 shower base during installation, it is recommended to lay a piece of cardboard on the base.
For more information, see page 4 of the manual.

Was this helpful?

Need help?

Do you have a question about the 106380 and is the answer not in the manual?

Questions and answers

Summary of Contents for MAAX 106380

Page 1 GUIDE D’INSTALLATION GUÍA PARA INSTALACIÓN Shower Bases • Bases de douche • Bases de Ducha • • • • • 106380 106381 106382 107331 107332 107333 Read all instructions carefully before proceeding. SAVE THIS GUIDE FOR FUTURE REFERENCE. CONSERVER POUR UN USAGE ULTÉRIEUR.
Page 2 Gracias por confiar en MAAX para la a MAAX unit. l’achat de votre unité. compra de su unidad. We can assure you that MAAX uses only Nous pouvons vous garantir que MAAX a Le garantizamos que MAAX utiliza los the finest materials and employs strict utilisé...
Page 3 Parts and components • Liste des pièces et composantes • Piezas y componentes Part Pièce Pieza Code Qté Base Base Base * ** Drain Drain Drenaje * ** Drain cover Grille Cubierta * ** Screw Tornillo * According to selected model. | * Selon le modèle selectionné | * Según el modelo seleccionado ** DRAIN NOT INCLUDED WITH THE ROKA BASES | **DRAIN NON INCLUS AVEC LES BASES ROKA | ** DRENAJE NO INCLUIDO CON LAS BASES ROKA...
Page 4 La garantie ne couvre pas les dommages que haya instalado la unidad, la garantía the unit has been installed. MAAX is not ou les défauts de finition une fois l’unité no cubrirá los daños o defectos de responsible for any shipping damages once installée.
Page 5 General considerations • Règles générales •Reglas Generales Framing Construction de la structure Construcción de la estructura DO NOT DO ANY FRAMING WORK NE PAS CONSTRUIRE LA STRUCTURE CONSTRUYA LA ESTRUCTURA UNTIL YOU HAVE RECEIVED THE UNIT. AVANT D’AVOIR REÇU L’UNITÉ. Afin ANTES DE RECIBIR LA UNIDAD.
Page 6 Building the structure • Construction de la structure • Construcción de la estructura The dimensions of the structure must be checked against the unit dimensions. Les dimensions de la structure doivent être vérifiées à partir des dimensions de l’unité. Las dimensiones de la estructura deben verificarse a partir de las dimensiones de la unidad. 6"...
Page 7 Les dimensions de la structure doivent être vérifiées à partir des dimensions de l’unité. Las dimensiones de la estructura deben verificarse a partir de las dimensiones de la unidad. 6" Code 106380 38 1/8" (968) 38 1/8" (968) 12" (305) 12"...
Page 8 Base installation • Installation de la base • Instalación de la base 2.1 Apertura para el drenaje 2.1 Drain Opening 2.1 Ouverture du drain Con una sierra circular, recorte un cuadrado Using a circular saw, cut a 6" x 6" square À...
Page 9 Do not use shims to level base! Doing nivelar la base! Hacerlo anulará la mettre la base à niveau! Si tel est fait so will void the MAAX warranty. garantía. la garantie MAAX sera annulé. S'assurer que la surface d'installation soit Verify the installation surface is even and Verifique que la superficie de la instalación...
Page 10 Maintenance • Entretien • Limpieza y mantenimiento Regular disinfection provides an effective Une désinfection régulière constitue une La desinfección periódica es una excelente defence against various types of bacteria forma de prevenir la aparición de diferentes excellente prévention contre les types de tipos de bacterias que suelen desarrollarse that can develop in deposits that build up bactéries susceptibles de se développer...
Page 11 LIMITED WARRANTY — UNITED STATES MAAX Bath Inc. offers express limited warranty on each of its products. This warranty extends only to the original owner/end-user for personal household use. For commercial uses, additional limitations apply. For accessing product Limited warranty please visit: https://maax.com/services/warranty...
Page 12 Technical Services • Service technique • Servicio Técnico Canada United States T. 1 877 GET-MAAX (1 877 438-6229) T. 1 877 GET-MAAX (1 877 438-6229) F. 1 800 201-8308 F. 1 800 944-9808 10042676 © MAAX Bath Inc., 2022 Printed in Canada •...
