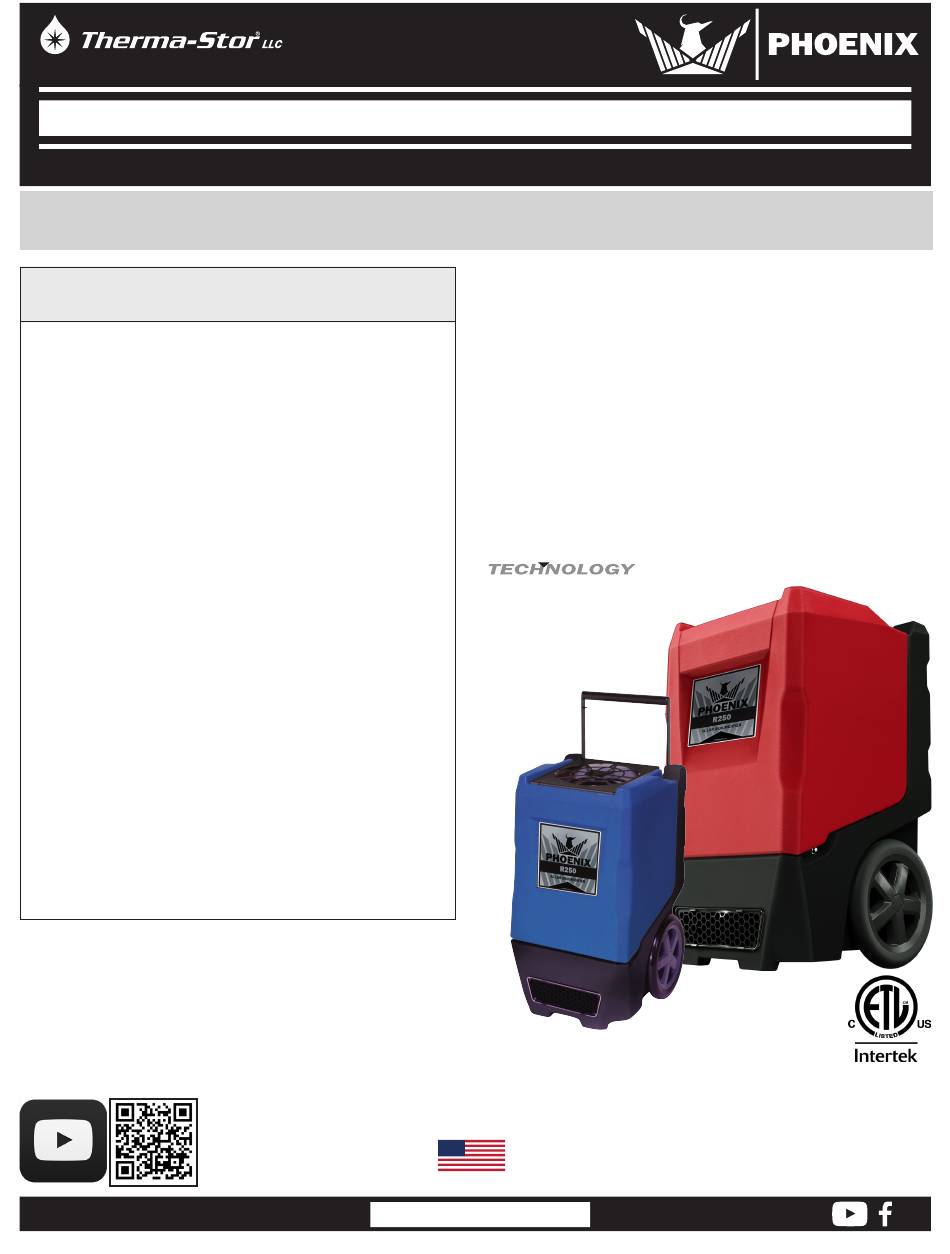

The Phoenix R250 LGR Dehumidifier
Coated Coils – For longer life, protection against
corrosion in the harshest environments, and protection
against the loss of the heat transfer properties of the
coil.
Capacity - The Phoenix R250 removes 135 pints per
day at AHAM, (80°F/60%RH).
Energy Efficiency - Draws only 8.3 amps and removes
6.0 pints/kWh.
310 CFM - Faster drying and superior static pressure
for ducting.
Hi-Temp Operation - up to 110°F
Heavy-Duty Condensate Pump.
Compact Design - 20"x20"x33.5".
Telescoping Handle - A heavy-duty retractable handle
for ease of transport and reduces space for storage
and stacking.
Recessed 12" Wheels - Allows greater maneuverability
on the job site and efficient storage. Rolls over
obstacles with ease.
Pleated Media Air Filter - A 12"x12"x1" MERV-11 filter
is standard.
Stacking/Nesting - Reduces space for ease of stacking
and storage.
Patented ByPass™ Technology - Increased
performance over a wide temperature range.
1.800.533.7533
Phoenix R250 - LGR Dehumidifier
OWNER'S MANUAL
Installation, Operation & Service Instructions
– READ AND SAVE THESE INSTRUCTIONS –
USEPHOENIX.COM
The Phoenix R250 has been redesigned from the inside out
to be a rugged, high-performance dehumidifier. Phoenix is
leading the industry by introducing epoxy coated coils. This
new feature will extend the life of the coil, provide protection
in corrosive environments, and maintain the coil's heat
transfer ability over the life of the coil.
We kept the outstanding handle used on the R200 along with
patented ByPass™ Technology, excellent airflow, multiple
ducting options, and a pleated media filter. And, with some
amazing Phoenix Engineering, the R250 removes the most
water of the Phoenix rotomolds at 135 pints per day (AHAM)
while drawing only 8.3 amps of electricity, making it one of
the smallest, lightest XL category LGRs on the market.
Patented
BYPASS
Phoenix now offers
this unit in both
Red and Blue

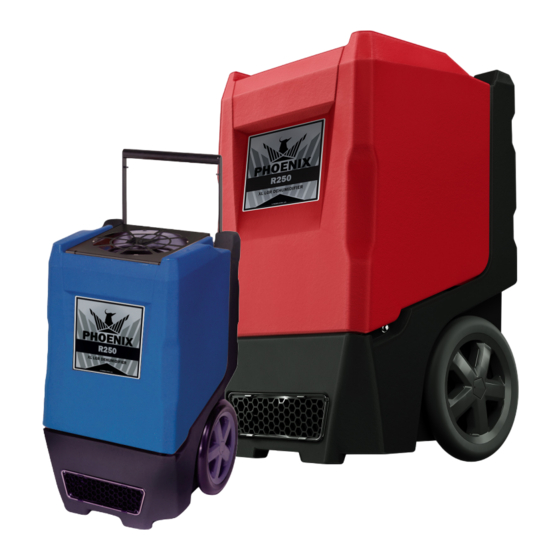

Phoenix R250
Part No. 4034460 (Red)
Patent 7,246,503
Specifications subject to change without notice.
WISCONSIN
1
1
4035230 (Blue)
D570,988
8,069,681
TS-889
02/19 Rev. A
