Owner's Manual — Phoenix 270HTx
The Phoenix 270HTx is one of the most effective and versatile drying devices available. The Phoenix 270HTx features more
water removal (161 pints per day@AHAM) and higher grain depression than other refrigerant dehumidifiers, while drawing
only 8.9 amps of electricity.
The 270HTx features Phoenix's patented bypass design, which is now enhanced to compensate for temperature
automatically. By sensing and adjusting to temperature changes in the drying chamber, the 270HTx maximizes water
removal over an extended operating range without the need for manual adjustments.
At higher temperatures, where typical LGRs lose effectiveness, the Phoenix 270HTx automatically adjusts to continue
removing moisture. This offers several advantages to the restorer, including faster evaporation rates, quicker drying, and
elimination of the need to remove or modify equipment for temperature control.

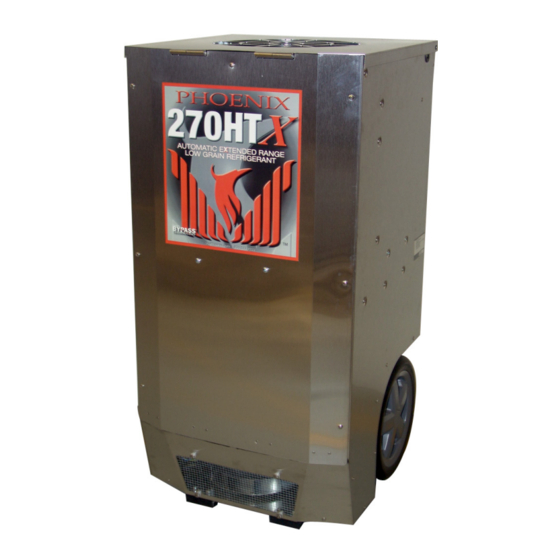

The Phoenix 270HTx LGR,
High Capacity Dehumidifier
•
Automatic Bypass Technology – Patented
technology automatically adjusts for
temperature variation, increasing performance
over a wider operating range.
•
High Capacity - Removes 161 pints per day at
AHAM
•
8.9 amps - Removes over 6.5 pints/kWh.
•
R-410A Refrigerant
More Grain Depression - Drier air from an LGR
•
finishes jobs quicker versus a conventional
refrigerant dehumidifier.
Focused Airflow - Patented focused outlet
•
directs air downward across the wet surface.
•
Motorized Impeller - 380 CFM; Faster drying
and superior static pressure for ducting.
•
Multiple Ducting Options - 12" intake, 10"
exhaust.
Solid State Controls - Easy to read and operate.
•
•
Recessed 12" Wheels - Allows greater
maneuverability on the job site and efficient
storage. Rolls over obstacles with ease.
•
MERV-11 Pleated Media Air Filter
Specifications subject to change without notice.
Toll-Free 1-800-533-7533
4201 Lien Rd.• Madison, WI 53704
Installation, Operation & Service Instructions
Read and Save These Instructions
Phoenix 270HTx
4028600
1
www.UsePhoenix.com • sales@UsePhoenix.com
TS-584b
12/09
