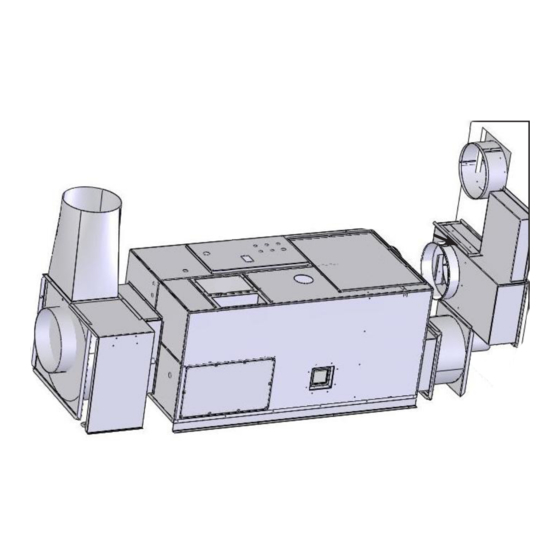

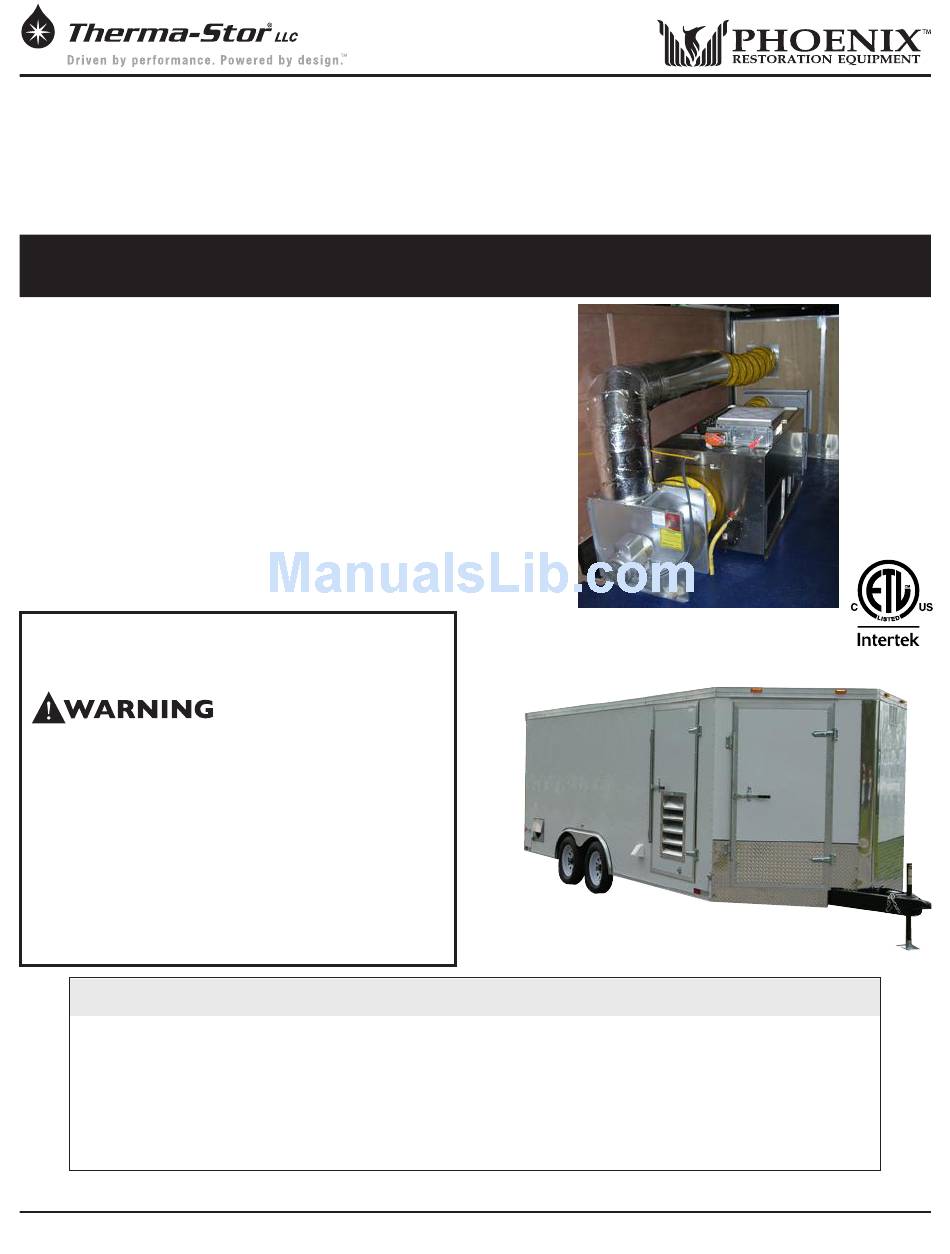

Phoenix 1800 DX Desiccant Dehumidifier
The Phoenix 1800DX is a complete mobile desiccant drying
system. This powerful efficient desiccant has 1800 CFM of
process air while drawing only 16 amps at 115 volts. The
1800DX is constructed of durable, stainless steel and uses
an advanced silica gel rotor. The 1800DX has up to 6 days
run time on only 100 gallons of propane, beating all other
desiccants in its class.
The Phoenix 1800DX system includes a high performing, high
efficiency desiccant dehumidifier, a 16ft. tandem axle V-nose
trailer with electric brakes and a 120-gallon DOT approved
propane cylinder.
The Phoenix 1800DX is the perfect first-responder to any
drying emergency.
FOR YOUR SAFETY:
gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
Improper installation, adjustment, alteration, service
or maintenance can cause injury or property damage.
Refer to this manual. For assistance or additional
information, call a qualified installer, service agency or
the gas supplier.
FOR YOUR SAFETY:
try to light any appliance. DO NOT touch any electrical
switch. IMMEDIATELY call your gas supplier from a
location away from the device. If the gas supplier cannot
be reached, call the fire department.
• Dual Axle, V-Nose Trailer
• 115 volts @ 16 amps
• 1800 CFM process airflow (3060 m
• 1000 pints/day @ AHAM (473
• 420 lb DOT approved Propane Cylinder (190 kg)
Specifications subject to change without notice.
Toll-Free 1-800-533-7533
4201 Lien Rd. • Madison, WI 53704
Owner's Manual
Installation, Operation & Service Instructions
Read and Save These Instructions
DO NOT store or use
If you smell gas: DO NOT
The Phoenix 1800 DX
/hr)
3
/Day)
L
—
Phoenix 1800DX
Desiccant Dehumidifier
PN 4028001
1800 DX includes 16' tandem trailer
• Dries in temperatures to 140ºF (60°C)
• Corrosion Resistant Stainless Steel
Construction
• Reaches dew points as low as -40ºF (-40°C)
www.UsePhoenix.com • sales@UsePhoenix.com
w/electric brakes
TS-581
07/14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Phoenix 1800 DX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Therma-Stor Phoenix 1800 DX

Summary of Contents for Therma-Stor Phoenix 1800 DX

  • Page 1: Introduction

    4201 Lien Rd. • Madison, WI 53704 Owner’s Manual — Phoenix 1800 DX Desiccant Dehumidifier Installation, Operation & Service Instructions Read and Save These Instructions The Phoenix 1800DX is a complete mobile desiccant drying system. This powerful efficient desiccant has 1800 CFM of process air while drawing only 16 amps at 115 volts.

  • Page 2: Warnings

    GENERAL HAZARD WARNING MISES EN GARDE GENERALES Failure to comply with the precautions and Le non-respect des mises en garde et des instructions fournies avec ce radiateur peut entrainer la mort, de graves blessures et des pertes instructions provided with this unit can result materielles ou des dommages a la propriete resultant d’un incendie, in death, serious bodily injury and property loss d’une explosion, de brulures, d’asphyxie, d’empoisonnement au...

  • Page 3: Table Of Contents

    Table of Contents Introduction ..............1 Warnings ..............2 1. Specifications ............4 2. Operation .............4 2.1 How the Phoenix 1800DX Works ......4 3. Installation ............5 3.1 Inspection ............5 3.2 Location ............5 3.3 Set-Up ............5 3.4 Ducting ............5 3.5 Avoiding Secondary damage ......5 3.6 Electrical Requirements ........6 4.

  • Page 4: Specifications

    1 Specifications 2 Operation Part No. 4028001 The function of the dehumidifier is to remove moisture (in the vapor state) from an air stream. This is accomplished Power 115 Volt, 16 amps by exposing the air to an adsorbing media (desiccant) in 20 Amps minimum service required a sealed air stream (process).

  • Page 5: Installation

    Note the following precautions when locating the Phoenix excess bends in the ducting. 1800DX: All ducting materials are available from Therma-Stor LLC Trailer must be located outdoors with reactivation outlet (see accessories list in Section 1). pointed away from open windows or building fresh air inlets.

  • Page 6: Electrical Requirements

    4 Operating Instructions 3.6 Electrical Requirements A dedicated and properly grounded 115VAC outlet with The Phoenix 1800DX dehumidifier comes complete and 20A branch protection is required for correct operation. ready for operation. Be sure no other devices are running, or could start on the Note: Do not place any items over reactivation air filter same circuit as the 1800DX device.

  • Page 7: Cool Down

    Cool Down Procedure 5.5 Alarm (Light and Horn) The alarm indicator lamp illuminates (and horn sounds) to indicate that a fault condition exists. The fault conditions Failure to follow COOL DOWN PROCEDURE may result in could be: damage to unit due to overheating. ALWAYS follow COOL •...

  • Page 8: Blower And Motor

    process air inlet. The other one is located at the reactivation air inlet. Wash aluminum filters with fresh water. Clean the filter from the downstream side, forcing debris toward the filter inlet. Dry the filter completely before installing it in unit. Replacement filters can be ordered from the factory or purchased locally if available.

  • Page 9: Wiring Diagram

    7 Panel Layout/Wiring Diagram *Heater Circuit *See diagram on page 8 Toll-Free 1-800-533-7533 www.UsePhoenix.com • sales@UsePhoenix.com...
  • Page 10 7 Panel Layout/Wiring Diagram *Remove jumper & install Remote Start Contact if desired. Heater Circuit 60 (L1) 58 (N) Combustion Blower 300° 350° React Air Ignition T-Stat T-Stat Press. Sw. Control Igniter (120 VAC) Gas Valve (24 VAC) 24 VAC Transformer Toll-Free 1-800-533-7533 www.UsePhoenix.com •...

  • Page 11: Troubleshooting

    8 Troubleshooting ELECTRICAL SHOCK HAZARD: Electrical 9 Troubleshooting power must be present to perform some tests; these tests should be performed only by a qualified service person. Trouble Probable Fault Probable Cause Corrective Action Unit Stopped Power/Control 1. Main power off Check main power and cable (fan off, no Failure...

  • Page 12: Service Parts List

    9 Service Parts Part No. Description 4028008 Process Blower 4028009 Reactivation Blower 4028010 Magnehelic Gauge 4020175 Humidity Control 4026866 250-300F Thermostat (121°C to 150°C) 4030171 350F Thermostat 4029768 Gas Valve 4028015 Ignition Module 4028016 Hot Surface Igniter 4028018 Burner Element 4029769 Combustion Blower 4028029...

  • Page 13: Warranty

    Dehumidifier and may not be assigned or transferred. First Year Warranty: Therma-Stor Products warrants that, for one (1) year the 1800 DX will operate free from any defects in materials and workmanship, or Therma-Stor Products will, at its option, repair or replace the defective part(s), free of any charge.
