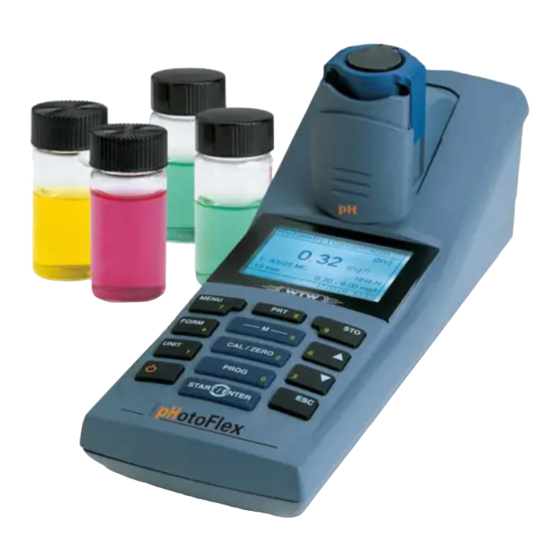

- Page 1 QUICK START GUIDE ba75977e04 11/2018 ® pHotoFlex LED FILTER PHOTOMETER WITH INTEGRATED pH FUNCTION...
- Page 2 ® pHotoFlex © Copyright 2018 Xylem Analytics Germany GmbH Printed in Germany. ba75977e04 11/2018...
-
Page 3: Table Of Contents
® pHotoFlex Contents Contents Safety ..........4 Display and socket field . -
Page 4: Safety
® Safety pHotoFlex Safety Target group The meter was developed for work in the field and in the laboratory. We assume that, as a result of their professional training and experience, the operators will know the necessary safety precautions to take when handling the chemicals of photometric test sets. The personnel responsible for the commissioning, operation and maintenance must have the necessary qualifications for this work. -
Page 5: Power Supply
® pHotoFlex Power supply Socket field Identifying the pH electrode connectors pH temperature sensor Power pack (9 V DC, see page 22) Contacts for operation on the LabStation RS232 serial interface Power supply You can operate the meter either with batteries, rechargeable battery or a power pack. - Page 6 ® General operating principles pHotoFlex Keypad Select the measuring mode <M> (long keystroke): – Photometry – pH & ORP Select the measured parameter within a measuring mode <M> (short keystroke): – pH & ORP: pH, ORP – Photometry: Concentration, Absorbance, % Transmission Start calibration (measuring mode pH &...
- Page 7 ® pHotoFlex General operating principles Highlight menu items or selection / set values <>, <> Switch to the next higher menu level / cancel input <ESC> Keys with an additional number printed on are assigned doubly. This enables to directly enter numbers in special menus. Thus, you can, for example, conveniently enter the date and time via the number keys.
- Page 8 ® General operating principles pHotoFlex System Language English Beep Illumination Contrast 48 % Temperature unit °C Switchoff time 30 min Functions Functions are designated by the name of the function. They are immediately carried out by confirming with <START/ENTER>. Example: display the Calibration record function (in the pH &...
-
Page 9: Initial Commissioning
® pHotoFlex Operation Initial commissioning Switching on the meter Press the <ON/OFF> key. For a few seconds, the Start menu appears with a selection of the measuring modes. The measuring mode last selected is highlighted. After a few seconds, the meter automatically switches to the measuring mode and measured parameter used last. - Page 10 ® Operation pHotoFlex Inserting a 28 mm cell Insert the cell so that it is positioned on the bottom of the cell shaft. The cell is ready to be measured. Inserting a 16 mm cell Put the fold-out cell shaft (2) in an upright position until it locks into place.
- Page 11 ® pHotoFlex Operation Insert the 16 mm cell (marking points forward) so that it is positioned on the bottom of the cell shaft. Close the external light cover (4). The cell is ready to be measured. ba75977d04 11/2018...
-
Page 12: Photometry
® Operation pHotoFlex Photometry Measuring the Press the <M> key (long pressure) repeatedly until the concentration Photometry measuring mode is selected. Press the <M> key (short pressure) repeatedly until the measured parameter, Concentration is selected. First concentration measurement Second and all further ®... - Page 13 ® pHotoFlex Operation Start the measurement with <START/ENTER>. Measurement is started. The result is displayed. Photometry \ Concentration A blank value measured by [BV] the user is used 0.74 mg/l 1: A5/25 MC NH4-N 16 mm 0.20 - 6.51 mg/l 01.02.04 15:12 Blank value A blank value is required for every concentration measurement.
-
Page 14: Ph Value / Orp Voltage
® Operation pHotoFlex Using <> <> and <START/ENTER>, select and start the Zero adjust. or Measure blank value function. The menu-guided blank value measurement or zero adjustment starts. Follow the instructions on the display. pH value / ORP voltage ® Connect a suitable pH or ORP electrode to the pHotoFlex Press the <M>... - Page 15 ® pHotoFlex Operation Measuring the ORP Submerse the ORP electrode in the sample. pH & ORP \ ORP 25.0 °C [AR] 01.02.04 15:12 Press the <M> key (short pressure) repeatedly until the measured parameter, pH is selected. Calibration Press the <M> key (long pressure) repeatedly until the pH measuring mode is selected.
-
Page 16: Maintenance, Cleaning
® Operation pHotoFlex Maintenance, cleaning Maintenance The meter is almost maintenance-free. The only maintenance task is replacing the batteries or rechargeable battery. NOTE Make sure the poles of the batteries are the right way round. The ± signs on the batteries must correspond to the ± signs in the battery compartment. - Page 17 ® pHotoFlex Operation (polyurethane, ABS and PMMA). Thus, avoid contact with acetone and similar detergents that contain solvents. Remove any splashes immediately. Cleaning the cell shaft If liquid is in the cell shaft (e.g. due to a spilled cell), clean the cell shaft as follows: CAUTION Cells can contain poisonous or corrosive substances.
-
Page 18: What To Do If
® Operation pHotoFlex What to do if... General errors Display, LoBat Cause Remedy – The batteries or rechargeable – Insert new batteries battery are largely depleted – Charge the rechargeable battery Instrument does not Cause Remedy react – Software error –... -
Page 19: Ph Value / Orp Voltage
® pHotoFlex Operation Obviously incorrect Cause Remedy measured values – Measurement disturbed by – Close the external light cover. external light – Cell not correctly inserted – Insert the cell so that it is positioned on the bottom of the cell shaft. –... - Page 20 ® Operation pHotoFlex Cause Remedy – Not enough electrolyte – Top up electrolyte – Electrode obsolete – Replace electrode – Electrode broken – Replace electrode – Socket damp – Dry socket Calibration procedure: – Incorrect solution temperature – Set up correct temperature (without temperature sensor) –...
-
Page 21: Technical Data
® pHotoFlex Technical data Cause Remedy – Cable broken – Replace cable or electrode – pH electrode unsuitable – Use suitable electrode – Temperature difference – Adjust temperature of buffer between buffer and test or sample solutions sample too high –... - Page 22 ® Technical data pHotoFlex Power Batteries 4 x 1.5 V, type AA supply Operating time with approx. 5000 measurements battery operation Rechargeable battery 5 x 1.2 V nickel metal hydride (NiMH), (optional) type AAA Power pack FRIWO FW7555M/09, 15.1432.500-00 Charging device Friwo Part.
-
Page 23: Photometry
® pHotoFlex Technical data FCC Class A Equipment Statement Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 24: Ph Value / Orp Voltage
® Technical data pHotoFlex pH value / ORP voltage Measuring ranges, Variable Measuring range Resolution resolution - 2.00 ... + 16.00 0.01 U [mV] - 1000 ... + 1000 T [°C] - 5.0 ... + 100.0 T [°F] - 23.0 ... + 212.0 Manual Variable Range... - Page 25 ® pHotoFlex ba75977e04 11/2018...
- Page 26 For more information on how Xylem can help you, go to xyleminc.com. ® Service address: Xylem Analytics Germany Sales GmbH &...
