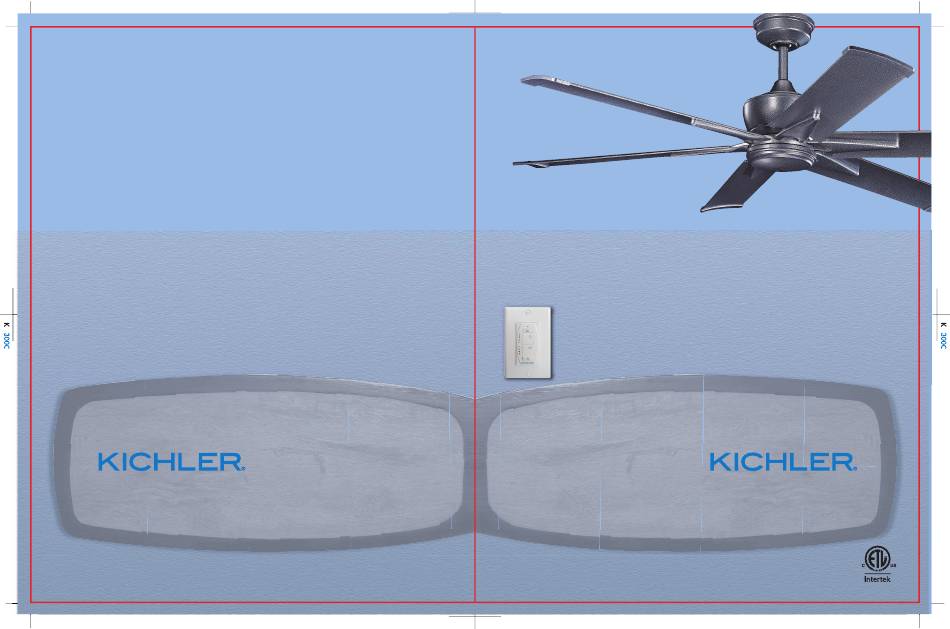

Kichler
Lighting
®
7711 East Pleasant Valley Road
P.O. Box 318010
Cleveland, Ohio 44131-8010
Customer Service
866.558.5706
8:30 AM to 5:00 PM EST,
Monday - Friday
Includes wall mount
control system
Instruction Manual
Szeplo
TM
370060
A Kichler
Decor
ceiling fan motor assembly
®
™
3066708

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Szeplo 370060 and is the answer not in the manual?

Questions and answers

Related Manuals for Kichler Lighting Szeplo 370060

Summary of Contents for Kichler Lighting Szeplo 370060

  • Page 1 Szeplo 370060 A Kichler Decor ceiling fan motor assembly ® ™ Includes wall mount control system Kichler Lighting ® 7711 East Pleasant Valley Road P.O. Box 318010 Instruction Manual Cleveland, Ohio 44131-8010 Customer Service 866.558.5706 8:30 AM to 5:00 PM EST, Monday - Friday 3066708...

  • Page 2: Safety Rules

    1. SAFETY RULES 9. To avoid personal injury or damage to the 1. To reduce the risk of electric shock, insure fan and other items, be cautious when electricity has been turned off at the circuit working around or cleaning the fan. breaker or fuse box before beginning.

  • Page 3: Tools And Materials Required

    Szeplo 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents . You should have the following items: Mounting bracket Ball / downrod assembly C.

  • Page 4: Mounting Options

    4. MOUNTING OPTIONS If there isn't an existing ETL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building structure. Use appropriate fasteners and Outlet box building materials.

  • Page 5: Hanging The Fan

    Szeplo 5. HANGING THE FAN ETL Listed Outlet Box REMEMBER to turn off the power before you begin installation. This is necessary for your Ceiling Mounting Bracket safety and also the proper programming of the Flat Washer control system. Screw Screw To properly install your ceiling fan, follow the steps below.

  • Page 6: Installation Of Safety Support

    Step 5. Now lift the motor body into position and place the hanger ball into the hanger bracket. Rotate until the "Check Tab" has dropped into Hanger Ball the "Registration Slot " and seats firmly. ( Fig. 9) Check Tab Registration Slot The entire motor body should not rotate is this is done correctly.

  • Page 7: How To Wire Your Ceiling Fan

    Szeplo 7. HOW TO WIRE YOUR CEILING FAN If you feel that you do not have enough electrical wiring knowledge or experience, have your fan installed by a licensed electricial. Black Wire Warning: To avoid possible electrical shock, be White Wire sure electricity is turned off at the main fuse box before wiring.

  • Page 8: Attaching The Fan Blades

    Step 3. Securely attach and tighten the canopy trim ring over the shoulder screws in the mounting bracket utilizing the keyslot twist-lock feature. Canopy Trim Ring (Fig. 16) Fig. 16 9. ATTACHING THE FAN BLADES Blade Screw NOTE: Before continuing, make sure the power Washer is disconnected by turning off the circuit breaker of removing the fuse at the circuit box.
  • Page 9 Szeplo INSTALLING THE SWITCH HOUSING Step 1. Remove one of the three screws and loosen the other two (do not remove). Place the two slot holes on the switch housing over the 2 screws previously loosened from the mounting Mounting Plate plate.

  • Page 10: Wall Control Installation

    12. WALL CONTROL INSTALLATION Caution: To reduce the risk of electrical shock, disconnect the electrical supply circuit before BLACK installing the fan, light kit or receiver. GROUND NEUTRAL NOTE: Make all wiring conenctions using wire connectors (supplied). Make sure that all connections are tight, including ground, and that no bare wire is visible at the wire connectors, except for the ground wire.

  • Page 11: Pairing Procedures

    Szeplo 13. PAIRING PROCEDURES IMPORTANT: Ceiling fan blades MUST be installed before paring procedure can begin. Step 1. Turn the wall control to "OFF" postion. Restore electricity to the ceiling fan branch circuit at the circuit breaker or fuse box. Within 60 seconds of press the"...

  • Page 12: Troubleshooting

    14. TROUBLESHOOTING Problem Solution 1. Check circuit fuses or breakers. Fan will not start. 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. Fan sounds noisy. 1. Make sure all motor housing screws are snug. 2.
