EVAL-ADD8504/ADD8505/ADD8506

EVALUATION BOARD LAYERS

Table 3. Evaluation Board Layer Descriptions
Layer Description
Blue (Top) Top-of-board metal traces and ground plane. See Figure 5.
Red (Bottom)
Bottom-of-board metal traces and ground plane. (Note: Top-view shown in Figure 6. Silk screen text is shown for
orientation purposes; text does not appear on bottom of board.)

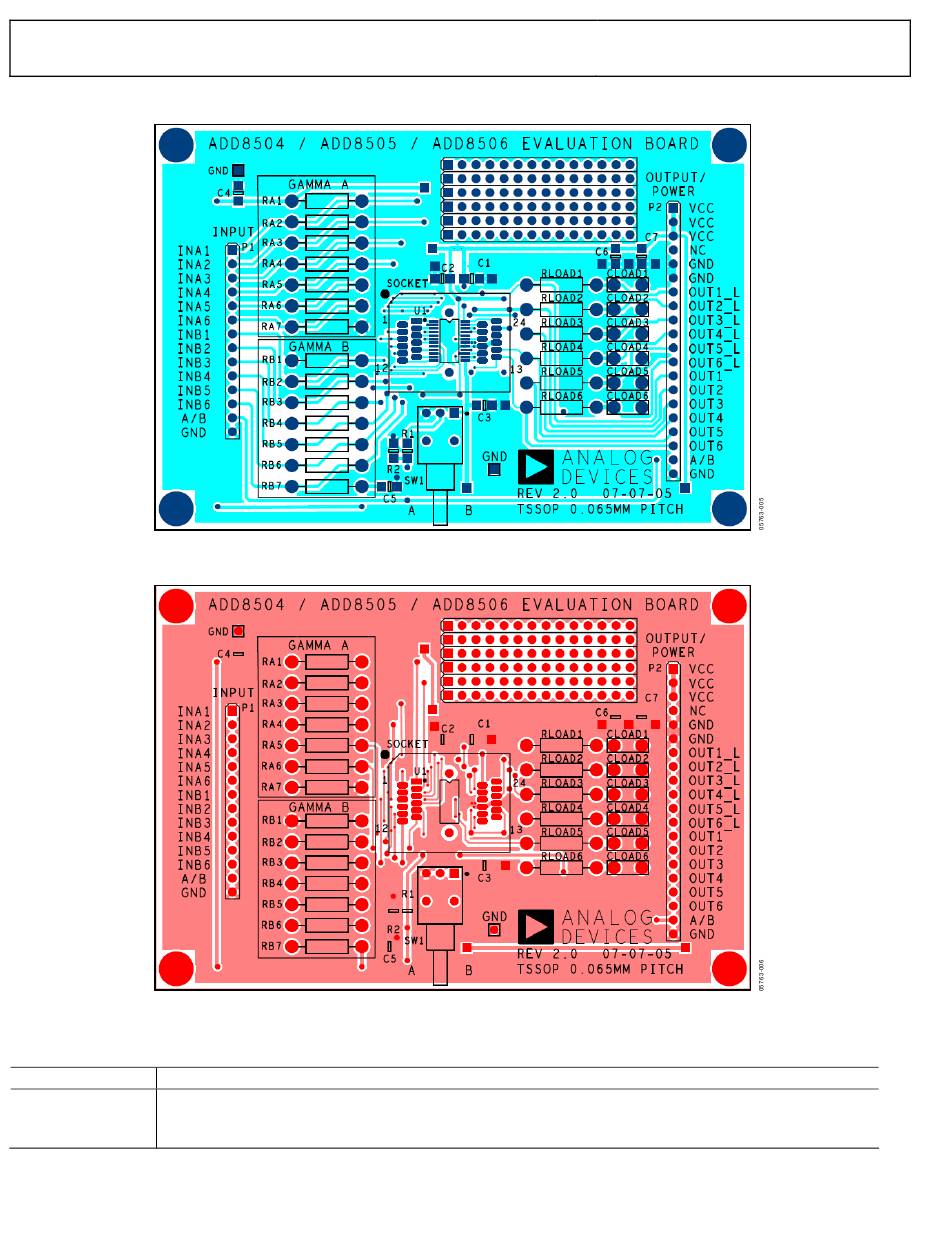

Figure 5. Evaluation Board Layout—Top Layer
Figure 6. Evaluation Board Layout—Bottom Layer
