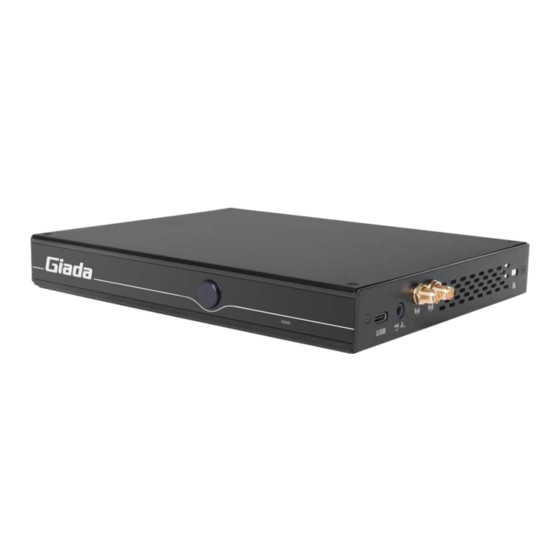

Summary of Contents for Giada D613

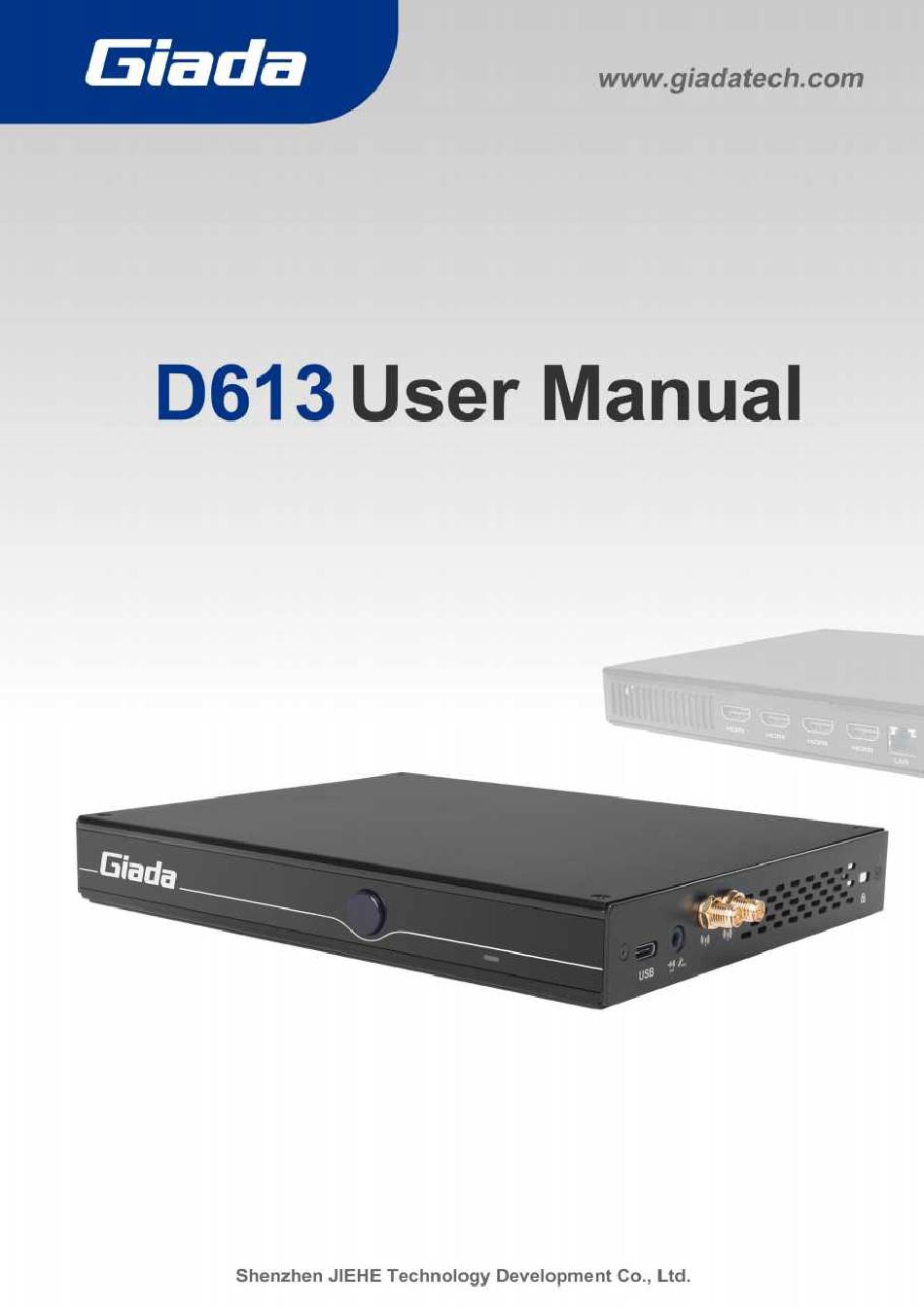

  • Page 1 - 1 -...
  • Page 2 The copyright of this manual belongs to Shenzhen JIEHE Technology Development Co., Ltd. (Giada, JIEHE’s global brand) and all rights are reserved. The company reserves the right to change this manual at any time without notification. Specifications here are for reference only, please take the real product as standard.

  • Page 3: Table Of Contents

    Table of Contents 1. Product Introduction ..................5 2. Interface Description and Hardware Specifications ........5 2.1 Interface Description ..................5 2.2 Hardware Specifications ................6 3. Accessories Installation Steps ................8 3.1 Memory Installation ..................9 3.2 SIM Card Installation ..................9 3.3 3G/4G/5G Installation ..................
  • Page 4 4.2.6 IT8613 Super IO Configuration ............25 4.2.7 HW Monitor & Smart fan ..............27 4.2.8 System Devices Configuration ............29 4.3 Security Setup ..................... 30 4.4 Boot Menu....................32 4.5 Save & Exit ....................33 4.6 MEBx ......................34 5.

  • Page 5: Product Introduction

    1. Product Introduction Based on Intel Raptor Lake platform, Giada D613 adopts DDR4 dual-channel memory as well as ® M.2 interface for NVMe SSD storage expansion. With four HDMI display outputs, it supports 4K resolution. WIFI 6, 5G mobile network and TPM2.0 are supported. The player is suitable to be applied in high-end digital signage applications.

  • Page 6: Hardware Specifications

    Rear I/O Port Right I/O port 2.2 Hardware Specifications D613 D613-1315U40N0G-GIA D613-1335U40N0G-GIA Intel ® Core i3-1315U Intel ® Core i5-1335U E-Core Frequency 3.30 GHz 3.40 GHz Processor P-Core Frequency 4.50 GHz 4.60 GHz BIOS AMI Source Code Chipset Type DDR4-3200 MHz...
  • Page 7 Controller 1 x Intel i219LM Gigabit Ethernet ® Network Interface 1 x RJ45 1 x USB Type-C3.2 Gen2, 1 x USB3.2 Gen2, 2 x USB2.0 Serial Port 1 x RS232 Audio 1 x 2-in-1 Headset (MIC-IN & AUDIO-OUT) I/O Interface M.2 (2230) 1 x E-Key (2230) for Wi-Fi/BT Support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi) 1 x SIM Slot...

  • Page 8: Accessories Installation Steps

    3. Accessories Installation Steps For safety reasons, please ensure that the power cord is disconnected before opening the case. How to open the top cover and bottom cover Unscrew the four screws and remove the top cover. (SO-DIMM, M.2 slot for 3G/4G/5G and SIM card slot are on top side) Unscrew the four screws, push the bottom cover and remove it.

  • Page 9: Memory Installation

    3.1 Memory Installation This product only supports DDR4 SO-DIMM memory modules. 1. Locate the SO-DIMM slot on the board. 2. Gently insert the module into the slot in a 45-degree angle. 3. Carefully push down the memory module until it snaps into the locking mechanism. 3.2 SIM Card Installation This product supports standard SIM card with the size of 25mm ×...

  • Page 10: 4G/5G Installation

    3.3 3G/4G/5G Installation  3G/4G/5G Installation Default SMA connector and cable is for WIFI. Please change to 3G/4G/5G SMA connector and cable. Default standoff screw located in MH1 is suitable for 3G/4G module in M.2 3042 form factor. If need to install 5G module in M.2 3052 form factor, please unscrew the standoff screw and fix it in MH2 location.

  • Page 11: Ssd(M.2) Installation

    3.4 SSD (M.2) Installation 1. Plug the SSD (M.2) into the appropriate slot. 2. Secure the module to the carrier by tightening up the screw. - 11 -...

  • Page 12: Wifi(M.2) Installation

    3.5 WIFI (M.2) Installation 1. Plug the WIFI module into the appropriate slot. 2. Secure the module to the carrier by tightening up the screw. 3. Connect the two cables to WIFI module and install the antennas. - 12 -...

  • Page 13: Bios Setup

    The descriptions relating to BIOS setup in this Manual is for reference only when the BIOS version of the product might be upgraded. Giada provides no guarantee that all the contents in this Manual are consistent with the information you acquired.
  • Page 14 B. Function Keys definitions Hot Key Description ↑ (Up key) Move to the previous item ↓ (Down key) Move to the next item ← (Left key) Move to the left item → (Right key) Move to the right item Exit the current interface Page Up Change the setup state, or add the values Page Down...
  • Page 15 Fig 1 1) Main (standard CMOS setup) This item is used for setting the date and time. 2) Advanced (advanced BIOS setup) This item is used for setting the advanced functions provided by BIOS, such as specifications of PCIe facilities, CPU, HDD, etc.

  • Page 16: Main (Standard Cmos) Setup

    4.1 Main (Standard CMOS setting) 1) System time (hh:mm:ss) Use this item to set the time for the computer, with the format as “HH / MM / SS”. 2) System date (mm:dd:yy) Use this item to set the date for the computer, with the format as “week, MM / DD / YY”. - 16 -...

  • Page 17: Advanced Bios Setup

    4.2 Advanced (Advanced BIOS setup) 4.2.1 ACPI Setting - 17 -...

  • Page 18: Cpu Configuration

    ACPI Options Description You can use the ACPI Sleep state option to control system hibernation ACPI Sleep state Suspend Disabled: Disable system Suspend. S3 (Suspend to RAM): Enable S3(Suspend to RAM)  State After G3 means after restore power supply. ...
  • Page 19 The menu Description CPU Configuration Max Non-Turbo Performance: the best performance.  Boot performance mode Max Battery.  Turbo performance.  Intel Virtualization Technology is enabled by default. User can Intel (VMX) Virtualization Technology enable and disable the Intel Virtualization Technology function. Intel （...

  • Page 20: Wake Computing

    The menu Description Intel speed shift function is enabled by default. Intel ® Speed Shift Technology uses hardware-controlled P-states to deliver dramatically quicker responsiveness with single-threaded, transient Intel （ R ） Speed Shift Technology (short duration) workloads, such as web browsing, by allowing the processor to more quickly select its best operating frequency and voltage for optimal performance and power efficiency.
  • Page 21 WAKE Configuration Options Description WAKE Configuration Wake On LAN Function. Wake Up On INTEL LAN Disabled: The WOL is disabled by default.  Enabled.  Wake up By USB KB/MS Enabled/Disabled Wake Up by USB KB/Mouse from S3 Status.  Disabled: By default, the functions is disabled.

  • Page 22: Trusted Computing

    4.2.4 Trusted Computing - 22 -...
  • Page 23 TPM20 Device Found Description Firmware Version TPM FW version is 600.18  Vendor The vendor is INTC  Disabled  Security Device Support Enabled. This item is enabled by default.  Disabled. This item is Enabled by default  SHA256 PCR Bank Enabled.

  • Page 24: Oem Me Configuration

    4.2.5 OEM ME Configuration - 24 -...

  • Page 25: It8613 Super Io Configuration

    OEM ME Configuration Options Description ME Contol Then ME Function. ME Contol Disabled:  Enabled. The ME Control is enabled by default.  4.2.6 IT8613 Super IO Configuration - 25 -...
  • Page 26 Serial Port Description Serial Port The user can set it as enabled or disabled Device Settings Set parameters of serial port Select an optimal settings for super IO device. Auto IO=3F8h; IRQ=4; Change Settings IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2F8h; IRQ=3,4,5,6,7,9,10,11,12; IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2E8h;...

  • Page 27: Hw Monitor & Smart Fan

    4.2.7 HW Monitor & Smart fan - 27 -...
  • Page 28 Pc Health Menu Description Pc Health Status It includes "Automatic mode" and "software mode". Smart Fan 1 Mode Automatic mode. Automatic mode is enabled by default.  Software mode.  FAN will stop work If temperature is lower than the Fan off ...

  • Page 29: System Devices Configuration

    4.2.8 System Devices Configuration - 29 -...

  • Page 30: Security Setup

    Menu Description The SATA controller is enabled by default. SATA Controller(s) Enabled  Disabled.  SATA Mode Selection Determines how SATA controller(s) operate.  Control Detection of the HD-Audio device.  HD Audio HAD will be unconditionally disabled when disabled. ...
  • Page 31 If this function is selected, the following information will appear: Enter New Password hhhhhh Then enter a password which is no more than eight characters and press <Enter>. BIOS will require to enter the password again. Once you enter it again, BIOS will save the set password. Once the password item is enabled, you will be required to enter the password every time before the system entering to the setup program of BIOS.

  • Page 32: Boot Menu

    4.4. Boot Menu Boot Item Description Boot Configuration This item is used to set the waiting time of entering the operation system. During the BIOS post, if user doesn't press the keyboard, it won't respond Setup Prompt Timeout unless you reboot the BIOS. The Setup Prompt Timeout is 3s by default. You can set the time as you want.

  • Page 33: Save&Exit

    Boot Item Description Boot Option #3 The third boot device. Boot Option #4 The fourth boot device. Boot Option #5 The fifth boot device. Boot Option #6 The sixth boot device. Boot Option #7 The seventh boot device. Boot Option #8 The eighth boot device.

  • Page 34: Mebx

    Save Exit Item Description Save Options Save Changes and Reset Save all changes and exit Discard Changes and Reset Give up the settings and exit. Restore Defaults Recover it to default. Boot Override Whole Boot devices 4.6 MEBx The MEBx option is used for VPRO.The MEBx option can be enable and disable if the CPU supports VPRO. - 34 -...

  • Page 35: Jahc Introduction

    5. JAHC Introduction JEHE Active Hardware Control (JAHC) management system includes both hardware Micro Control Unit (MCU) and software (JAHC Technology Manager). It can support following functions: 1. Automatically boot up when power on. It is controlled by the Micro Control Unit (MCU) chip. 2.
  • Page 36 c. Press ‘F10’ to save change & exit after select “JAHC enabled” option. - 36 -...

  • Page 37: Jahc Software

    Supported operation system: Windows 10 64bit, Linux 64bit. How to install JAHC software: Please download the JAHC.EXE from Giada DVD, then follow up below steps: Double-click the JAHC.EXE file, the setup wizard will pop up, select destination location and click [Next] button to continue the installation.
  • Page 38 b. Click [Next] button to continue the installation. Select [Create a desktop shortcut] and click [Next] button. - 38 -...
  • Page 39 d. Click [Install] button to continue the installation. Click [Finish] button to finish the installation. You can select [Launch JAHC] to run the software automatically after finishing the installation. - 39 -...

  • Page 40: Startup And Shutdown Time Setup

    Notice: The JAHC will be added into boot item when it is installed. It will start up when system boot up. 5.2.3 Startup & shutdown time setup After install the JAHC software, double click the JAHC icon on taskbar and the setup menu will pop One week as a circle, maximum 3 schedules per day.
  • Page 41 After finishing the setup, the menu window will notice the resume time and shutdown time. Caution: If the interval from shutdown time to next resume time is less than 3 minutes, the system will not shut down Click [Cancel] button to restore the time settings and cancel the shutdown status. Click [X] button to hide the menu.

  • Page 42: Watchdog Api And Instruction

    You can click [Delay] button and set up the time to delay the shutdown or click [Cancel] button to cancel the shutdown. 5.3 Watchdog API and instruction Please contact Giada FAE (email:support@giadatech.com) for watchdog API software and instruction. - 42 -...
  • Page 43 - 43 -...
