Summary of Contents for Giada DM6 Series

  • Page 2 The copyright of this manual belongs to Shenzhen JEHE Technology Development Co., Ltd. (Giada, JEHE’s global brand) and all rights are reserved. The company reserves the right to change this manual at any time without notification. Specifications here are for reference only, please take the real product as standard.

  • Page 3: Table Of Contents

    Table of Contents 1. Product Introduction ..................3 2. Interface Description and Hardware Specifications ........3 2.1 Interface Description ................. 3 2.2 Hardware Specifications ................4 3. Accessories Installation Steps ................ 6 3.1 Memory Installation ..................7 3.2 WiFi/3G/4G Installation ................8 3.3 MSATA Installation ..................
  • Page 4 4.2.6 CPU Configuration ................19 4.2.7 Network State Configuration ............. 20 4.2.8 CSM Configuration ................20 4.3 Security Setup ..................... 22 4.4 Boot Menu ....................23 4.5 Save & Exit ....................24 5. JAHC Introduction ..................25 5.1 Auto Power On ................... 25 5.2 JAHC Software ...................

  • Page 5: Product Introduction

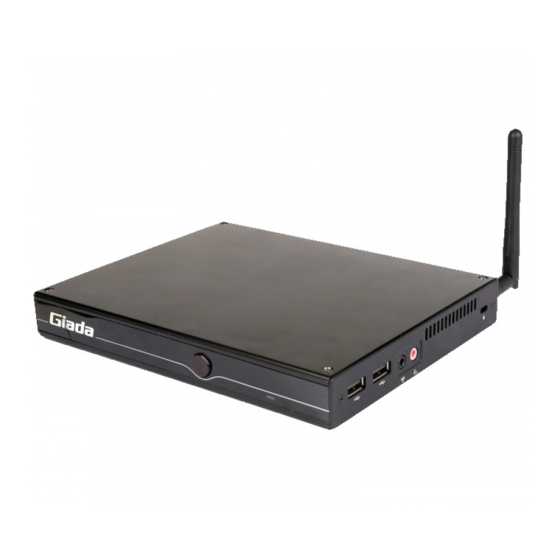

    1. Product Introduction Based on AMD Ryzen platform, Giada DM6 adopts DDR4 dual-channel memory as well as SATA and MSATA storage interface design. With four HDMI display outputs, it supports 4K resolution. The player is suitable to be applied in high-end digital signage applications.

  • Page 6: Hardware Specifications

    Left I/O Port Right I/O port 2.2 Hardware Specifications DM6-V1202B40H0G-GIA DM6-V1605B40H0G-GIA AMD Ryzen V1202B AMD Ryzen V1605B Processor Frequency 2.0GHz, 2Cores / 4Threads 2.0GHz, 4Cores / 8Threads BIOS AMI Source Code Chipset Type DDR4 Memory Socket 2 x SO-DIMM Max Capacity 32 GB - 4 -...
  • Page 7 Radeon GPU 1.0GHz Radeon GPU 1.1GHz Graphics Graphic Engine Direct3D 2015, OpenGL 4.5, OpenCL 2.1 HDMI2.0 4 x HDMI (Max.3840 x 2160 @60Hz) Controller Realtek RTL8111H Gigabit Ethernet Network Interface 1 x RJ45 2 x USB 3.1, 2 x USB 2.0 Serial Port 1 x RS232 Audio...

  • Page 8: Accessories Installation Steps

    3. Accessories Installation Steps For safety reasons, please ensure that the power cord is disconnected before opening the case. How to open the top cover and bottom cover Unscrew the four screws and remove the top cover. (SO-DIMM #1 and 2.5’’ SATA slot are on top side) Unscrew the four screws, push the bottom cover and remove it.

  • Page 9: Memory Installation

    3.1 Memory Installation This product only supports DDR4 SO-DIMM memory modules. 1. Locate the SO-DIMM slot on the board. 2. Gently insert the module into the slot in a 45-degree angle. 3. Carefully push down the memory module until it snaps into the locking mechanism. - 7 -...

  • Page 10: Wifi/3G/4G Installation

    3.2 WiFi/3G/4G Installation  WIFI Installation 1. Tighten the WIFI module and WIFI module bracket with screws. 2. Plug the WIFI module into the mini PCIE slot. 3. Secure the module to the carrier by tightening up the screw. Install the antenna. 4.

  • Page 11: Sata Installation

    3.4 2.5’’ SATA Installation 1. Plug 2.5’’ SATA into the slot. 2. Tighten up the two screws from another (bottom) side. - 9 -...

  • Page 12: Sim Card Installation

    The descriptions relating to BIOS setup in this Manual is for reference only since the BIOS version of the product might be upgraded. Giada provides no guarantee that all the contents in this Manual are consistent with the information you acquired.
  • Page 13 synchronous hardware. Once all detections are completed, BIOS will hand over the controlling to the operation system (OS). As BIOS serves as the only channel that connects the hardware and software, whether your computer can run stably and work in optimized state will hinge on how to properly set the parameters in BIOS. Therefore, the correct setup of BIOS plays a key role in stably running the system and optimizing its performance.
  • Page 14 C. Auxiliary information Main interface When the system enters the main interface of Setup, the major selected contents will be displayed at the lower part of the interface with the change of the options. When you set the value for each column, you can view the preset value of the column and the values that can be set if you press F2, for example, the BIOS default values or CMOS Setup values.

  • Page 15: Main (Standard Cmos Setup)

    4) Boot (startup configuration characteristics) 5) Save & Exit (option of exit) This item includes load optimal defaults / load failsafe defaults value / discard changes / discard changes and exit. 4.1 Main (Standard CMOS Setup) 1) System time (hh:mm:ss) Use this item to set the time for the computer, with the format as “HH / MM / SS”.

  • Page 16: Advanced (Advanced Bios Setup)

    4.2 Advanced (Advanced BIOS Setup) 4.2.1 AMD CBS Settings - 14 -...

  • Page 17: Amd Pbs Settings

    4.2.2 AMD PBS Settings 4.2.3 Trusted Computing - 15 -...
  • Page 18 Options Description Trusted Computing TPM20 Device Found Firmware Version: It shows the information of TPM device. Vendor: Disable or Enable the SHA-1 PCR Bank. The option is enabled SHA-1 PCR Bank by default. Disable or Enable the SHA256 PCR Bank. The option is SHA256 PCR Bank enabled by default.

  • Page 19: Acpi Setting

    4.2.4 ACPI Setting ACPI Options Description Enable ACPI Auto Enable or Disable BIOS ACPI AUTO Configuration Configuration Enable Hibernation Enable or Disabled Hibernation You can use the ACPI Sleep state option to control system hibernation ACPI Sleep state  Suspend Disabled: Disable system Suspend. ...

  • Page 20: Power Configuration

    4.2.5 Power Configuration Power Configuration Functions Description Power Configuration Wake On LAN Function. Resume On Lan  Disabled: The WOL is disabled by default.  Enabled. Enable or disable System wake on alarm event. Select FixedTime, system will wake up at the hr::min::sec Wake system by RTC specified time.

  • Page 21: Cpu Configuration

    4.2.6 CPU Configuration The menu Description CPU Configuration Enable/Disable the generation of APCI _PPC,_PSS PSS Support and _PCT Objects PPC Adjustment The PPC Adjustment is PState by default. NX Mode Enable/disable No-execute page protection Function SVM Mode Enabled/disable CPU virtualization Node 0 information View Memory Information related to node 0.

  • Page 22: Network State Configuration

    4.2.7 Network State Configuration You can enable or disable IPV4 PXE and IPV6 PXE Boot function. 4.2.8 CSM Configuration - 20 -...
  • Page 23 CSM Options Description Compatibility Support Module Configuration Enabled: The CSM support function is enable by  default. CSM Support  Disabled. CSM16 Module Version The Current CMS Version. Upon Request. (This option is set by default)  GateA20 Active  Always.

  • Page 24: Security Setup

     Do not launch: Do not Boot. Other PCI devices UEFI: It will support UEFI mode PCI ROM.   Legacy: It will support Legacy mode PCI ROM. 4.3 Security Setup (set the administrator/user password) If this function is selected, the following information will appear: Enter New Password hhhhhh Then enter a password which is no more than eight characters and press <Enter>.

  • Page 25: Boot Menu

    in IDE disk sector. If this item is set as Enable and some program writes information in the sector, BIOS will display alarm information on the screen and buzz. 4.4. Boot Menu Boot Item Description Boot Configuration This item is use to set the wait time of entering the operation system.

  • Page 26: Save&Exit

    Boot Item Description Boot Option #2 The second boot device. Boot Option #3 The third boot device. New Boot Option Policy Control the placement of newly detected UEFI boot options You can set and manage legacy USB device after enabling this USB Drive BBS Priorities option.

  • Page 27: Jahc Introduction

    5. JAHC Introduction JEHE Active Hardware Control (JAHC) management system includes both hardware Micro Control Unit (MCU) and software (JAHC Technology Manager). It can support following functions: 1. Automatically boot up when power on. It is controlled by the Micro Control Unit (MCU) chip. 2.
  • Page 28 b. Select Advanced- > Power Configuration- > JAHC Enable- > Enabled. c. Press ‘F10’ to save change & exit after select “JAHC Enabled” option. - 26 -...

  • Page 29: Jahc Software

    Supported operation system: Windows 10 64bit, Linux 64bit. How to install JAHC software: Please download the JAHC.EXE from Giada website: www.giadatech.com, then follow up below steps: Double-click the JAHC.EXE file, the setup wizard will pop up, select destination location and click [Next] button to continue the installation.
  • Page 30 b. Click [Next] button to continue the installation. Select [Create a desktop shortcut] and click [Next] button. - 28 -...
  • Page 31 d. Click [Install] button to continue the installation. - 29 -...

  • Page 32: Startup And Shutdown Time Setup

    Click [Finish] button to finish the installation. You can select [Launch JAHC] to run the software automatically after finishing the installation. Notice: The JAHC will be added into boot item when it is installed. It will start up when system boot up. 5.2.3 Startup &...
  • Page 33 One week as a circle, maximum 3 schedules per day. Select each schedule to set up the resume time and shutdown time. Click [Confirm] button to launch the schedule. After finishing the setup, the menu window will notice the resume time and shutdown time. Caution: If the interval from shutdown time to next resume time is less than 3 minutes, the system will not shut down Click [Cancel] button to restore the time settings and cancel the shutdown status.

  • Page 34: Watchdog Api And Instruction

    You can click [Delay] button and set up the time to delay the shutdown or click [Cancel] button to cancel the shutdown. 5.3 Watchdog API and instruction Please contact Giada FAE (email:support@giadatech.com) for watchdog API software and instruction. - 32 -...
  • Page 35 - 33 -...
