Summary of Contents for Giada DF612

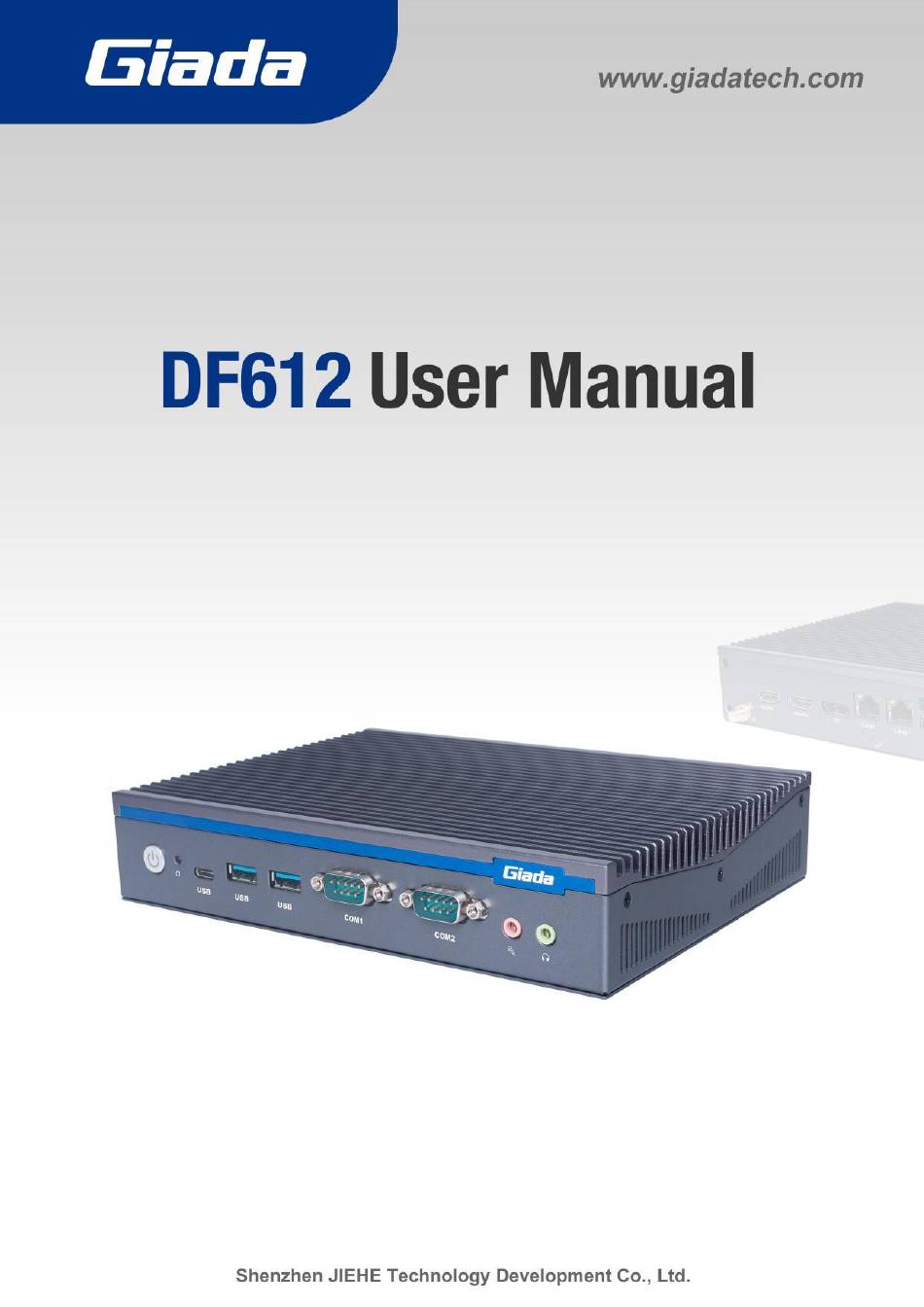

  • Page 1 - 1 -...
  • Page 2 The copyright of this manual belongs to Shenzhen JIEHE Technology Development Co., Ltd. (Giada, JIEHE’s global brand) and all rights are reserved. The company reserves the right to change this manual at any time without notification. Specifications here are for reference only, please take the real product as standard.

  • Page 3: Table Of Contents

    Table of Contents 1. Product Introduction ..................3 2. Interface Description and Hardware Specifications ........3 2.1 Interface Description .................. 3 2.2 Hardware Specifications ................4 3. Accessories Installation Steps ................. 5 3.1 Memory Installation ..................5 3.2 SSD(M.2) Installation................... 6 3.3 WIFI(M.2) Installation .................
  • Page 4 4.2.3 Wake Configuration ................16 4.2.4 Trusted Computing ................17 4.2.5 IT8625 Super IO Configuration............19 4.2.6 System Devices Configuration............21 4.3 Security ....................22 4.4 Boot Menu ....................24 4.5 Save & Exit ....................26 4.6 MEBx ......................27 5.

  • Page 5: Product Introduction

    ® ® Based on Intel Alder Lake platform, Giada DF612 is a fanless model featured with Intel Core processors. With one DP and two HDMI display outputs, the DP port supports max 8K resolution and the two HDMI supports max 4K resolution. The player is suitable to be applied in high-end Digital signage, Kiosk etc.

  • Page 6: Hardware Specifications

    2.2 Hardware Specifications DF612 DF612 Intel ® Core i3-1215U/i5-1235U/i7-1255U E-Core Frequency 3.30 GHz/3.30 GHz/3.50 GHz Processor P-Core Frequency 4.40 GHz/4.40 GHz/4.70 GHz BIOS AMI Source Code Chipset Type DDR4-32400MHz Memory Socket 2 x SO-DIMM Max Capacity 64 GB Intel ®...

  • Page 7: Accessories Installation Steps

    3. Accessories Installation Steps For safety reasons, please ensure that the power cord is disconnected before opening the case. How to open the top cover and bottom cover Unscrew the four screws and then remove the bottom cover. SO-DIMM #1 and #2, M.2 for SSD slot are at the right side.

  • Page 8: Ssd(M.2) Installation

    3.2 SSD (M.2) Installation 1. Plug the M-Key M.2 (2280) SSD (PCIe protocol) into the appropriate slot. 2. Secure the module to the carrier by tightening up the screw. 3.3 WIFI (M.2) Installation 1. Plug the E-Key (2230) WIFI module into the appropriate slot. 2.

  • Page 9: Sim Card Installation

    3.4 SIM Card Installation This product supports standard SIM card with the size of 25mm × 15mm. 1. [Open] the SIM card holder and pull it up. 2. Insert the SIM card. 3. [Lock] the card holder. - 7 -...

  • Page 10: 4G/5G Installation

    3.5 3G/4G Installation  3G/4G Installation Default SMA connector and cable is for WIFI. Please change to 3G/4G SMA connector and cable. 1. Plug the 3G/4G module B-Key M.2 (3042) into the appropriate slot. 2. Secure the module to the carrier by tightening up the screw. 3.

  • Page 11: Bios Setup

    The descriptions relating to BIOS setup in this Manual is for reference only since the BIOS version of the product might be upgraded. Giada provides no guarantee that all the contents in this Manual are consistent with the information you acquired.

  • Page 12: Function Keys Definitions

    B. Function Keys definitions Hot Key Description ↑ (Up key) Move to the previous item ↓ (Down key) Move to the next item ← (Left key) Move to the left item → (Right key) Move to the right item Exit the current interface Page Up Change the setup state, or add the values Page Down...
  • Page 13 Fig 1 1) Main (standard CMOS setup) This item is used for setting the date and time. 2) Advanced (advanced BIOS setup) This item is used for setting the advanced functions provided by BIOS, such as specifications of PCIe facilities, CPU, HDD, etc.

  • Page 14: Main (Standard Cmos) Setup

    4.1 Main (Standard CMOS setting) 1) System time (hh:mm:ss) Use this item to set the time for the computer, with the format as “HH / MM / SS”. 2) System date (mm:dd:yy) Use this item to set the date for the computer, with the format as “week, MM / DD / YY”. - 12 -...

  • Page 15: Advanced Bios Setup

    4.2 Advanced (Advanced BIOS setup) - 13 -...

  • Page 16: Acpi Settings

    4.2.1 ACPI Settings ACPI Menu Description  Select the highest ACPI sleep state the system will enter ACPI Sleep State when the SUSPEND button is pressed. JIEHE Active Hardware Control (JAHC) management system includes both har ware Micro Control Unit (MCU) and software (JAHC Technology Manager). JAHC Enable ...
  • Page 17 CPU Configuration Menu Description Select the performance state that the BIOS will set starting Boot performance mode from reset vector. Intel Virtualization Technology is enabled by default. User can Intel (VMX) Virtualization Technology enable and disable the Intel Virtualization Technology function. ®...

  • Page 18: Wake Configuration

    4.2.3 Wake Configuration - 16 -...

  • Page 19: Trusted Computing

    WAKE Configuration Options Description WAKE Configuration Wake On LAN Function. Wake Up On RTL LAN  Disabled: The WOL is disabled by default. Enabled.  Wake On LAN Function. Wake Up On INTEL LAN  Disabled: The WOL is disabled by default. ...
  • Page 20 TPM20 Device Found Description Firmware Version  TPM FW version is 7.63 Vendor  The vendor is IFX  Disabled Security Device Support  Enabled. This item is enabled by default. Disabled. This item is Enabled by default  SHA256 PCR Bank ...

  • Page 21: It8625 Super Io Configuration

    4.2.5 IT8625 Super IO Configuration - 19 -...
  • Page 22 Serial Port Description Serial Port 1 Configuration Device Settings Set parameters of serial port Select an optimal settings for super IO device. Auto IO=3F8h; IRQ=4; Change Settings IO=3F8h; IRQ=3,4,5,6,7,9,11,12; IO=2F8h; IRQ=3,4,5,6,7,9,11,12; IO=3E8h; IRQ=3,4,5,6,7,9,11,12; IO=2E8h; IRQ=3,4,5,6,7,9,11,12; Serial Port 2 Configuration Select an optimal settings for super IO device. Auto IO=2F8h;...

  • Page 23: System Devices Configuration

    4.2.6 System Devices Configuration - 21 -...

  • Page 24: Security

    Menu Description The SATA controller is enabled by default. SATA Controller(s)  Enabled  Disabled. SATA Mode Selection  Determines how SATA controller(s) operate.  Control Detection of the HD-Audio device. HD Audio  HAD will be unconditionally disabled when disabled. ...
  • Page 25 If this function is selected, the following information will appear: Enter New Password hhhhhh Then enter a password which is no more than eight characters and press <Enter>. BIOS will require to enter the password again. Once you enter it again, BIOS will save the set password. Once the password item is enabled, you will be required to enter the password every time before the system entering to the setup program of BIOS.

  • Page 26: Boot Menu

    Boot Sector Virus Protection. This item is used for setting the alarm function in case of virus attack in IDE disk sector. If this item is set as Enable and some program writes information in the sector, BIOS will display alarm information on the screen and buzz. Security Item Description System Mode Configuration...
  • Page 27 Boot Item Description Boot Configuration This item is use to set the waiting time of entering the operation system. During the BIOS post, if user doesn't press the Setup Prompt Timeout keyboard, it won't respond unless you reboot the BIOS. The Setup Prompt Timeout is 3s by default.

  • Page 28: Save & Exit

    4.5 Save & Exit Save Exit Item Description Save Options Save Changes and Reset Save all changes and exit Discard Changes and Exit Give up the settings and exit. Restore Defaults Recover it to default. Boot Override Whole Boot devices - 26 -...

  • Page 29: Mebx

    4.6 MEBx The MEBx option is used for VPRO.The MEBx option can be enable and disable if the CPU supports VPRO. 5. JAHC Introduction JIEHE Active Hardware Control (JAHC) management system includes both hardware Micro Control Unit (MCU) and software (JAHC Technology Manager). It can support following functions: 1.
  • Page 30 a. Turn on the player and continually press ‘Del’, then it can enter BIOS setup menu. b. Select Advanced- > ACPI Setting- > JAHC Enable- > Enabled. - 28 -...
  • Page 31 FIG (1) c. Press ‘F10’ to save change & exit after select “JAHC enabled” option. - 29 -...

  • Page 32: Jahc Software

    Supported operation system: Windows 10 64bit, Linux 64bit. How to install JAHC software: Please download the JAHC.EXE from Giada website: www.giadatech.com, then follow up below steps: Double-click the JAHC.EXE file, the setup wizard will pop up, select destination location and click [Next] button to continue the installation.
  • Page 33 Select [Create a desktop shortcut] and click [Next] button. d. Click [Install] button to continue the installation. - 31 -...
  • Page 34 Click [Finish] button to finish the installation. You can select [Launch JAHC] to run the software automatically after finishing the installation. - 32 -...

  • Page 35: Startup And Shutdown Time Setup

    Notice: The JAHC will be added into boot item when it is installed. It will start up when system boot up. 5.2.3 Startup & shutdown time setup After install the JAHC software, double click the JAHC icon on taskbar and the setup menu will pop One week as a circle, maximum 3 schedules per day.
  • Page 36 After finishing the setup, the menu window will notice the resume time and shutdown time. Caution: If the interval from shutdown time to next resume time is less than 3 minutes, the system will not shut down Click [Cancel] button to restore the time settings and cancel the shutdown status. Click [X] button to hide the menu.

  • Page 37: Watchdog Api And Instruction

    You can click [Delay] button and set up the time to delay the shutdown or click [Cancel] button to cancel the shutdown. 5.3 Watchdog API and instruction Please contact Giada FAE (email:support@giadatech.com) for watchdog API software and instruction. - 35 -...
  • Page 38 - 36 -...
