Summary of Contents for Giada VM27

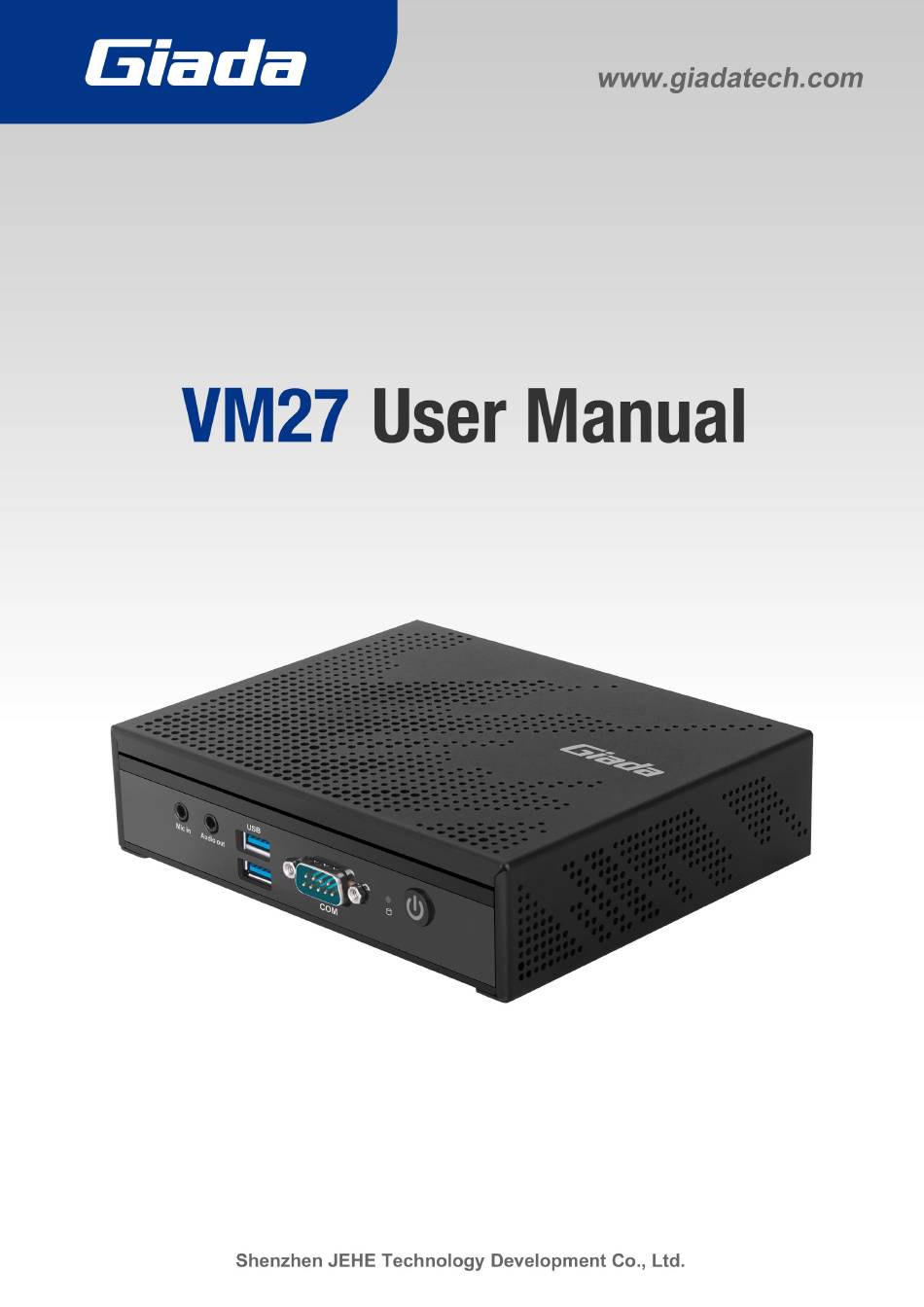

  • Page 1 - 1 -...
  • Page 2 The copyright of this manual belongs to Shenzhen JEHE Technology Development Co., Ltd. (Giada, JEHE’s global brand) and all rights are reserved. The company reserves the right to change this manual at any time without notification. Specifications here are for reference only, please take the real product as standard.

  • Page 3: Table Of Contents

    Table of Contents 1 Product Introduction....................1 2 Interface Description and Specifications..............1 Interface Description..................1 Hardware Specifications................2 3 Accessories Installation Steps..................3 How to open the top cover and bottom cover..........3 WIFI (M.2) Installation..................4 MSATA Installation..................5 4 BIOS Setup......................... 6 Main (Standard CMOS setting)..............
  • Page 4 Boot Menu....................23 Save & Exit....................24 5 JAHC Introduction....................26 How to set up Auto power on function............26 JAHC software..................... 28 5.2.1 JAHC software functions............... 28 5.2.2 JAHC software installation guide............28 5.2.3 Startup & shutdown time setup..............32 Watchdog API and instruction..............34...

  • Page 5: Product Introduction

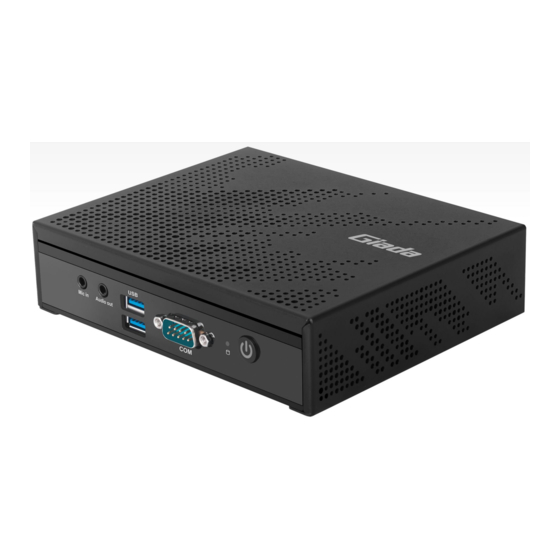

    1 Product Introduction Based on Intel ® Elkhart Lake, Giada VM27 supports Pentium ® quad-core N6415 and Celeron ® dual-core N6210 processors, adopts fanless design, onboard 4GB (8GB as option) dual-channel LPDDR4 memory and onboard 64GB (32GB as option) eMMC5.1 storage. It features with vivid dual 1080p video or one 4K video decoding.

  • Page 6: Hardware Specifications

    2.2 Hardware Specifications VM27 VM27-N621042E6G-GIA VM27-N641542E6G-GIA ® ® ® ® Intel Celeron N6210 processor Intel Pentium N6415 processor Processor Frequency 2.60 GHz 3.00 GHz BIOS AMI Source Code Chipset Type LPDDR4-2666 MHz Memory Socket Onboard Capacity 4GB onboard, (Optional: 8GB) Intel ®...

  • Page 7: Accessories Installation Steps

    3 Accessories Installation Steps For safety reasons, please ensure that the power cord is disconnected before opening the case. 3.1 How to open the top cover and bottom cover 1. Unscrew the four screws from the bottom cover and take off the top cover. Unscrew the four screws and remove the bottom cover.

  • Page 8: Wifi (M.2) Installation

    3.2 WIFI (M.2) Installation 1. Plug the WIFI module into the appropriate slot. 2. Secure the module to the carrier by tightening up the screw. 3. Connect the black cables to the WIFI module.

  • Page 9: Msata Installation

    3.3 MSATA Installation 1. Plug the SSD (MSATA) module into the mini PCIE slot. 2. Secure the module to the carrier by tightening up the screw.

  • Page 10: Bios Setup

    The descriptions relating to BIOS setup in this Manual is for reference only since the BIOS version of the product might be upgraded. Giada provides no guarantee that all the contents in this Manual are consistent with the information you acquired.
  • Page 11 B. Function Keys definitions Hot Key Description ↑ (Up key) Move to the previous item ↓ (Down key) Move to the next item ← (Left key) Move to the left item → (Right key) Move to the right item Exit the current interface Page Up Change the setup state, or add the values Page Down...
  • Page 12 Fig 1 1) Main (standard CMOS setup) This item is used for setting the date and time. 2) Advanced (advanced BIOS setup) This item is used for setting the advanced functions provided by BIOS, such as specifications of PCIE facilities, CPU, HDD, etc.

  • Page 13: Main (Standard Cmos Setting)

    4.1 Main (Standard CMOS setting) 1) System time (hh:mm:ss) Use this item to set the time for the computer, with the format as “HH / MM / SS”. 2) System date (mm:dd:yy) Use this item to set the date for the computer, with the format as “week, MM / DD / YY”.

  • Page 14: Advanced (Advanced Bios Setup)

    4.2 Advanced (Advanced BIOS setup) 4.2.1 ACPI Settings...
  • Page 15 ACPI Menu Description Select the highest ACPI sleep state the system will enter when the ACPI Sleep State SUSPEND button is pressed.. Enables or disables system ability to Hibernate (OS/S4 Sleep). This Enable Hibernation option may be not effective with some OS. State After G3 means after restore power supply.

  • Page 16: Cpu Configuration

    4.2.2 CPU Configuration CPU Configuration Menu Description CPU Configuration Max Non-Turbo Performance: the best performance. Boot performance mode Max Battery. Turbo performance. Intel Virtualization Technology is enabled by default. User can Intel (VMX) Virtualization Technology enable and disable the Intel Virtualization Technology function. Intel SpeedStep Technology dynamically increases the processor's ®...

  • Page 17: Trusted Computing

    Technology uses hardware-controlled P-states to deliver dramatically quicker responsiveness with single-threaded, transient (short duration) workloads, such as web browsing, by allowing the processor to more quickly select its best operating frequency and voltage for optimal performance and power efficiency. C states The C-State function is disabled by default.
  • Page 18 Options Description Trusted Computing TPM20 Device Found Firmware Version: It shows the information of TPM device. Vendor: Disable or Enable the SHA-1 PCR Bank. The option is disabled by SHA-1 PCR Bank default. Disable or Enable the SHA256 PCR Bank. The option is enabled by SHA256 PCR Bank default.

  • Page 19: Hardware Monitor

    Endorsement Hierarchy Disable or Enable the Endorsement Hierarchy. TPM2.0 UEFI Options, TCG_1_2 or TCG_2. The version is TCG_2 TPM2.0 UEFI spec version by default. Physical Presence Spec Version You can choose 1.2 or 1.3. The version is 1.3 by default. TPM 20 Interface Type TPM2.0 Interface Type is CRB by default.

  • Page 20: Serial Port 1 Configuration

    Super IO Hardware Monitor Menu Description System temperature2 The Current System temperature2. 4.2.5 Serial Port 1 Configuration...
  • Page 21 Menu Description Serial Port 1 Configuration The serial port is enabled by default. Serial Port Enabled Disabled. User can set the serial port by change settings option. Auto IO=3F8H ； IRQ=4 ； IO=3F8H ； IRQ=3 ， 4 ， 5 ， 6 ， 7 ， 9 ， 10 ， 11 ， 12 ； Change settings IO=2F8H ；...

  • Page 22: Oem Configuration

    4.2.6 OEM Configuration OEM Configuration menu Description JEHE Active Hardware Control (JAHC) management system includes both hardware Micro Control Unit (MCU) and software (JAHC Technology Manager). JAHC Switch Disabled: The JAHC is disable by default. Enabled.

  • Page 23: Oem Configuration

    4.2.7 OEM Configuration The OEM ME Configuration Menu Description OEM ME Configuration The user can enable and disable ME control. During the reflash ME Control BIOS process, it protects the ME when the ME control is enabled.

  • Page 24: System Devices Configuration

    4.2.8 System Devices Configuration...
  • Page 25 System Devices Configuration Description menu Mass storage device emulation type. “AUTO” enumerates devices less SDIO Configuration than 530MB as floppies. Forced FDD option can be used to force HDD formatted drive to boot as FDD. SATA And RST Configuration Enable and disable SATA Device. Network Stack Configuration Network Stack Configuration Select the performance state that the BIOS will set before OS handoff.

  • Page 26: Security Boot

    4.3 Security Boot If this function is selected, the following information will appear: Enter New Password hhhhhh Then enter a password which is no more than eight characters and press <Enter>. BIOS will require to enter the password again. Once you enter it again, BIOS will save the set password. Once the password item is enabled, you will be required to enter the password every time before the system entering to the setup program of BIOS.

  • Page 27: Boot Menu

    4.4 Boot Menu Boot Item Description Boot Configuration This item is use to set the wait time of entering the operation system. During the BIOS post, if user doesn't press the keyboard, it won't Setup Prompt Timeout respond unless you reboot the BIOS. The Setup Prompt Timeout is 3s by default.

  • Page 28: Save & Exit

    Boot Item Description The second boot device. If BIOS doesn't detect the second boot device, it Boot Option #2 will check the next boot device. The third boot device. If BIOS doesn't detect the third boot Boot Option #3 device, it will check the third next device. fourth boot device.
  • Page 29 Save Exit Item Description Save Options Save Changes and Reset Save all changes and exit Discard Changes and Reset Give up the settings and exit. Restore Defaults Recover it to default. Boot Override Whole Boot devices...

  • Page 30: Jahc Introduction

    5 JAHC Introduction JEHE Active Hardware Control (JAHC) management system includes both hardware Micro Control Unit (MCU) and software (JAHC Technology Manager). It can support following functions: 1. Automatically boot up when power on. It is controlled by the Micro Control Unit (MCU) chip. 2.
  • Page 31 c. Press ‘F10’ to save change & exit after select “JAHC enabled” option...

  • Page 32: Jahc Software

    5.2.2 JAHC software installation guide System Requirements: a. Giada player with JAHC function. b. Switch the JAHC button to “on” or enable it in BIOS if there is no physical button on the chassis. c. Supported operation system: Windows 10 64bit, Windows 11 64bit, Linux 64bit.
  • Page 33 How to install JAHC software: Please download the JAHC.EXE from Giada website: www.giadatech.com, then follow up below steps: Double-click the JAHC.EXE file, the setup wizard will pop up, select destination location and click [Next] button to continue the installation. b. Click [Next] button to continue the installation.
  • Page 34 Select [Create a desktop shortcut] and click [Next] button. d. Click [Install] button to continue the installation.
  • Page 35 Click [Finish] button to finish the installation. You can select [Launch JAHC] to run the software automatically after finishing the installation.

  • Page 36: Startup & Shutdown Time Setup

    Notice: The JAHC will be added into boot item when it is installed. It will start up when system boot up. 5.2.3 Startup & shutdown time setup After install the JAHC software, double click the JAHC icon on taskbar and the setup menu will pop...
  • Page 37 One week as a circle, maximum 3 schedules per day. Select each schedule to set up the resume time and shutdown time. Click [Confirm] button to launch the schedule. After finishing the setup, the menu window will notice the resume time and shutdown time. Caution: If the interval from shutdown time to next resume time is less than 3 minutes, the system will not shut down Click [Cancel] button to restore the time settings and cancel the shutdown status.

  • Page 38: Watchdog Api And Instruction

    You can double click the message window and a new dialog box will pop up. You can click [Delay] button and set up the time to delay the shutdown or click [Cancel] button to cancel the shutdown. 5.3 Watchdog API and instruction Please contact Giada FAE (email:support@giadatech.com) for watchdog API software and instruction.

This manual is also suitable for:

Vm27-n621042e6g-giaVm27-n641542e6g-gia
