Summary of Contents for Giada VM23

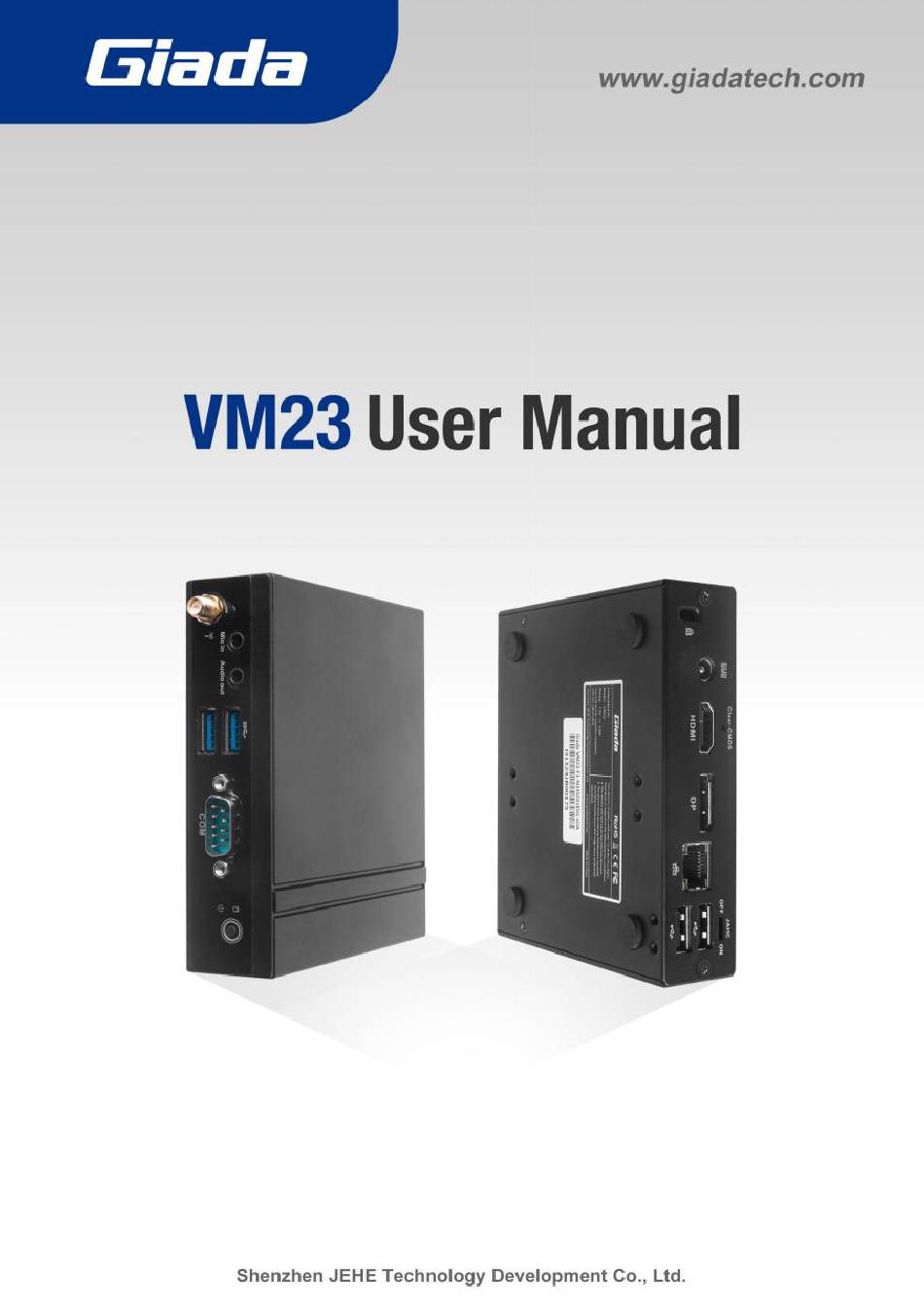

  • Page 1 - 1 -...
  • Page 2 The copyright of this manual belongs to Shenzhen JEHE Technology Development Co., Ltd. (Giada, JEHE’s global brand) and all rights are reserved. The company reserves the right to change this manual at any time without notification. Specifications here are for reference only, please take the real product as standard.

  • Page 3: Table Of Contents

    Table of Contents 1. Product Introduction ..................5 2. Interface Description and Hardware Specifications ........5 2.1 Interface Description ..................5 2.2 Hardware Specifications ................6 3. Accessories Installation Steps ................7 3.1 WIFI(M.2) Installation ................... 7 3.2 MSATA Installation ..................8 4.
  • Page 4 4.2.9 NVME Configuration ................24 4.2.10 SDIO Configuration ................25 4.3 Chipset ......................26 4.3.1 North Bridge ................... 26 4.3.2 South Bridge ................... 27 4.3.3 South Cluster Configuration ..............28 4.3.3.1 SATA Drivers Configuration ............28 4.3.3.2 Miscellaneous Configuration ............30 4.4 Security .....................

  • Page 5: Product Introduction

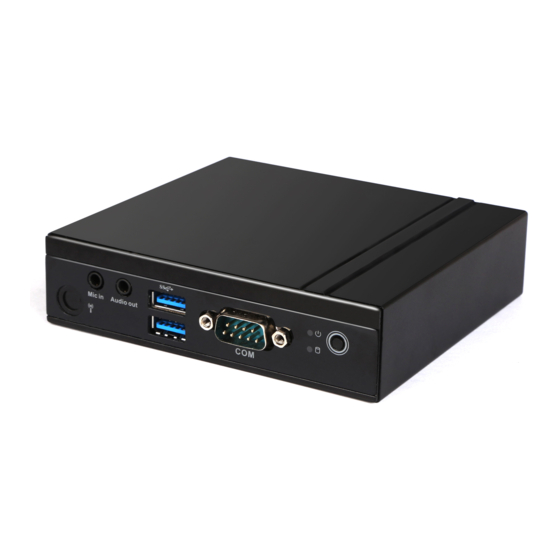

    Based on Intel ® Apollo Lake, Giada VM23 adopts fanless design, onboard 2G or 4G memory, onboard Emmc storage. With one DP and one HDMI display outputs, it supports 4K resolution. The player is suitable to be applied in entry-level or middle range digital signage applications.

  • Page 6: Hardware Specifications

    2.2 Hardware Specifications VM23 VM23-F1-N335031E5G-GIA VM23-F2-N345032E5G-GIA Intel ® Celeron N3350/N3450 Processor Frequency 1.10GHz (Up to 2.40GHz)/1.10GHz (Up to 2.20GHz) BIOS AMI Source Code Chipset Type DDR3L-1866MHz Memory Socket Onboard Capacity 2GB/4GB Intel ® HD Graphic engine Graphics Graphic Engine Direct X12.0, OpenGL4.3, OpenCL2.0 1 x DP（Max.4096 x 2304@60Hz）...

  • Page 7: Accessories Installation Steps

    3. Accessories Installation Steps For safety reasons, please ensure that the power cord is disconnected before opening the case. How to open the top cover and bottom cover Unscrew the four screws and remove the bottom cover. (M.2 slot for WIFI and mini PCIE slot for MSATA are on this side) 3.1 WIFI (M.2) Installation 1.

  • Page 8: Msata Installation

    3.2 MSATA Installation 1. Plug the SSD (MSATA) module into the mini PCIE slot. 2. Secure the module to the carrier by tightening up the screw. - 8 -...

  • Page 9: Bios Setup

    The descriptions relating to BIOS setup in this Manual is for reference only since the BIOS version of the product might be upgraded. Giada provides no guarantee that all the contents in this Manual are consistent with the information you acquired.
  • Page 10 B. Function Keys definitions Hot Key Description ↑ (Up key) Move to the previous item ↓ (Down key) Move to the next item ← (Left key) Move to the left item → (Right key) Move to the right item Exit the current interface Page Up Change the setup state, or add the values Page Down...

  • Page 11: Main(Standard Cmos) Setup

    Fig 1 1) Main (standard CMOS setup) This item is used for setting the date and time. 2) Advanced (advanced BIOS setup) This item is used for setting the advanced functions provided by BIOS, such as specifications of PCIE facilities, CPU, HDD, etc.
  • Page 12 4.1 Main (Standard CMOS setting) 1) System time (hh:mm:ss) Use this item to set the time for the computer, with the format as “HH / MM / SS”. 2) System date (mm:dd:yy) Use this item to set the date for the computer, with the format as “week, MM / DD / YY”. - 12 -...

  • Page 13: Advanced (Advanced Bios Setup)

    4.2 Advanced (Advanced BIOS setup) 4.2.1Trusted Computing - 13 -...

  • Page 14: Acpi Settings

    4.2.2 ACPI Settings ACPI Menu Description Enable ACPI Auto Configuration Enables or Disables BIOS ACPI auto configuration. Enables or disables system ability to Hibernate (OS/S4 Sleep). Enable Hibernation This option may be not effective with some OS. Select the highest ACPI sleep state the system will enter when the ACPI Sleep State SUSPEND button is pressed.

  • Page 15: Super Io Hardware Monitor

    4.2.3 Super IO Hardware Monitor Super IO Hardware Monitor Menu Description PC Health Monitor Status PC Health Monitor Status System temperature2 The Current System temperature2. - 15 -...

  • Page 16: Wake Configuration

    4.2.4 Wake Configuration Wake Configuration Menu Description JEHE Active Hardware Control (JAHC) management system includes both hardware Micro Control Unit (MCU) and software (JAHC JAHC Switch Technology Manager). Disabled: The JAHC is disable by default.   Enabled. Enable or disable System wake on alarm event. Select FixedTime, system will wake on the hr::min::sec specified.

  • Page 17: Cpu Configuration

    4.2.5 CPU Configuration CPU Configuration Menu Description Socket 0 CPU Information Socket specific CPU information. CPU Power Management CPU Power Management Intel Virtualization Technology is enabled by Intel Virtualization Technology default. User can enable and disable the Intel Virtualization Technology function. VT-d Intel ®...

  • Page 18: Socket 0 Cpu Information

    CPU Configuration Menu Description The user can set the CPU P-States by P-STATE Coordination.  HW_ALL. Enable hardware to support P-STATES. This item is enabled by default. P-STATE Coordination SW_ALL. Enable software to support  P-STATES  SW_ANY. Disabled P-STATE Function. This item is CPU digital thermal sensor.

  • Page 19: Socket 0 Cpu Information

    4.2.5.2 CPU Power Management CPU Configuration menu Description CPU Power Management EIST Enable/Disable Intel SpeedStep. Turbo Mode Turbo Mode Select the performance state that the BIOS will set before OS Boot performance mode handoff. C-states Enable/Disable Intel C States. Enable/Disable when enabled, PU will switch to minimum speed Enhanced C-states when all cores entre C-State.

  • Page 20: Ami Graphic Output Protocol Policy

    4.2.6 AMI Graphic Output Protocol Policy Graphic Output Protocol Policy Menu Description User select monitor output by graphic Output Select output protocol. - 20 -...

  • Page 21: Network Stack Configuration

    4.2.7 Network Stack Configuration - 21 -...
  • Page 22 Network stack Menu Description This item can enable and disable UEFI network Network Stack stack. The user can enable or disable IPV4 PXE Boot support. Ipv4 PXE Support  Enabled.  Disabled.IPV4 PXE support is disabled by default. The user can enable and disable IPV4 PXE Boot support.

  • Page 23: Csm Configuration

    4.2.8 CSM Configuration Advanced Menu Description compatibility support Module Configuration Enabled: the CSM support function is enabled by default.  CSM Support  Disabled.  UPON REQUEST: GA20 can be disabled using BIOS services. GateA20 Active  ALWAYS: do not allow to disable GA20; this option is useful when any RT code is executed above 1MB.

  • Page 24: Nvme Configuration

    Advanced Menu Description Network ROM Boot. Do not launch: Do not Boot.  Network  UEFI: It will support UEFI mode network ROM.  Legacy: It will support legacy mode network ROM. Storage ROM Boot.  Do not launch: Do not Boot. Storage ...

  • Page 25: Sdio Configuration

    4.2.10 SDIO Configuration Graphic Output Protocol Policy Menu Description  Auto option: Access SD device in DMA mode if controller supports it, otherwise in PIO mode. Output Select DMA Option: Access SD device in DMA mode.   PIO Option: Access SD device In PIO mode. - 25 -...

  • Page 26: Chipset

    4.3 Chipset 4.3.1 North Bridge - 26 -...

  • Page 27: South Bridge

    Chipset menu Description North Bridge Configuration Maximum value of TOLUD(Top of Low Usable Dram) for Max TOLUD  2 GB. The value TOLUD is 2GB by default. Enable/Disable above 4GB momoryMappDIO BIOS Above 4GB MMIO BIOS assignment. This is disabled automatically when aperture assignment size is set to 2048MB.

  • Page 28: South Cluster Configuration

    Chipset menu Description PCI CLOCK RUN Enables CLKRUN# logic to stop PCI clocks. 4.3.3 South Cluster Configuration 4.3.3.1 SATA Drivers Configuration - 28 -...
  • Page 29 Options Description SATA Drivers Configuration This item can enable or disable the chipset SATA controller. The Chipset SATA chipset SATA controller support the 2 black internal SATA ports (up to 3Gb/s supported per port). The user can determine how SATA controller(s) operate. It can SATA Mode Selection support AHCI and RAD mode.

  • Page 30: Miscellaneous Configuration

    4.3.3.2 Miscellaneous Configuration Options Description SATA Drivers Configuration State After G3 means after restore power supply.  S5 State (Default): If set it as S5 State, it means the system will remain shutdown state State After G3  S0 State: If set it as S0 State, it means the system will be power on automatically.

  • Page 31: Security

    4.4 Security If this function is selected, the following information will appear: Enter New Password hhhhhh Then enter a password which is no more than eight characters and press <Enter>. BIOS will require to enter the password again. Once you enter it again, BIOS will save the set password. Once the password item is enabled, you will be required to enter the password every time before the system entering to the setup program of BIOS.

  • Page 32: Boot Menu

    4.5 Boot Menu Boot Item Description Boot Configuration This item is use to set the wait time of entering the operation system. During the BIOS post, if user doesn't press the keyboard, Setup Prompt Timeout it won't respond unless you reboot the BIOS. The Setup Prompt Timeout is 3s by default.

  • Page 33: Save & Exit

    Boot Item Description You can set and manage legacy Hard disk device after enabling Hard Drive BBS Priorities this option. 4.6 Save & Exit Save Exit Item Description Save Options Save Changes and Reset Save all changes and exit Discard Changes and Reset Give up the settings and exit.

  • Page 34: Jahc Introduction

    5. JAHC Introduction JEHE Active Hardware Control (JAHC) management system includes both hardware Micro Control Unit (MCU) and software (JAHC Technology Manager). It can support following functions: 1. Automatically boot up when power on. It is controlled by the Micro Control Unit (MCU) chip. 2.
  • Page 35 b. Select Advanced- >Wake Configuration- > JAHC Enable- > Enabled. - 35 -...

  • Page 36: Jahc Software

    Supported operation system: Windows 10 64bit, Linux 64bit. How to install JAHC software: Please download the JAHC.EXE from Giada website: www.giadatech.com, then follow up below steps: Double-click the JAHC.EXE file, the setup wizard will pop up, select destination location and click [Next] button to continue the installation.
  • Page 37 b. Click [Next] button to continue the installation. - 37 -...
  • Page 38 Select [Create a desktop shortcut] and click [Next] button. d. Click [Install] button to continue the installation. - 38 -...
  • Page 39 Click [Finish] button to finish the installation. You can select [Launch JAHC] to run the software automatically after finishing the installation. Notice: The JAHC will be added into boot item when it is installed. It will start up when system boot up. - 39 -...

  • Page 40: Startup & Shutdown Time Setup

    5.2.3 Startup & shutdown time setup After install the JAHC software, double click the JAHC icon on taskbar and the setup menu will pop One week as a circle, maximum 3 schedules per day. Select each schedule to set up the resume time and shutdown time.

  • Page 41: Watchdog Api And Instruction

    You can click [Delay] button and set up the time to delay the shutdown or click [Cancel] button to cancel the shutdown. 5.3 Watchdog API and instruction Please contact Giada FAE (email:support@giadatech.com) for watchdog API software and instruction. - 41 -...
  • Page 42 - 42 -...
